Connecting Test Box [JA1]

Connecting Test Box





- Ignition off
- Disconnect ABS control module.

Check control module and control module connector for:
- Male pins and female pins are intact and firmly in place (cannot be pushed in).
- Leads to male pins are firmly connected to pins.

Check pins relevant to the DTC/symptoms with particular care:

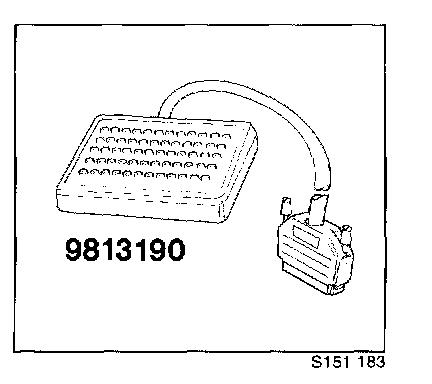

- Connect adapter 981 3196 to control module connector (towards leads) and connect test box 981 3190 to adapter.
- Disconnect control module.

Now continue with Checking ground point JA2. Checking Ground Point [JA2]
