Operation CHARM
: Car repair manuals for everyone.
Home
>>
Volvo
>>
1995
>>
850 L5-2.4L VIN 55 B5254S
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Heater
Heater
Wiring Diagram

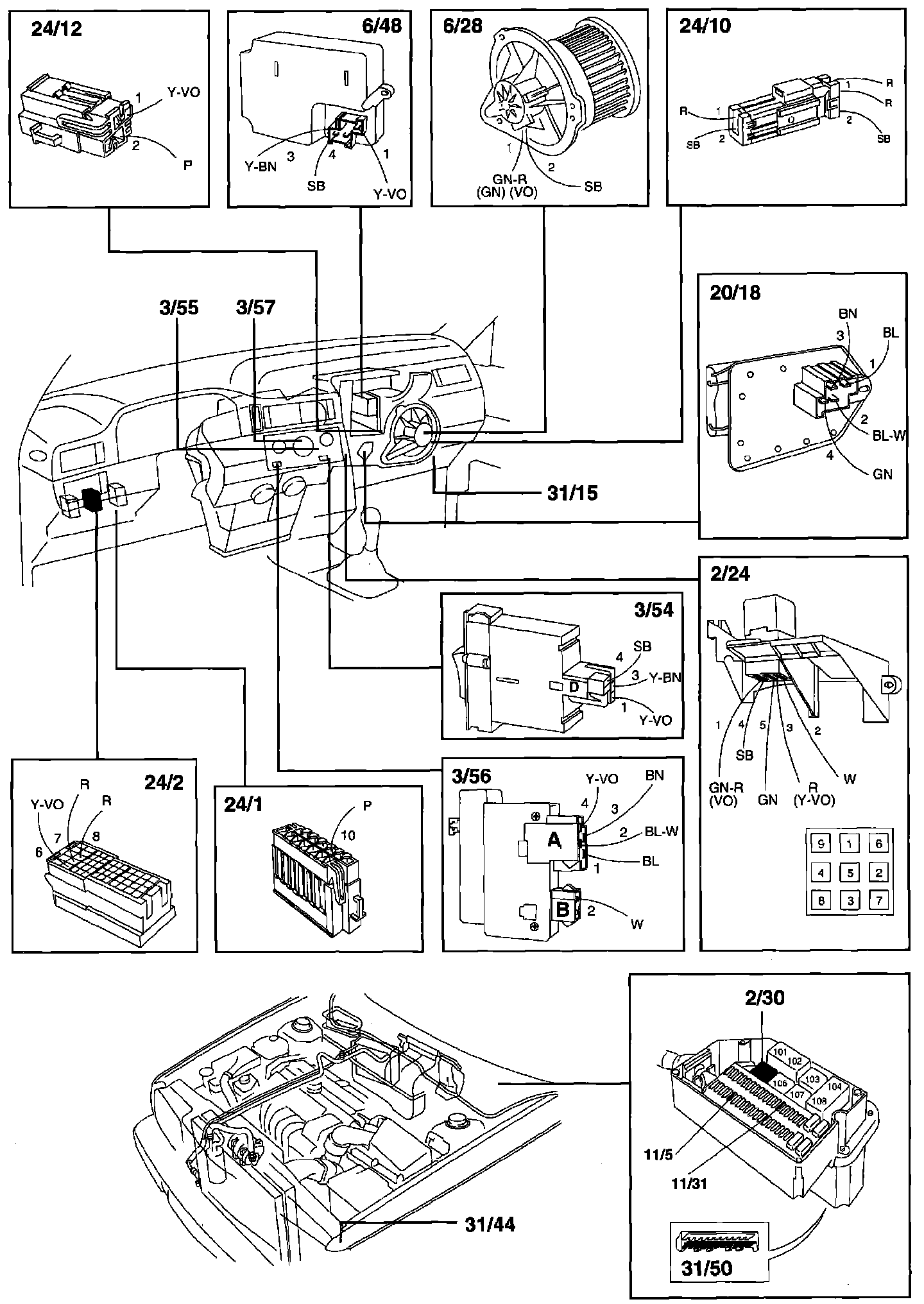

Component Location

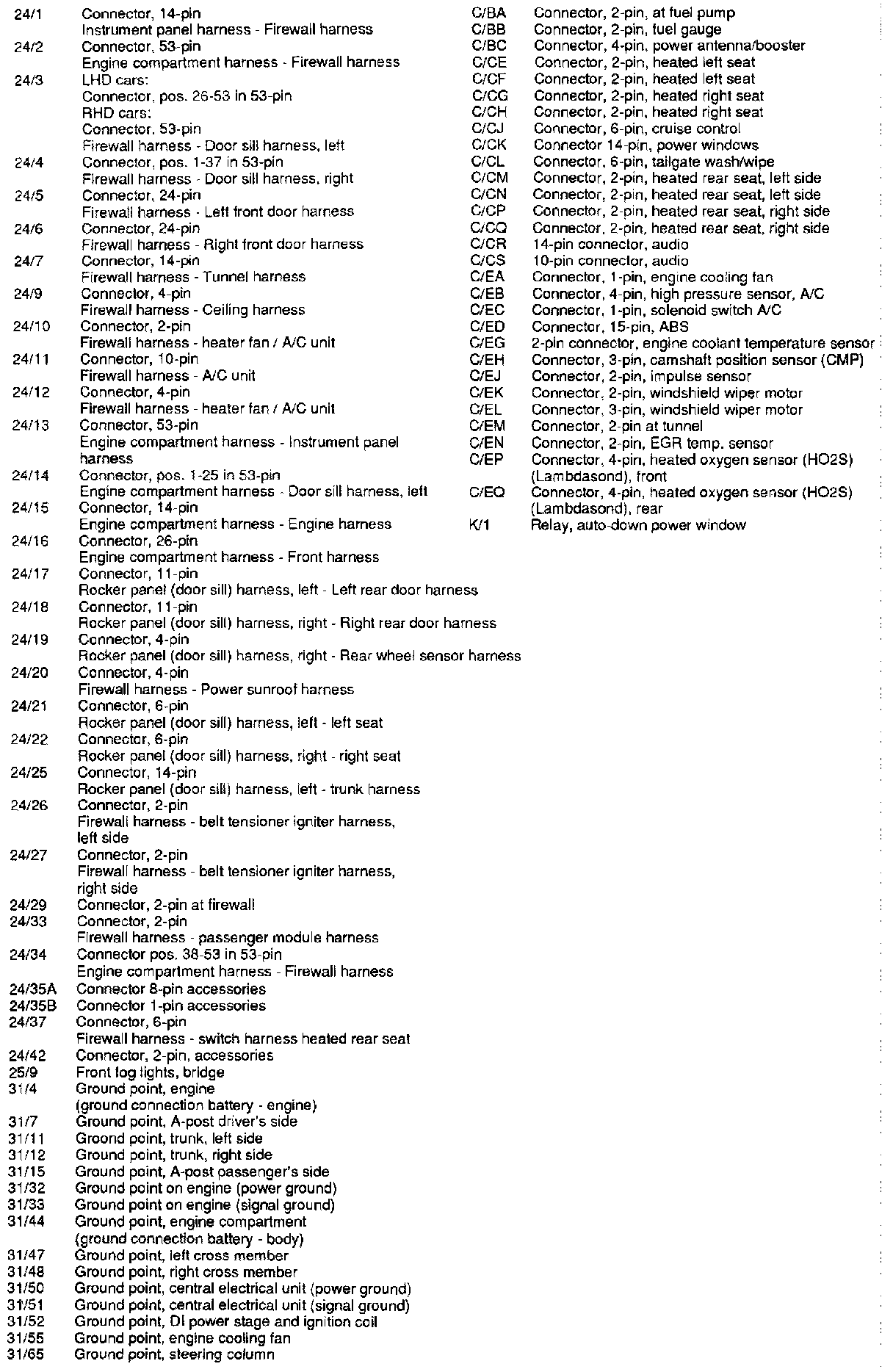

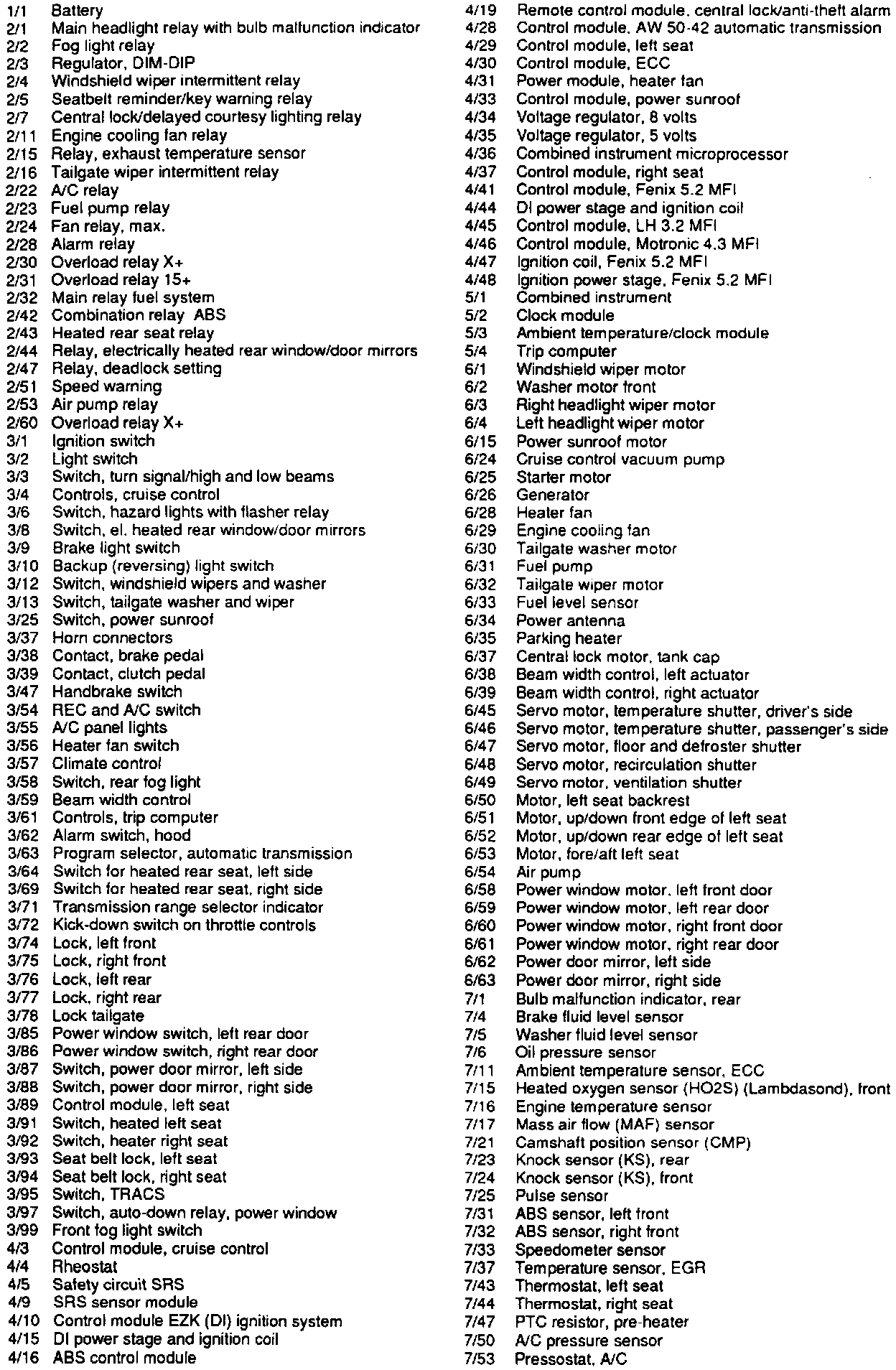

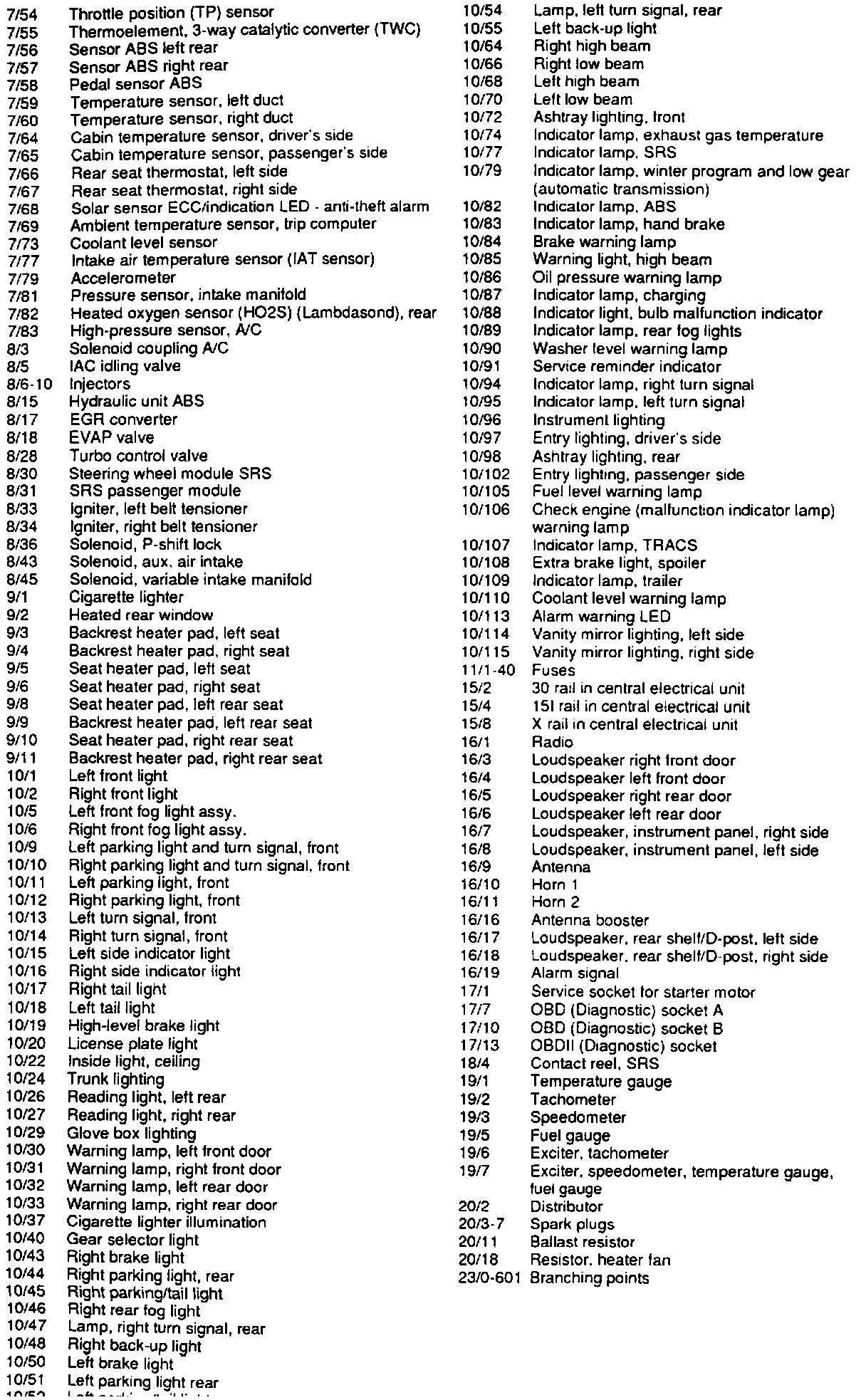

Component I.D. List
