Instrumentation and Controls Lighting

Instrument And Control Lighting:

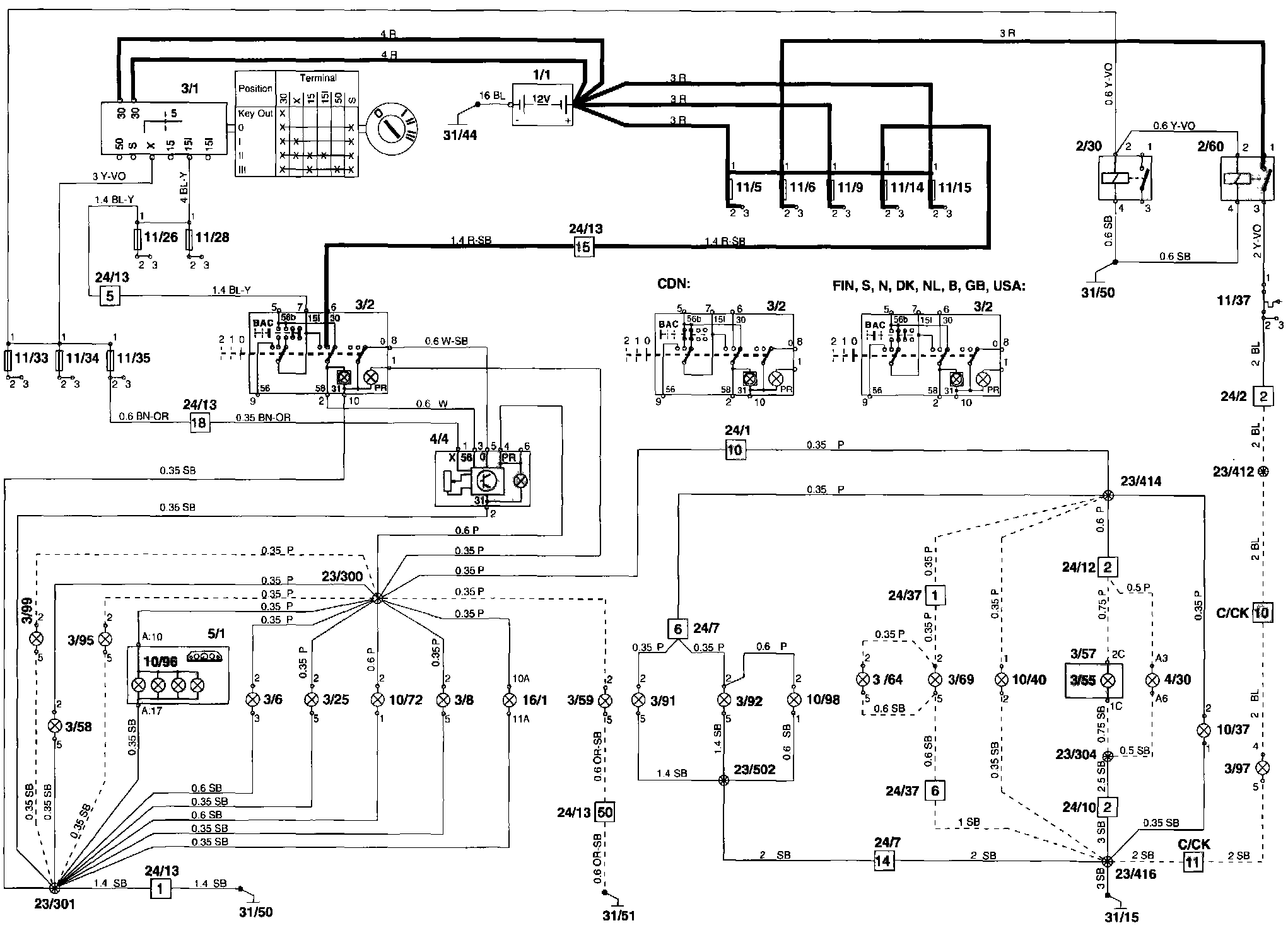

Wiring Diagram




Component Location

Component I.D. List
C/CK Connector 14-pin, power windows
2/30 Overload relay X+
2/60 Overload relay X+
3/2 Light switch
3/6 Switch, hazard lights with flasher relay
3/8 Switch, el. heated rear window/door mirrors
3/25 Switch, power sunroof
3/55 A/C panel lights
3/58 Switch, rear fog light
3/59 Beam width control
3/64 Switch for heated rear seat, left side
3/69 Switch for heated rear seat, right side
3/91 Switch, heated left seat
3/92 Switch, heater right seat
3/95 Switch, TRACS
3/97 Switch, auto-down relay, power window
3/99 Front fog light switch
4/4 Rheostat
4/30 Control module, ECC
5/1 Combined instrument
10/37 Cigarette lighter illumination
10/40 Gear selector light
10/72 Ashtray lighting, front
10/96 Instrument lighting
10/98 Ashtray lighting, rear
11/35 Fuses
11/37 Fuses
16/1 Radio
24/1 Connector, 14-pin
Instrument panel harness - Firewall harness
24/2 Connector, 53-pin
Engine compartment harness - Firewall harness
24/7 Connector, 14-pin
Firewall harness - Tunnel harness
24/10 Connector, 2-pin
Firewall harness - heater fan / A/C unit
24/12 Connector, 4-pin
Firewall harness - heater fan / A/C unit
24/13 Connector, 53-pin
Engine compartment harness - Instrument panel harness
24/37 Connector, 6-pin
Firewall harness - switch harness heated rear seat
31/44 Ground point, engine compartment
(ground connection battery - body)
31/50 Ground point, central electrical unit (power ground)
31/51 Ground point, central electrical unit (signal ground)
