Horn: Locations

Component Location

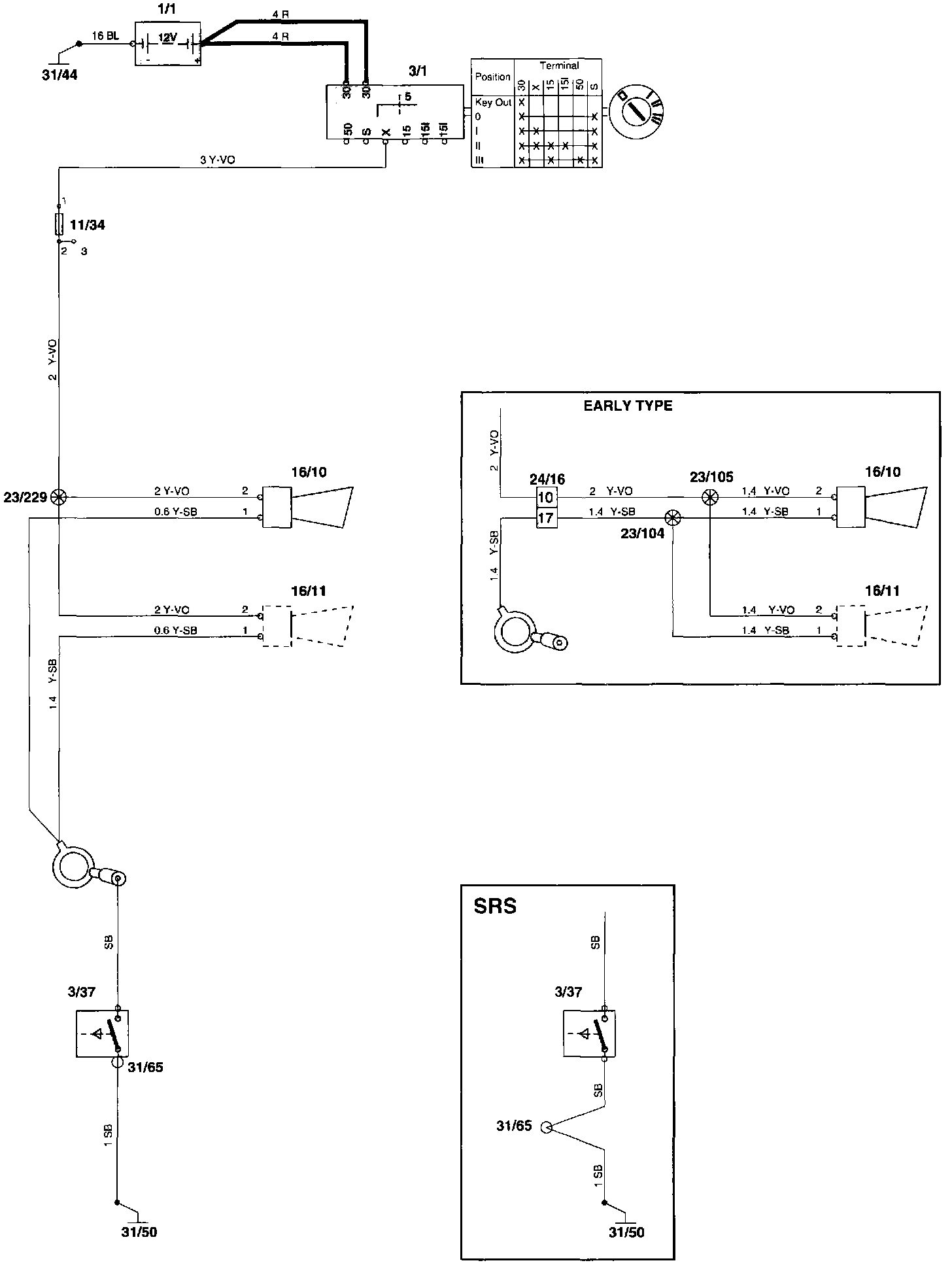

Wiring Diagram

Component I.D. List
3/37 Horn connectors
11/34 Fuses
16/10 Horn 1
16/11 Horn 2
24/16 Connector, 26-pin
Engine compartment harness - Front harness
31/44 Ground point, engine compartment
(ground connection battery - body)
31/50 Ground point, central electrical unit (power ground)
31/65 Ground point, steering column
