Turn Signal / Hazard Lights, 4-Door

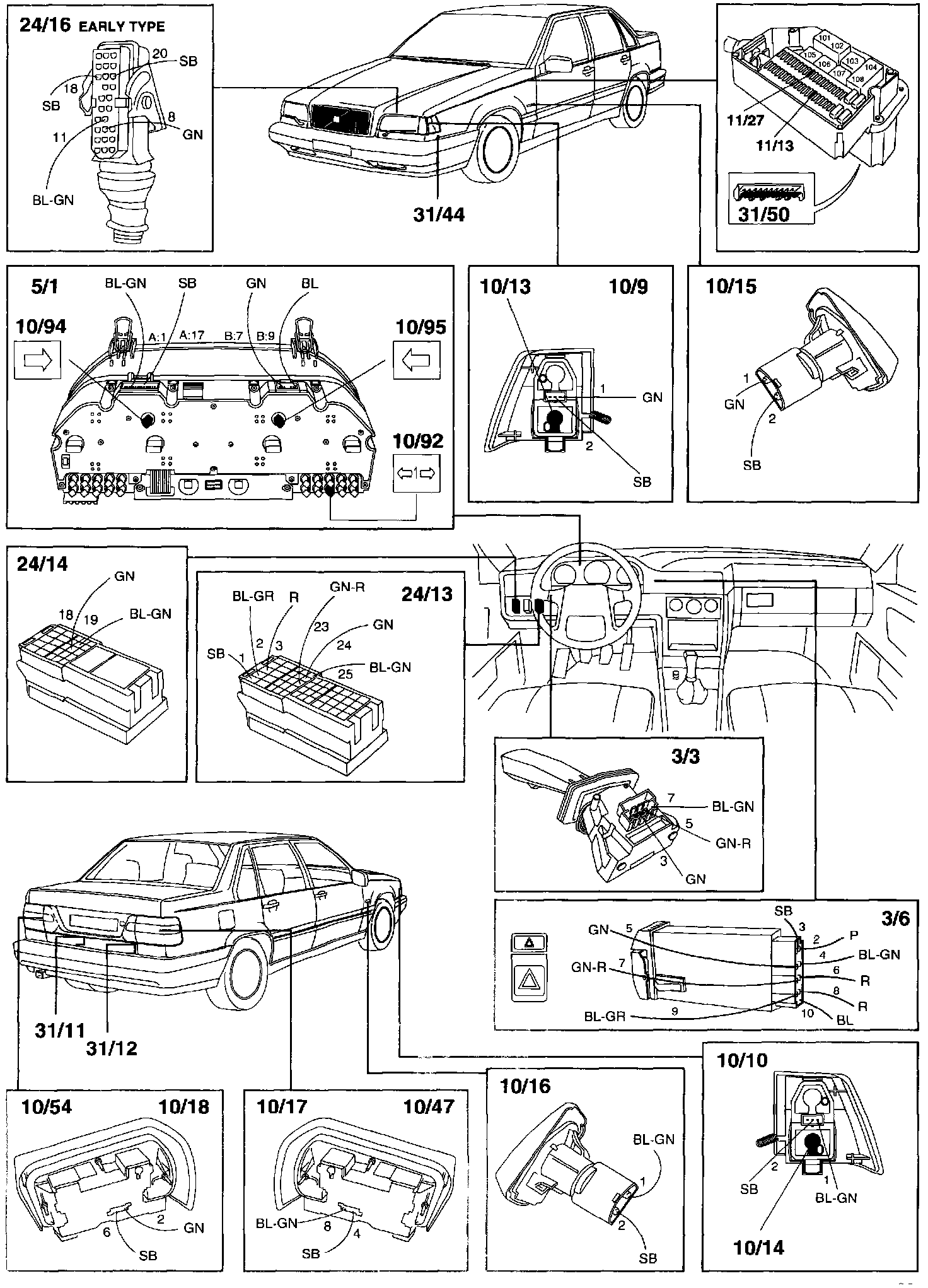

Component Location

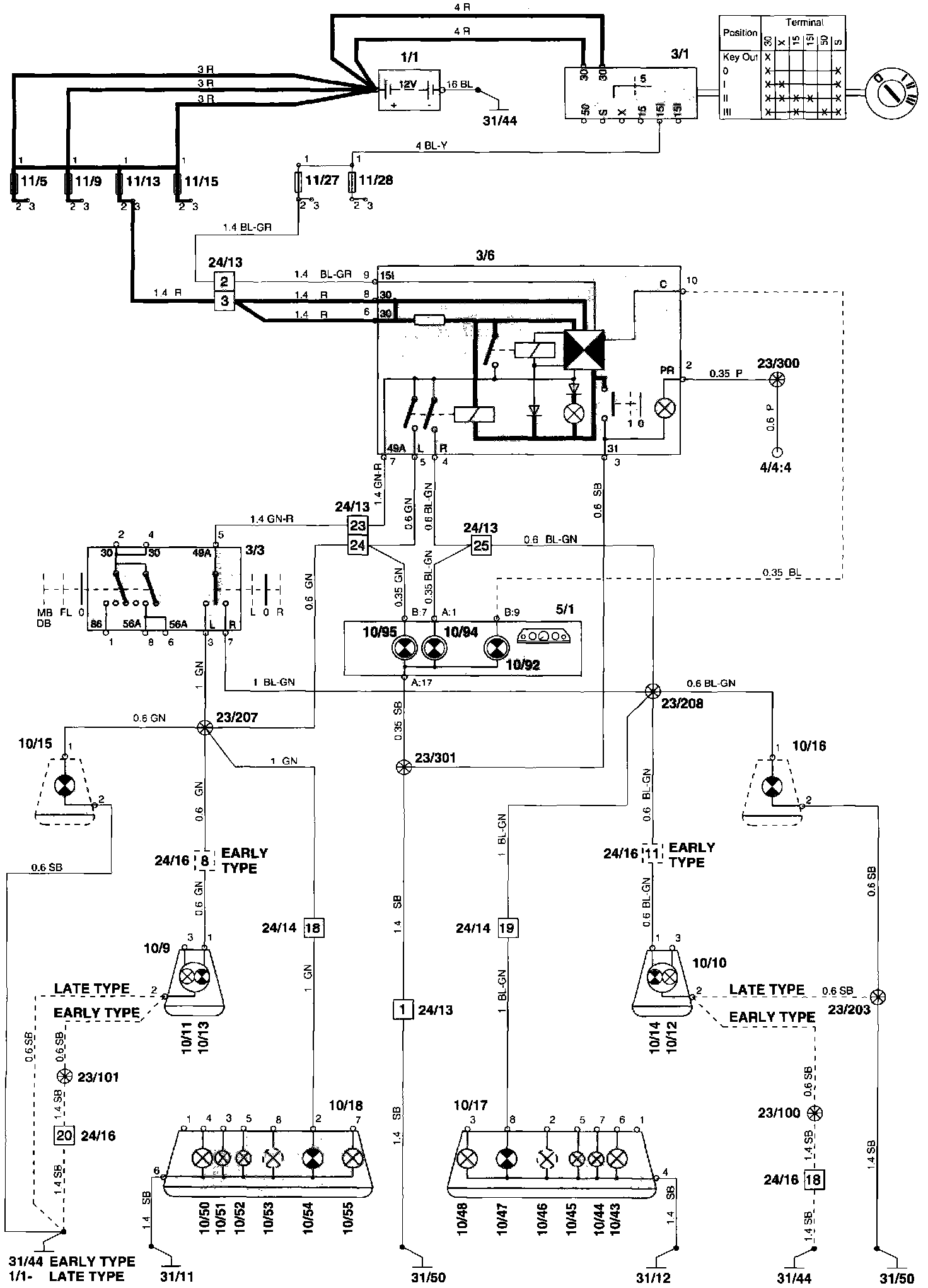

Wiring Diagram

Component I.D. List
3/3 Switch, turn signal/high and low beams
3/6 Switch, hazard lights with flasher relay
5/1 Combined instrument
10/9 Left parking light and turn signal, front
10/10 Right parking light and turn signal, front
10/13 Left turn signal, front
10/14 Right turn signal, front
10/15 Left side indicator light
10/16 Right side indicator light
10/17 Right tail light
10/18 Left tail light
10/47 Lamp, right turn signal, rear
10/54 Lamp, left turn signal, rear
10/94 Indicator lamp, right turn signal
10/95 Indicator lamp, left turn signal
11/13 Fuses
11/27 Fuses
24/13 Connector, 53-pin
Engine compartment harness - Instrument panel harness
24/14 Connector, pos. 1-25 in 53-pin
Engine compartment harness - Door sill harness, left
24/16 Connector, 26-pin
Engine compartment harness - Front harness
31/11 Ground point, trunk, left side
31/12 Ground point, trunk, right side
31/44 Ground point, engine compartment
(ground connection battery - body)
31/50 Ground point, central electrical unit (power ground)
