Tailgate Wash/Wipe

Wiring Diagram

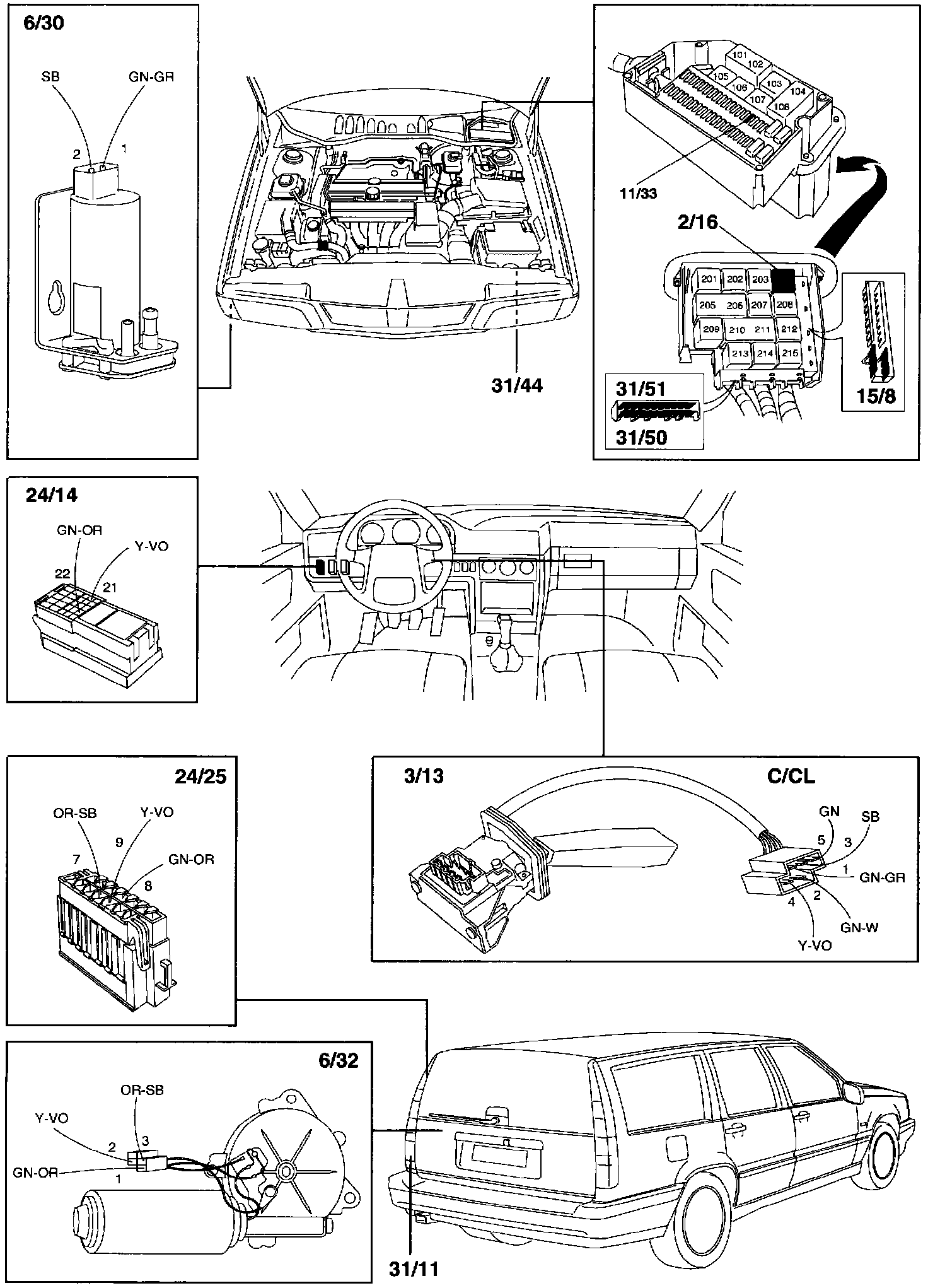

Component Location

Component I.D. List
C/CL Connector, 6-pin, tailgate wash/wipe
2/16 Tailgate wiper intermittent relay
3/13 Switch, tailgate washer and wiper
6/30 Tailgate washer motor
6/32 Tailgate wiper motor
11/33 Fuses
15/8 X rail in central electrical unit
24/14 Connector, pos. 1-25 in 53-pin
Engine compartment harness - Door sill harness, left
24/25 Connector, 14-pin
Rocker panel (door sill) harness, left - trunk harness
31/11 Ground point, trunk, left side
31/44 Ground point, engine compartment
(ground connection battery - body)
31/50 Ground point, central electrical unit (power ground)
31/51 Ground point, central electrical unit (signal ground)
