Late Type

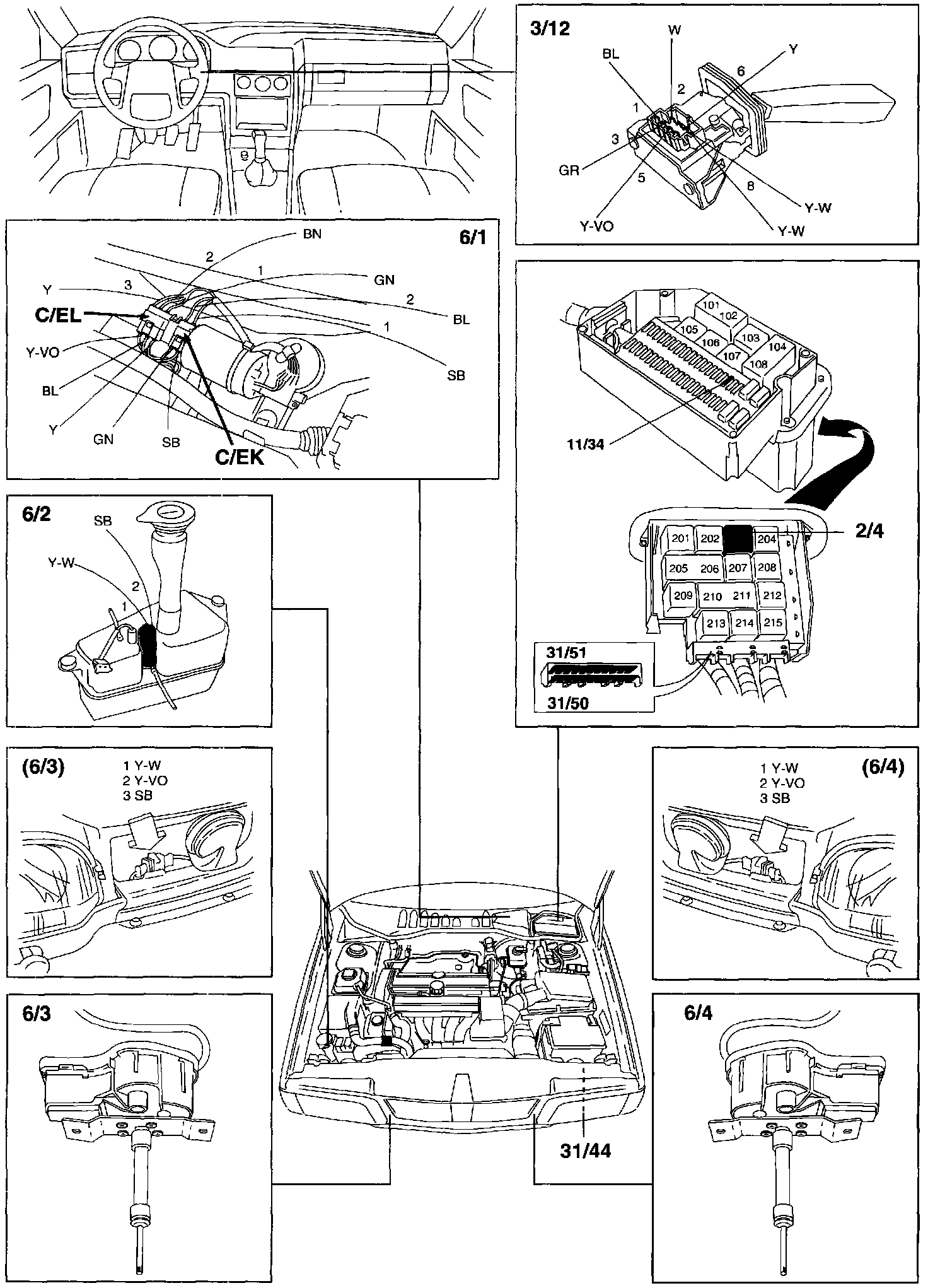

Component Location

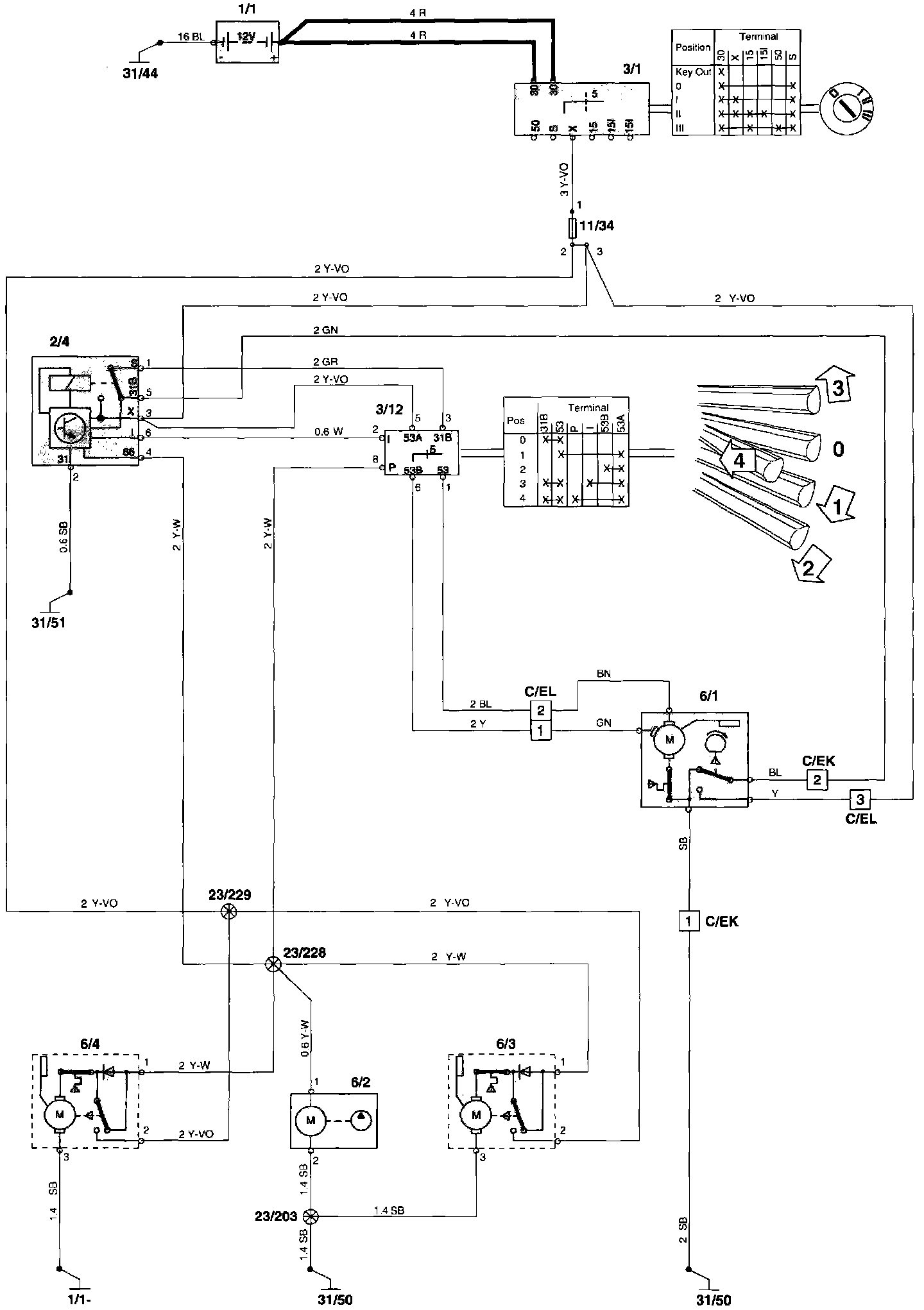

Wiring Diagram

Component I.D. List
C/EK Connector, 2-pin, windshield wiper motor
C/EL Connector, 3-pin, windshield wiper motor
2/4 Windshield wiper intermittent relay
3/12 Switch, windshield wipers and washer
6/1 Windshield wiper motor
6/2 Washer motor front
6/3 Right headlight wiper motor
6/4 Left headlight wiper motor
11/34 Fuses
31/44 Ground point, engine compartment
(ground connection battery - body)
31/50 Ground point, central electrical unit (power ground)
31/51 Ground point, central electrical unit (signal ground)
