Cabin Air Filter / Purifier: Service and Repair

INSTALLATION OF POLLEN FILTER KIT

Parts required for installation of pollen filter kit:

Pollen filter kit P/N 9134576-1

For cars with ECC and chassis nos. less than described below, additional parts are required: 854: 131217, 855: 037306
Bracket 6849320-4
Screw 979186-4
Washer 960138-6
Tie strip 948211-8

If a pollen filter kit has been previously installed in the vehicle, replace the filter element (P/N 1343232-3) after evaporator treatment is complete.


Procedures:


- Remove nuts and wiper arms

- Remove clamps and drainage hoses

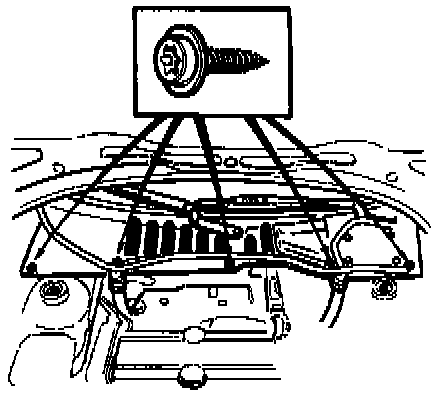

- Remove five (5) screws

- Remove upper section of bowl

For cars with Climate Control (ECC) M/Y 1993 and 1994 partly, chassis number lower than 854: 131217, 955: 037306






- Remove sensor from the mounting.






- Drill out the hole factory marked on the filter holder using a 3 mm (1/8") diameter drill.

- Screw the retaining bracket P/N 684932-4 into place with the screw P/N 979186-4 and washer P/N 960138-6.

1Note: The bracket, screw and washer is not included in the Pollen filter kit.

ALL CARS:






- Replace the existing air intake with the filter holder

For cars with Climate Control (ECC) M/Y 1993 and 1994 partly, chassis number lower than 854: 131217, 955: 037306
- Push the sensor into bracket

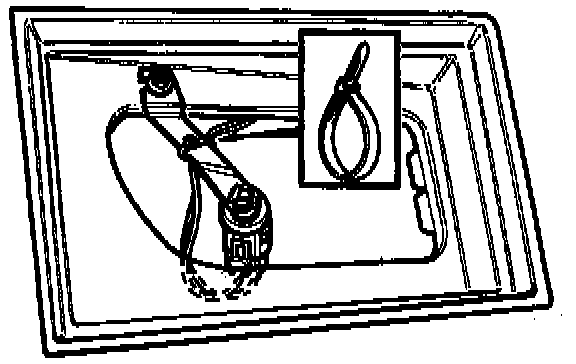

- Use a tie strip P/N 948211-8 to damp the cables to the bracket

All cars:

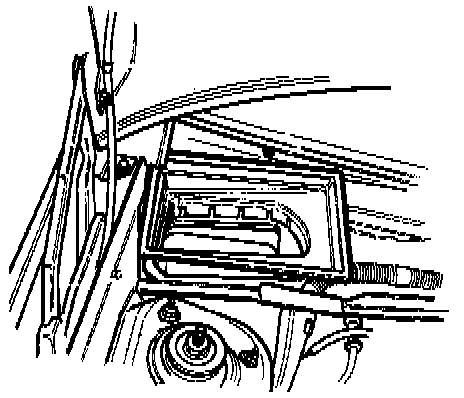

- Insert the filter.

- Replace the cowl upper section, drainage hoses and the wiper arms.






- Remove old decal, if any.

- Clean the area where the label is to be attached

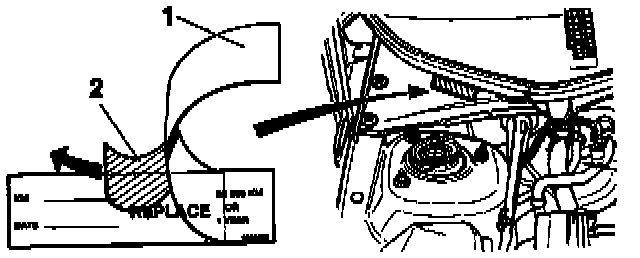

- Unfold the transparent part and fill in the mileage and date on the decal

- Remove the protective plastic (2) and press the edge (1) over the decal.
- Remove the protective paper on the back side of the decal and place the decal there on the upper part of the cowl.
