Backup Lamp

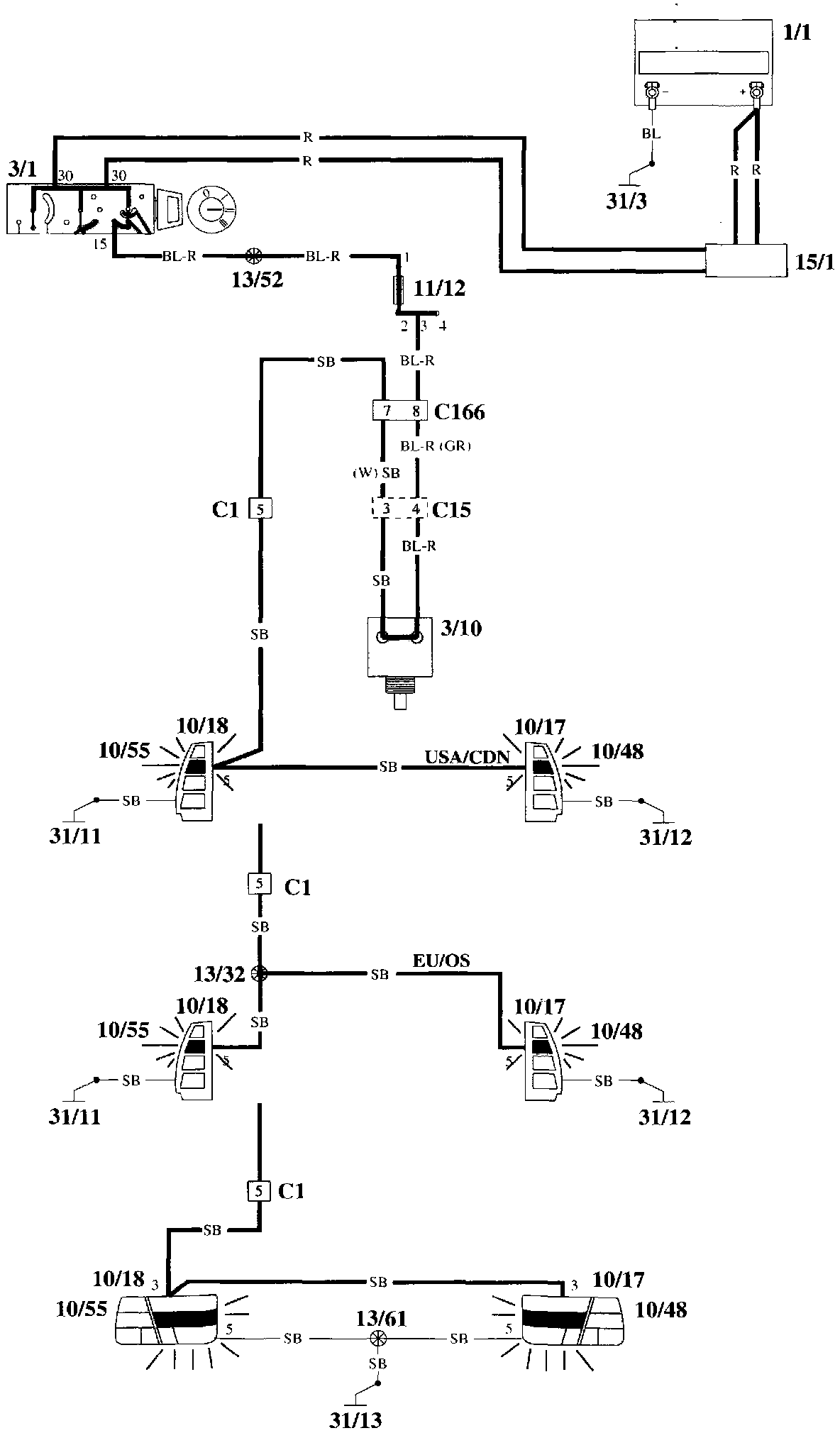

Wiring Diagram
Ignition ON
Gear lever in reverse




Component Location

Component I.D. List
C1 Connector, 53-pin Instrument panel harness - Door sill harness
C15 Connector, at gearbox
C166 Connector, at el. dist. unit, 8-pin
3/1 Ignition lock
3/10 Backup (reversing) light switch
10/48 Right backup (reversing) light
10/55 Left backup (reversing) light
15/1 Positive terminal
31/11 Ground connector left tail light
31/12 Ground connector right tail light
31/13 Ground connector in load area
