Maintenance Required Lamp/Indicator: Service and Repair

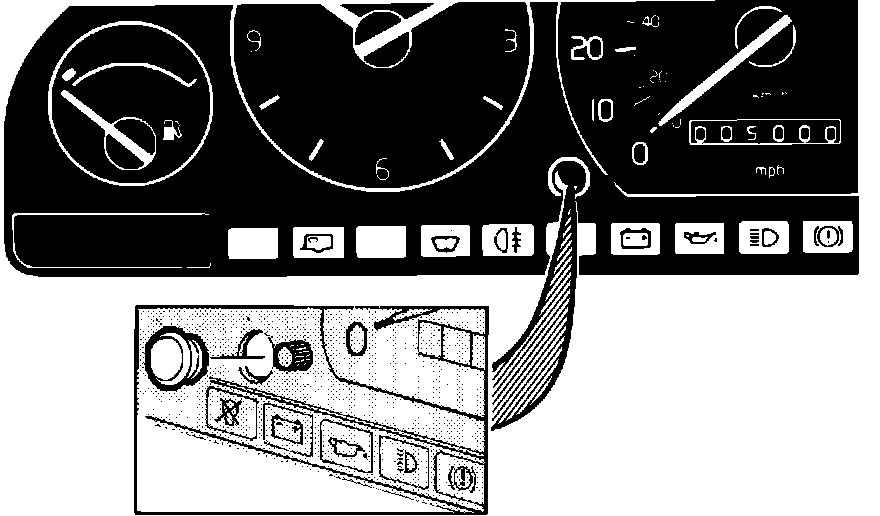

Fig. 418 Reset Button:

The service indicator lamp, located on the instrument cluster, illuminates for approximately 2 minutes after engine start up at 5,000 mile (8,000 km) intervals to indicate need for engine oil change.

To reset:
1. Remove the rubber grommet to the left of speedometer, Fig. 418.
2. With a small screwdriver, depress reset button.
