Front Light Cluster Replacement








- Disconnect battery ground lead.

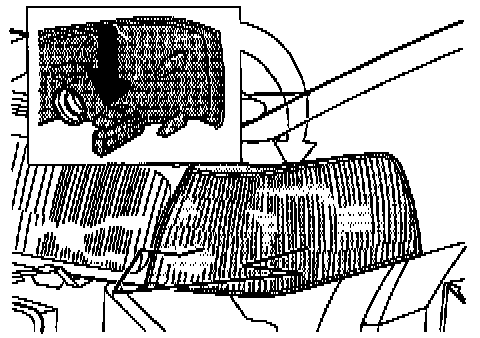

- Press in catch and remove turn signal.
- Remove headlight wiper arms.
- Remove 6 nuts from fender and lay fender on the ground.
Be careful to avoid damaging the paintwork.
- Unplug contacts.

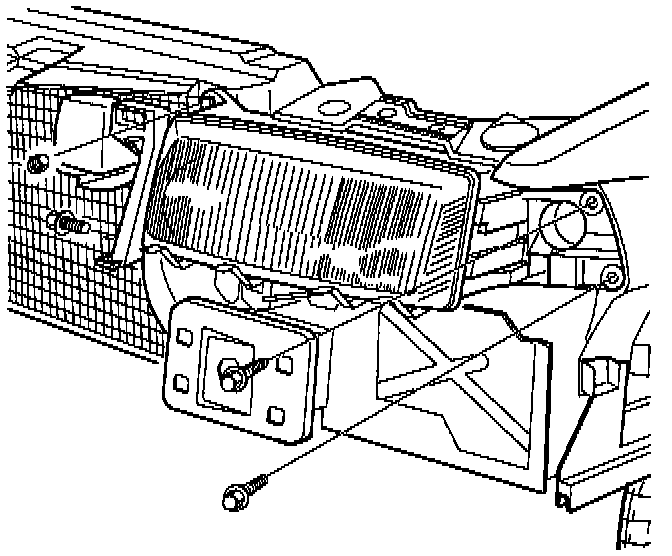

- Unscrew 3 screws on the headlight housing and remove the nuts.
- Lift off the headlight.
- Replace.
- Reassemble in reverse order.
- Test.
- Check beam alignment.
