Shift Linkage: Adjustments

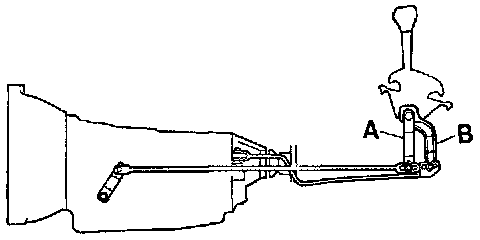

Fig. 3 Gear Selector Adjustment:

1. Move gear selector lever to Park position.
2. Loosen control rod and reaction strut nuts.
3. Ensure selector link arm on transmission is in Park position (rearmost position). Gear selector lever will interfere with instrument panel if arm is adjusted too far back.
4. Ensure gear lever arm, (A) is vertical or slightly forward, Fig. 3. Install locknut on gear lever arm.
5. Press reaction arm (B) gently backwards until slight resistance is felt, Fig. 3. Torque nut to 4 ft. lbs.
