Home >> Volvo >> 1996 >> 850 L5-2.4L VIN 55 B5254S >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors 24/1 and 24/13

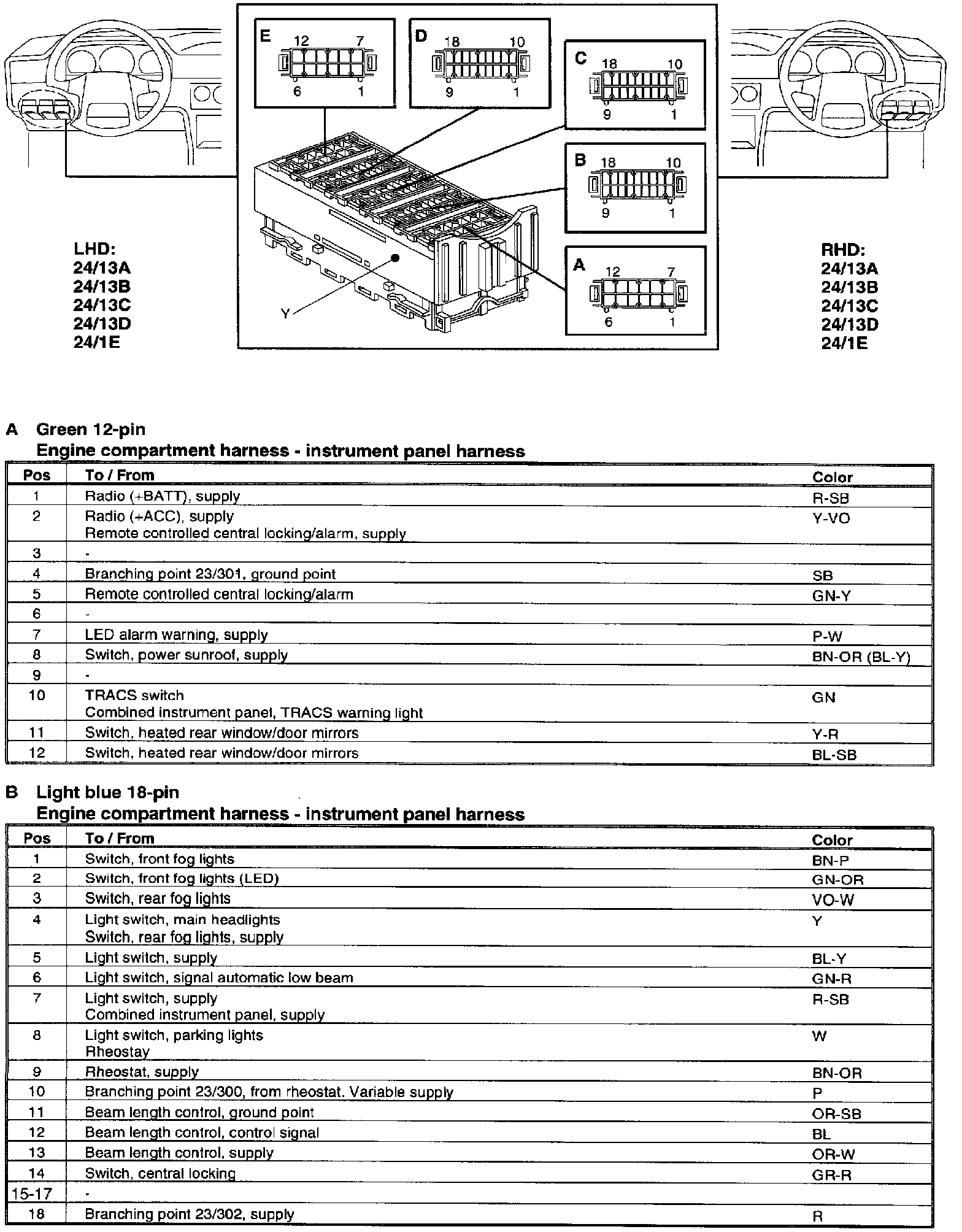

Connectors 24/1 and 24/13
