Electronic Starter Inhibitor (Immobilizer) Canada Only

Component Location

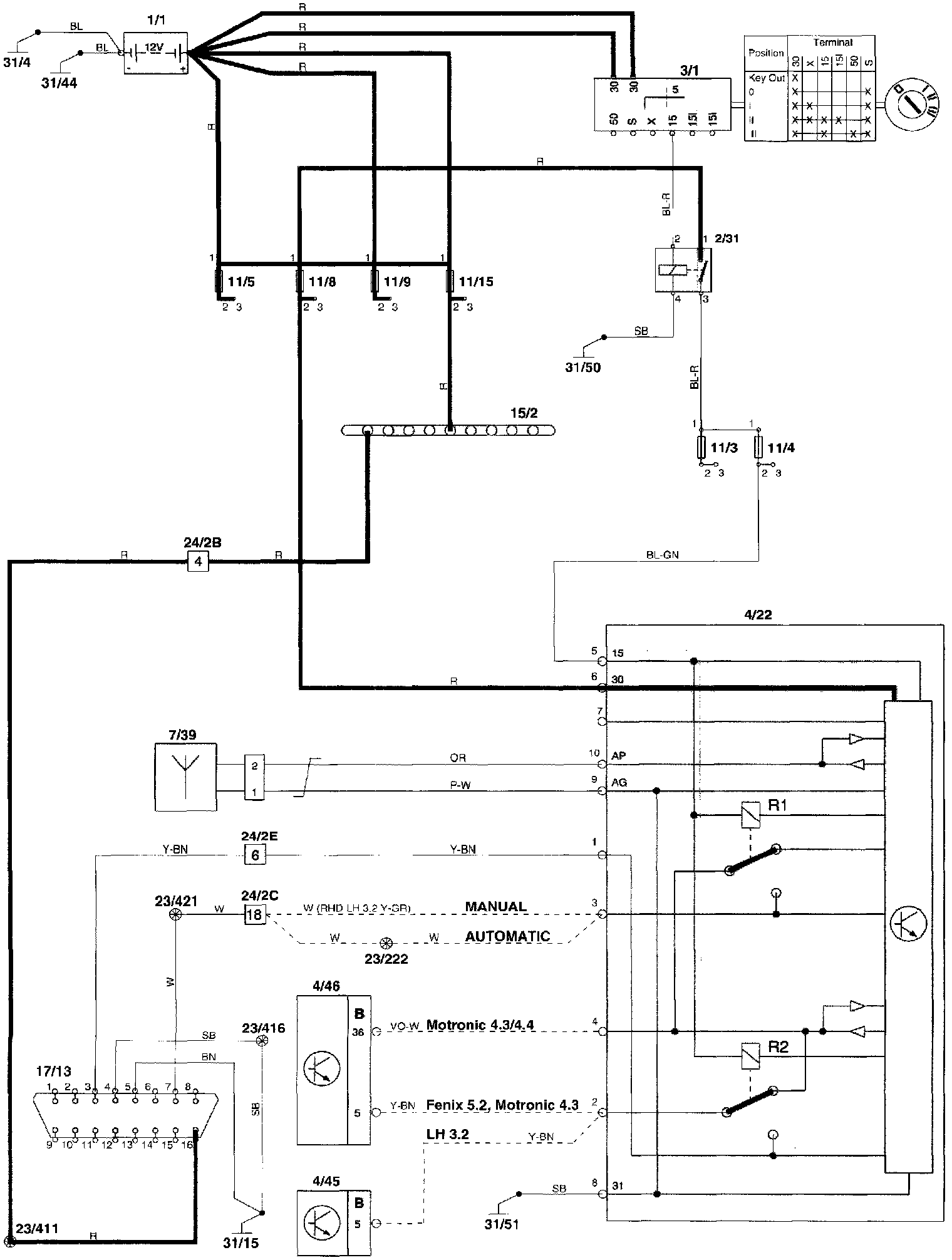

Wiring Diagram

Component I.D. List
2/31 Overload relay 15+
4/22 Electronic immobilizer
4/45 Control module, LH-Jetronic 3.2 MFI
4/46 Engine control module
7/39 Antenna ring
11/4 Fuses
11/8 Fuses
11/15 Fuses
15/2 30-rail in central electrical unit
17/13 On-board diagnostics socket
24/2 Connector
Engine compartment harness - firewall harness
31/4 Ground point, engine (ground point, battery - engine)
31/15 Ground point, A-pillar passenger side
31/44 Ground point, engine compartment (ground point, battery - body)
31/50 Ground point, central electrical unit, power ground
31/51 Ground point, central electrical unit, signal ground
