Home >> Volvo >> 1996 >> 850 T-5R L5-2.3L Turbo VIN 58 B5234T5 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector 24/25, 14-Pin

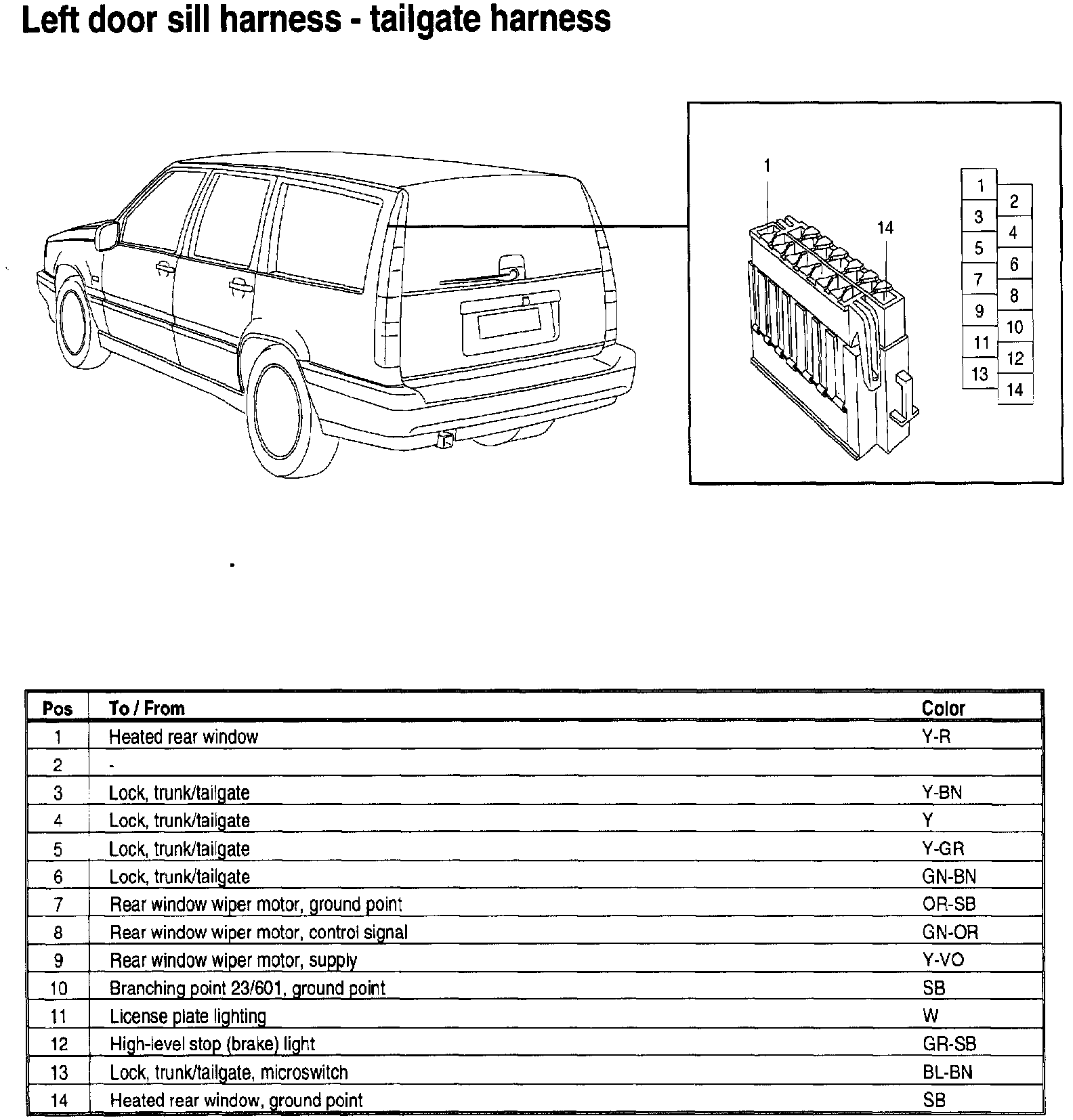

Connector 24/25, 14-Pin
