ABS - Supplement to Service Manual Section 5
SECTION5
GROUP
50
NO.
802X
DATE
Aug. -96
Supplement to Service Manual Section 5 800
REFERENCE: TP 5002201, SECTION 5(50, 52, 59) BRAKES (INCL. ABS AND TRACS); 850 1996
Supplement to Service Manual Section 5
Applies to service manual Section 5(50, 52, 55, 59) "Brakes (incl. ABS and TRACS) 850 1996 TP 5002201.
Some of the information in the above service manual requires correction and additions.
The ABS system on the 850 diesel has wire harness and fuses which are different from gasoline engine cars, which is not stated clearly in the service manual.
Please stick the labels in this SB in the Service Manual and then discard the Service Bulletin.

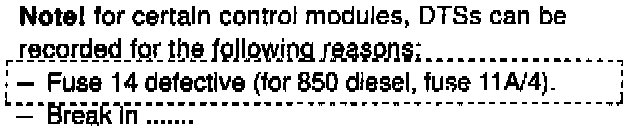

Page 167 in Note! box. Stick label over the text shown.

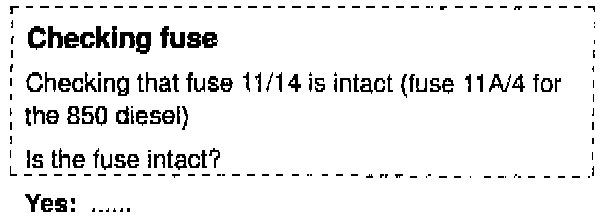

Page 171. Stick over the upper section of NC4
Page 171. Stick over the whole of NC5.
Page 171. Stick over the whole of operation NC6.
Page 172. Stick over the whole of NC7.
Page 172. Stick over the whole of operation NC8.
Page 189. Stick over upper section of text in the Note! box.
Page 192. Stick over upper section of text in QC4.
Page 192. Stick over the whole of QC5.
Page 192. Stick over the whole of QC6.
Page 193. Stick over the whole of QC7.
Page 193. Stick over the whole of QC8.

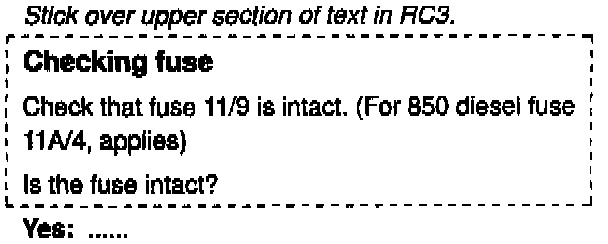

Page 200. Stick over upper section of text in RC3.
Stick over the whole of operation RC4.

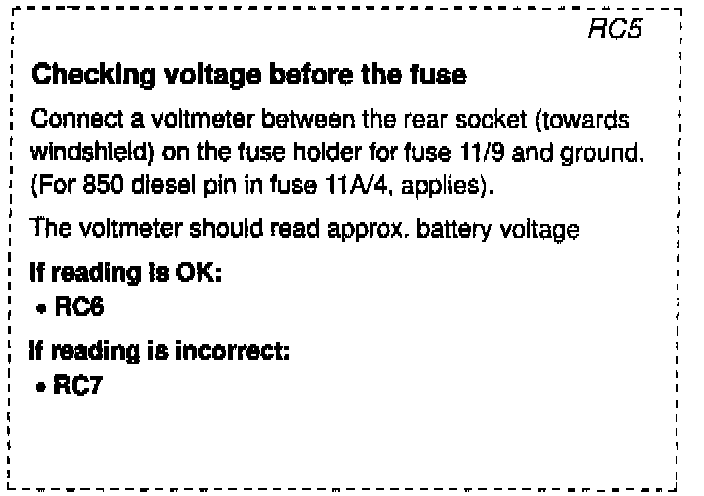

Page 201. Stick over the whole of operation RC5
Page 202. Stick over the whole of operation RC6.

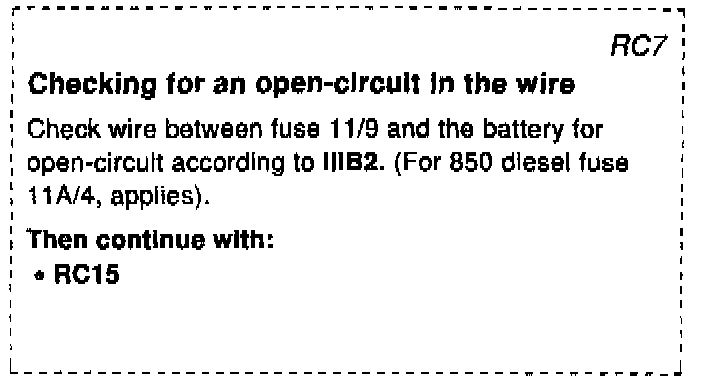

Page 202. Stick over the whole of RC7.

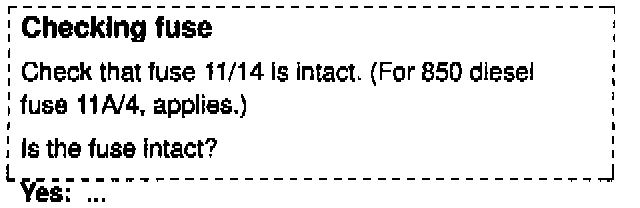

Page 225. Stick over upper section of text in VB10.

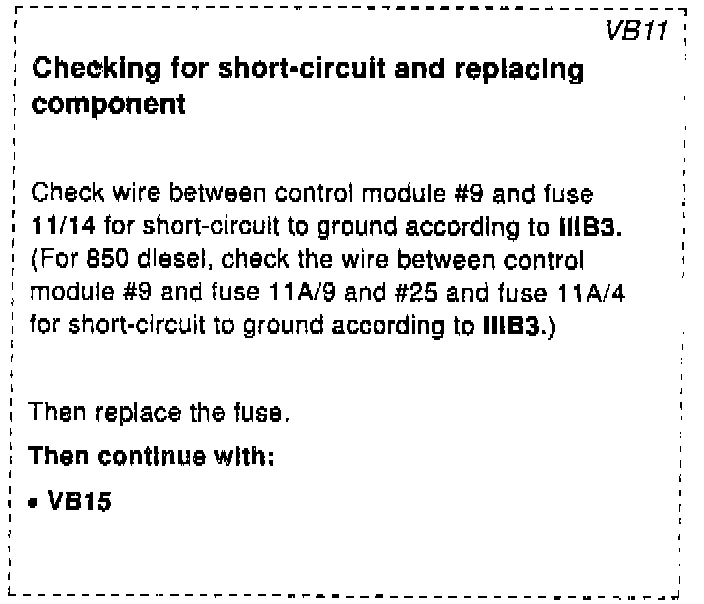

Page 226. Stick over the whole of operation VB11.
Page 226. Stick over the whole of operation VB12.

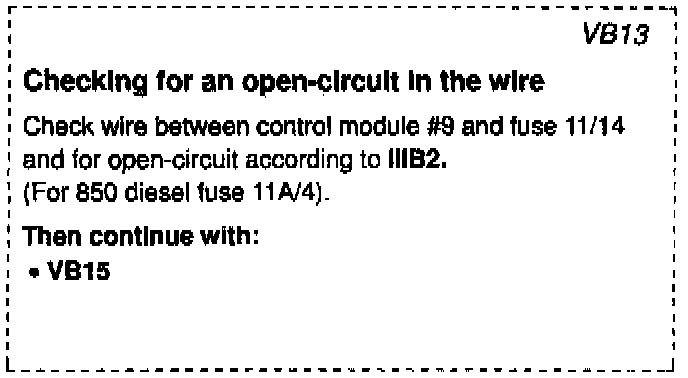

Page 227. Stick over the whole of operation VB13.

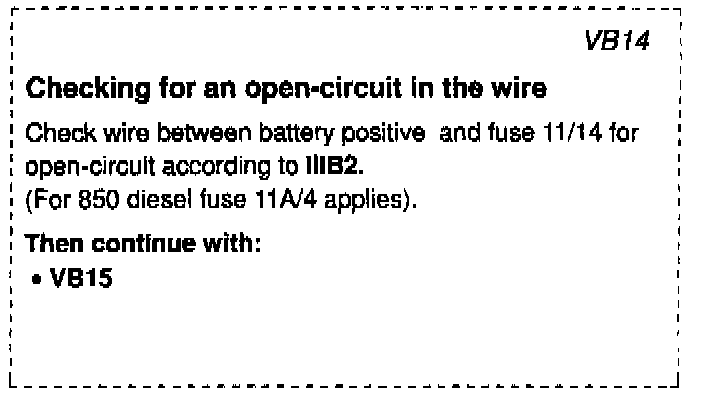

Page 227. Stick over the whole of operation VB14.
Page 322. Stick over upper section of text in IIIB9.
Page 323. Stick over the whole of operation IIIB11.

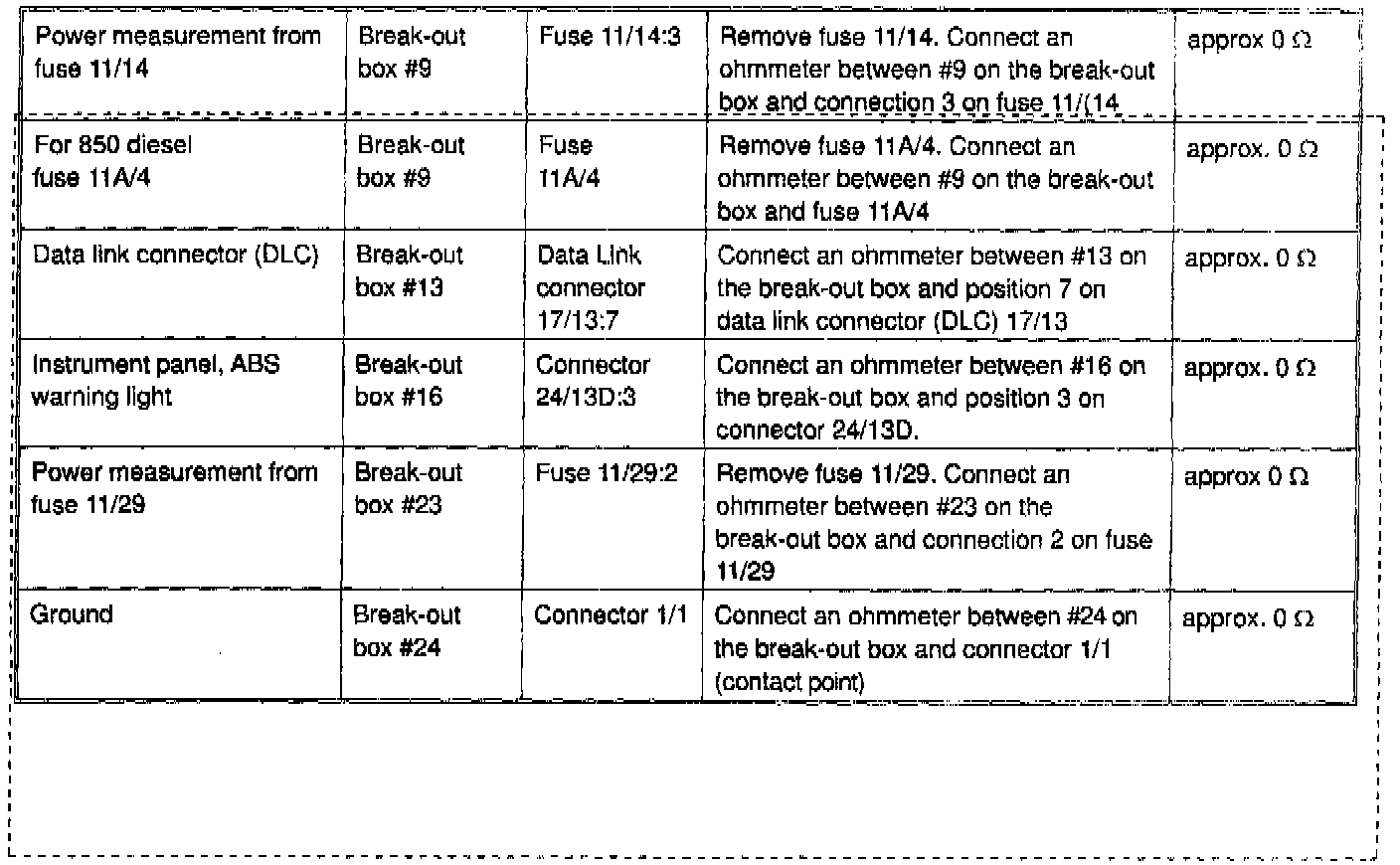

Page 433. Stick over the bottom five text fields in the table under "Power measurement from fuse 11/14"

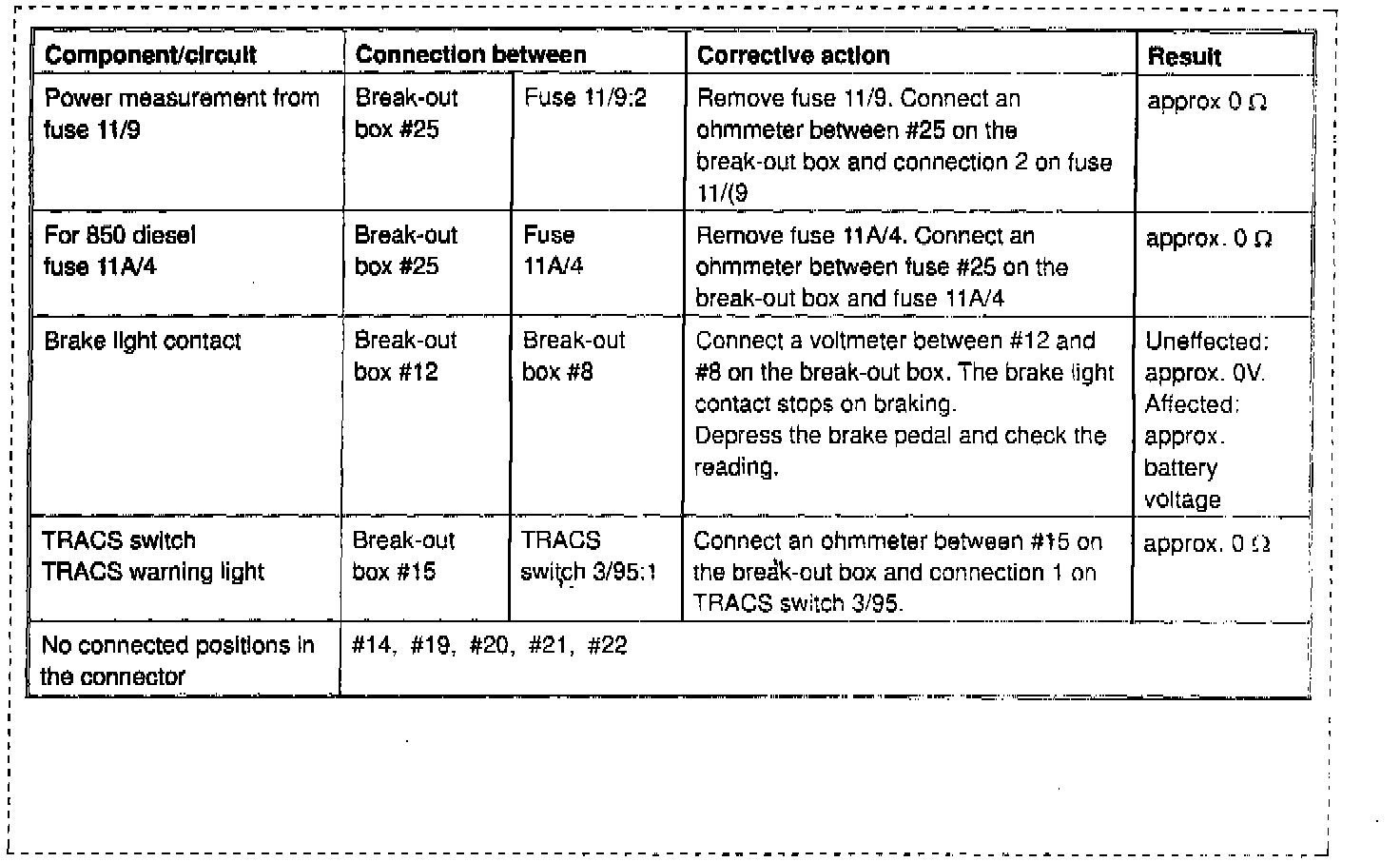

Page 434. Stick over the whole table.
