Horn

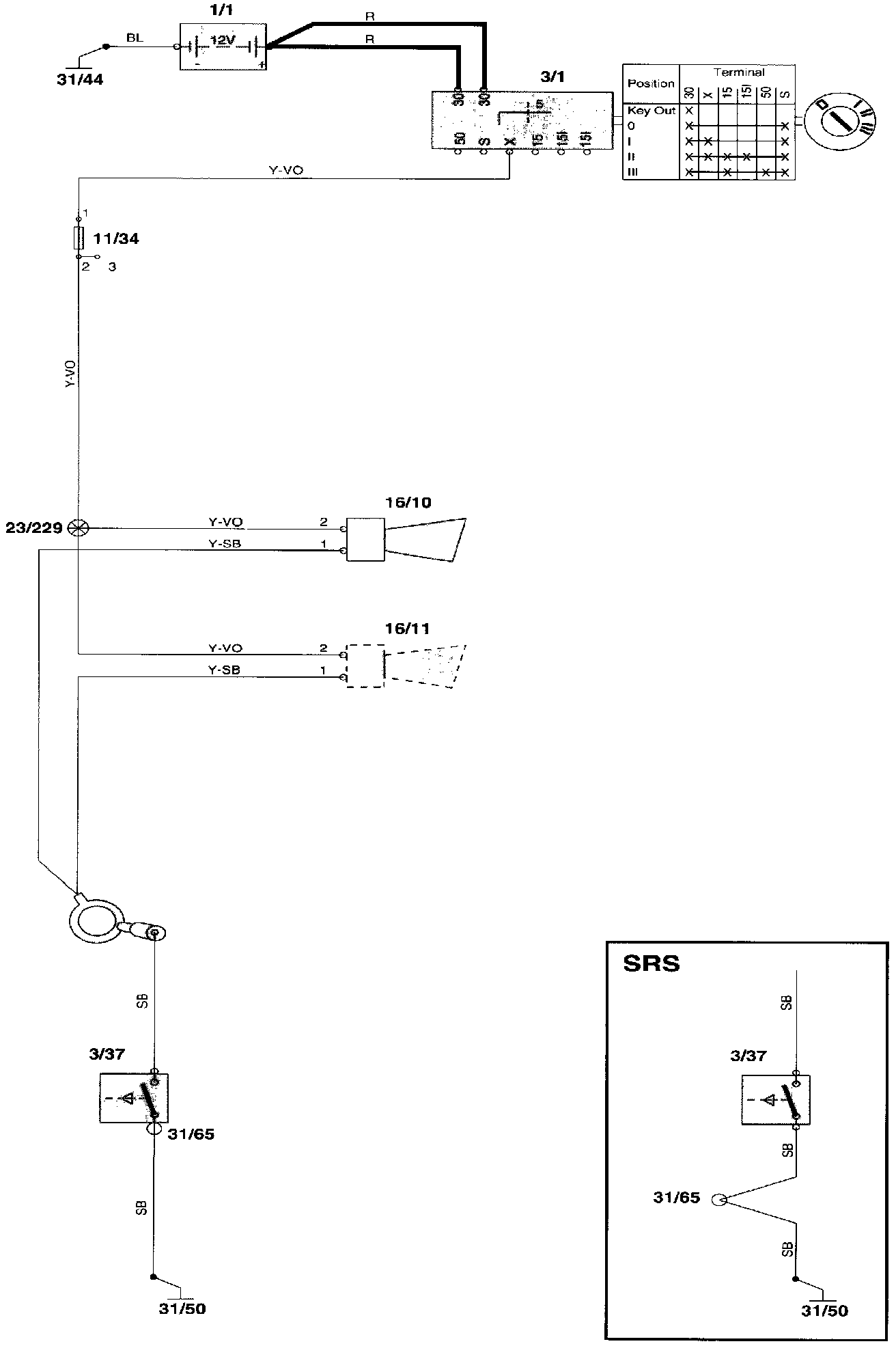

Wiring Diagram

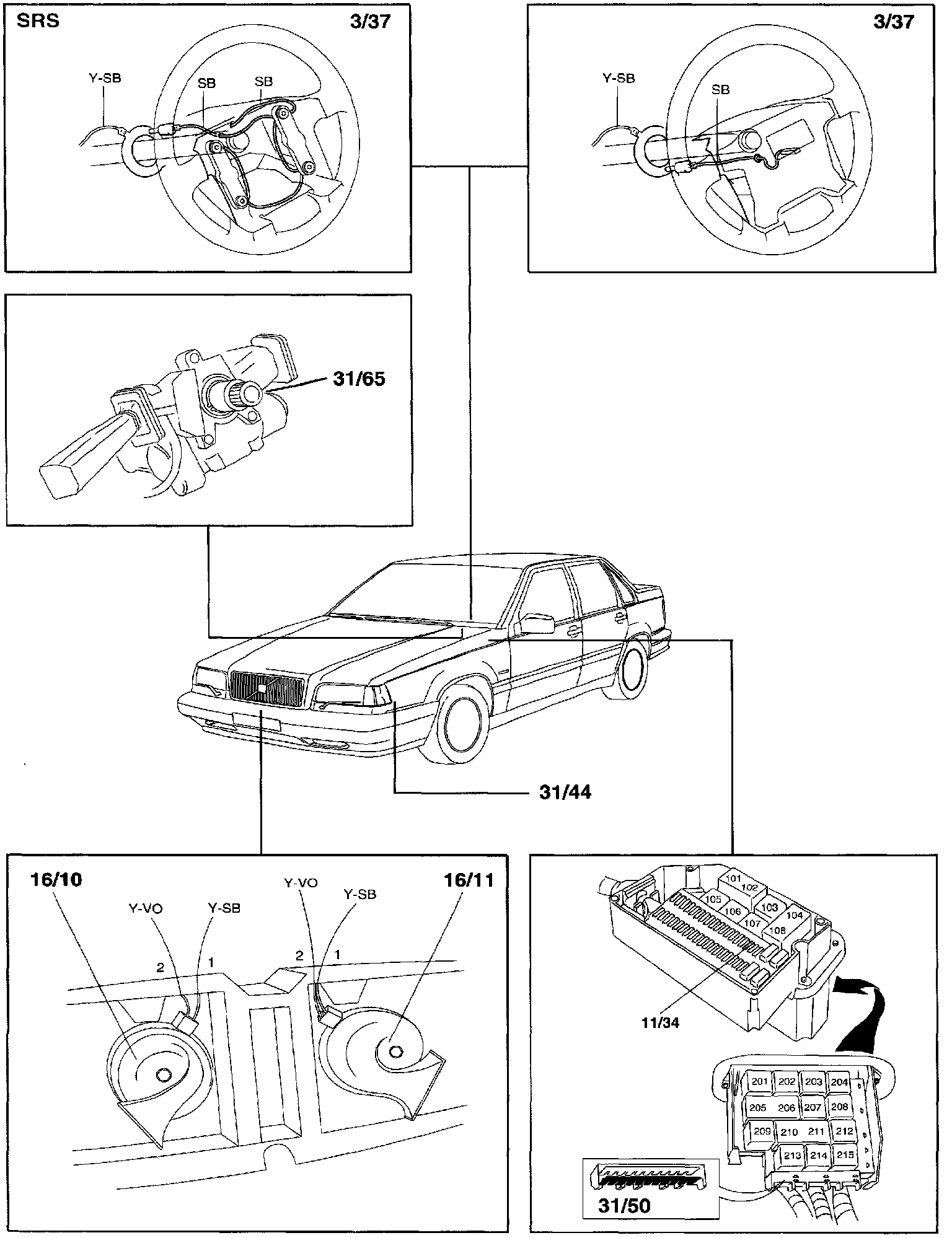

Component Location

Component I.D. List
3/37 Horn connectors
11/34 Fuses
16/10 Horn1
16/11 Horn2
31/44 Ground point, engine compartment (ground point, battery - body)
31/50 Ground point, central electrical unit, power ground
31/65 Ground point, steering column
