Blower Motor Resistor: Service and Repair

Manual Climate Control Only:

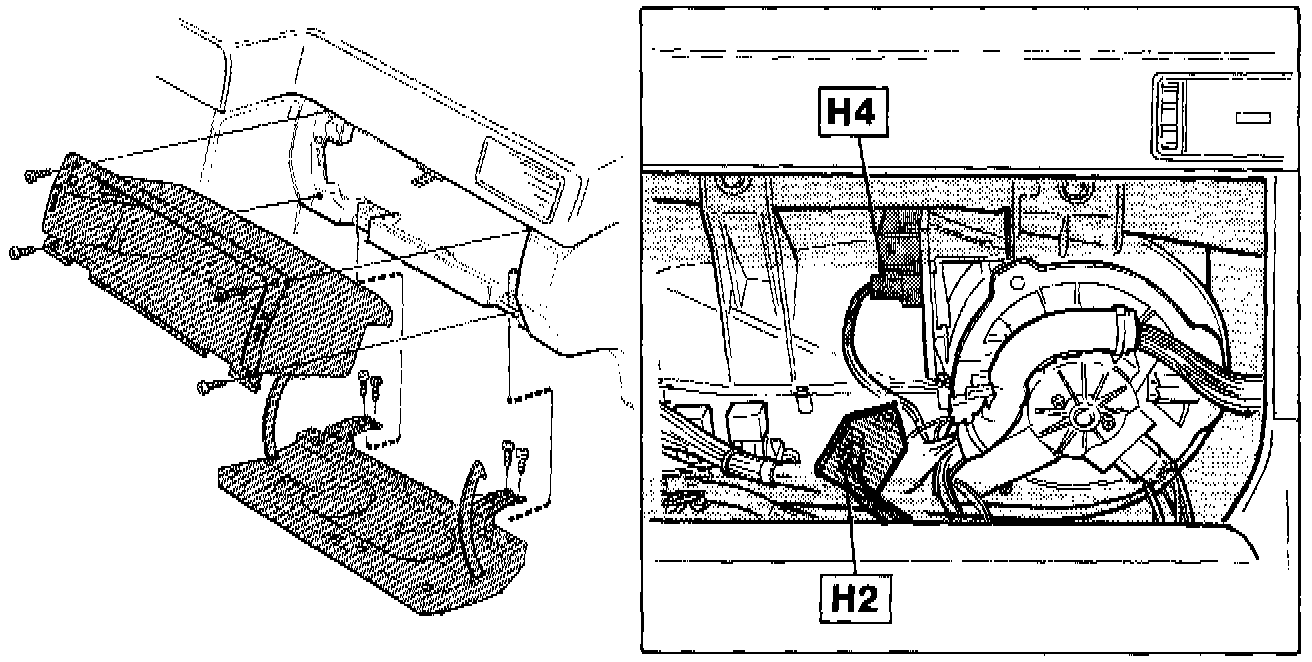

NOTE: H4 in Image is the recirc. damper motor. H2 is the Fan Resistor.

1. Remove glove compartment:
- Remove glove compartment (4 screws).
- Remove glove compartment panel (4 screws).
2. Remove fan resistor (H2):
- Disconnect fan resistor connector.
- Remove fan resistor (1 screw).
3. Install fan resistor and connector.
4. Install:
- Glove compartment panel.
- Glove compartment.
