Shift Interlock, A/T

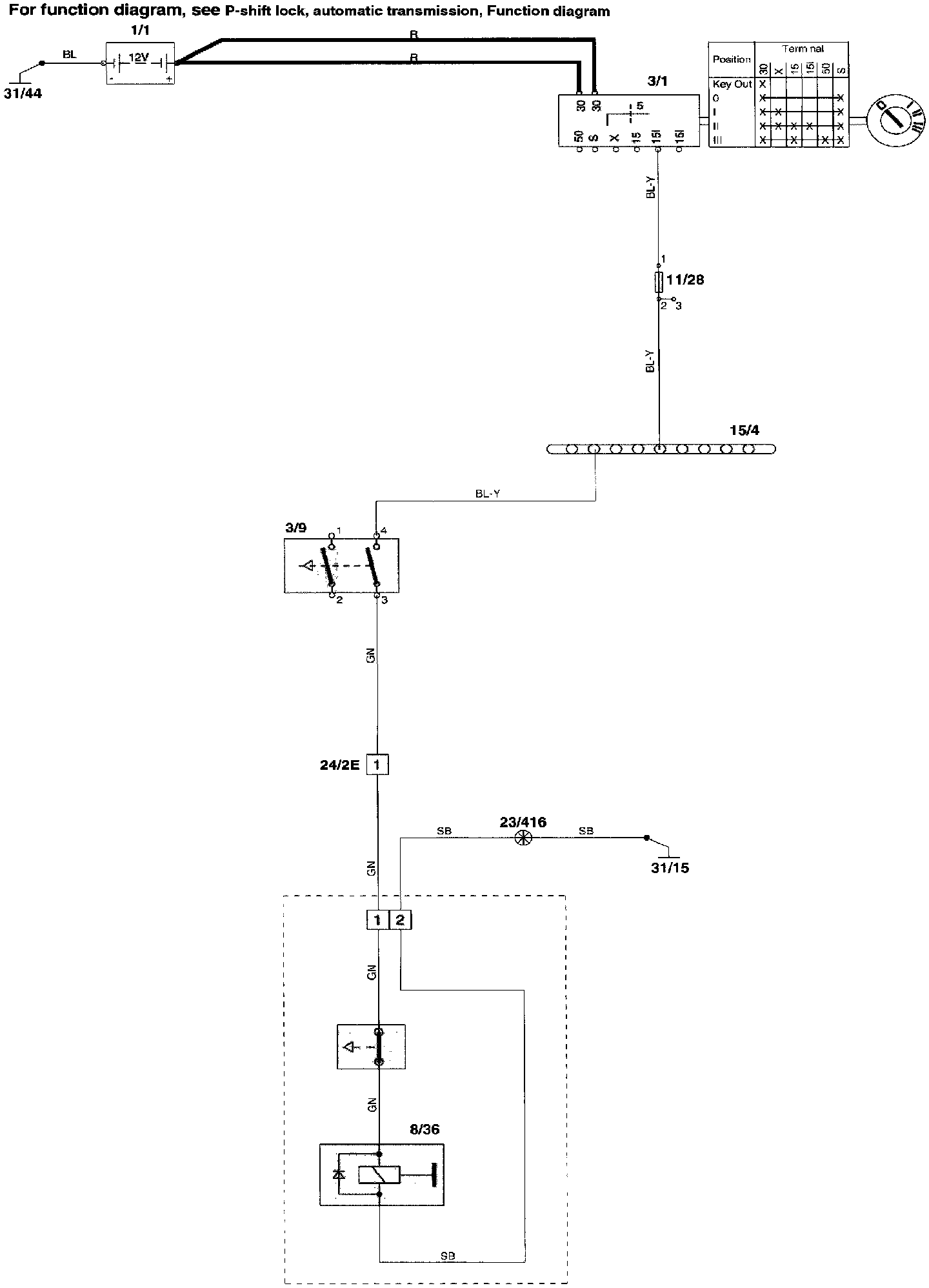

Wiring Diagram

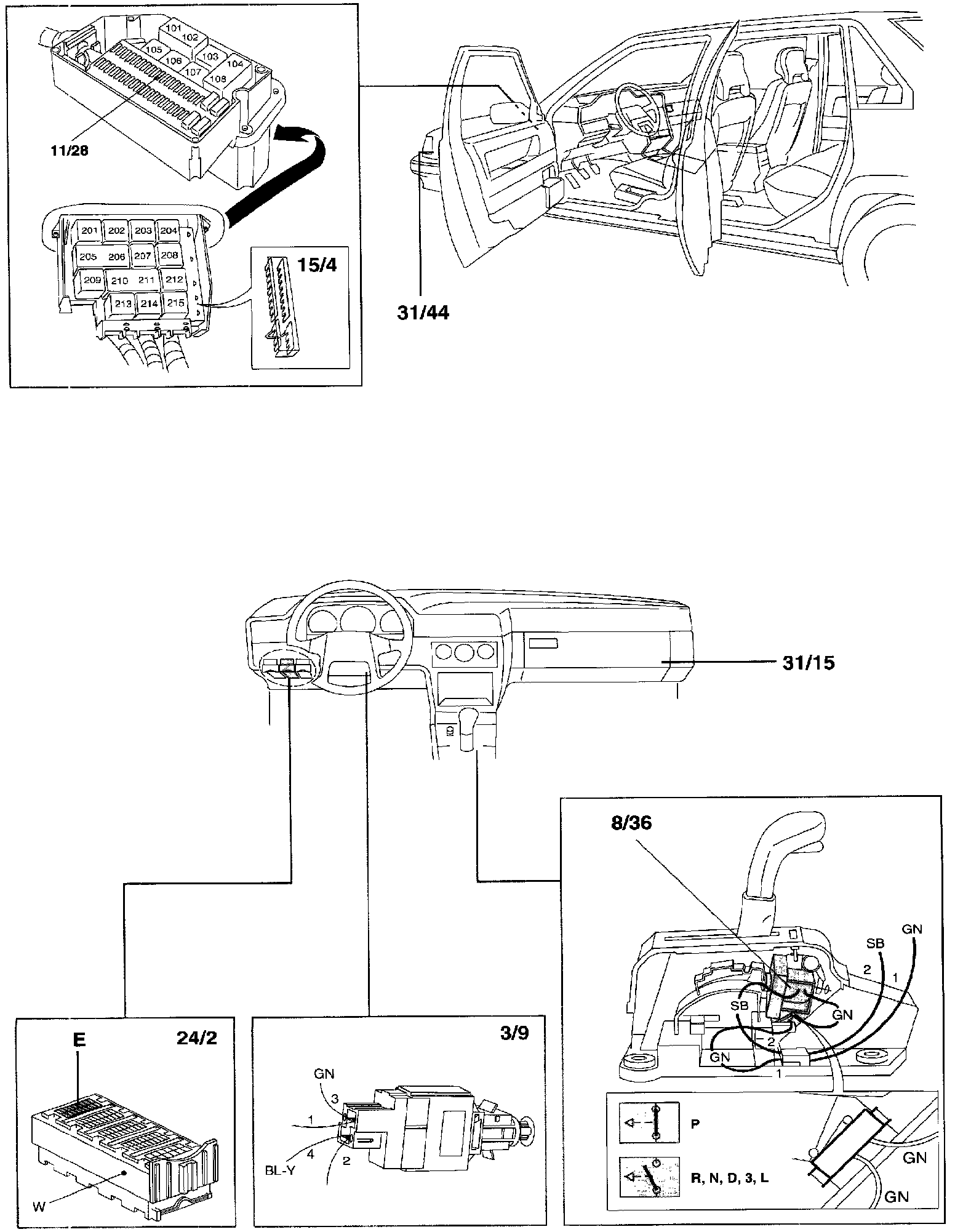

Component Location

Component I.D. List
3/9 Stop (brake) light switch
8/36 Solenoid, P-shift lock
11/28 Fuses
15/4 15I-rail in central electrical unit
24/2 Connector
Engine compartment harness - firewall harness
31/15 Ground point, A-pillar passenger side
31/44 Ground point, engine compartment (ground point, battery - body)
