Central Locking , 2 - Step

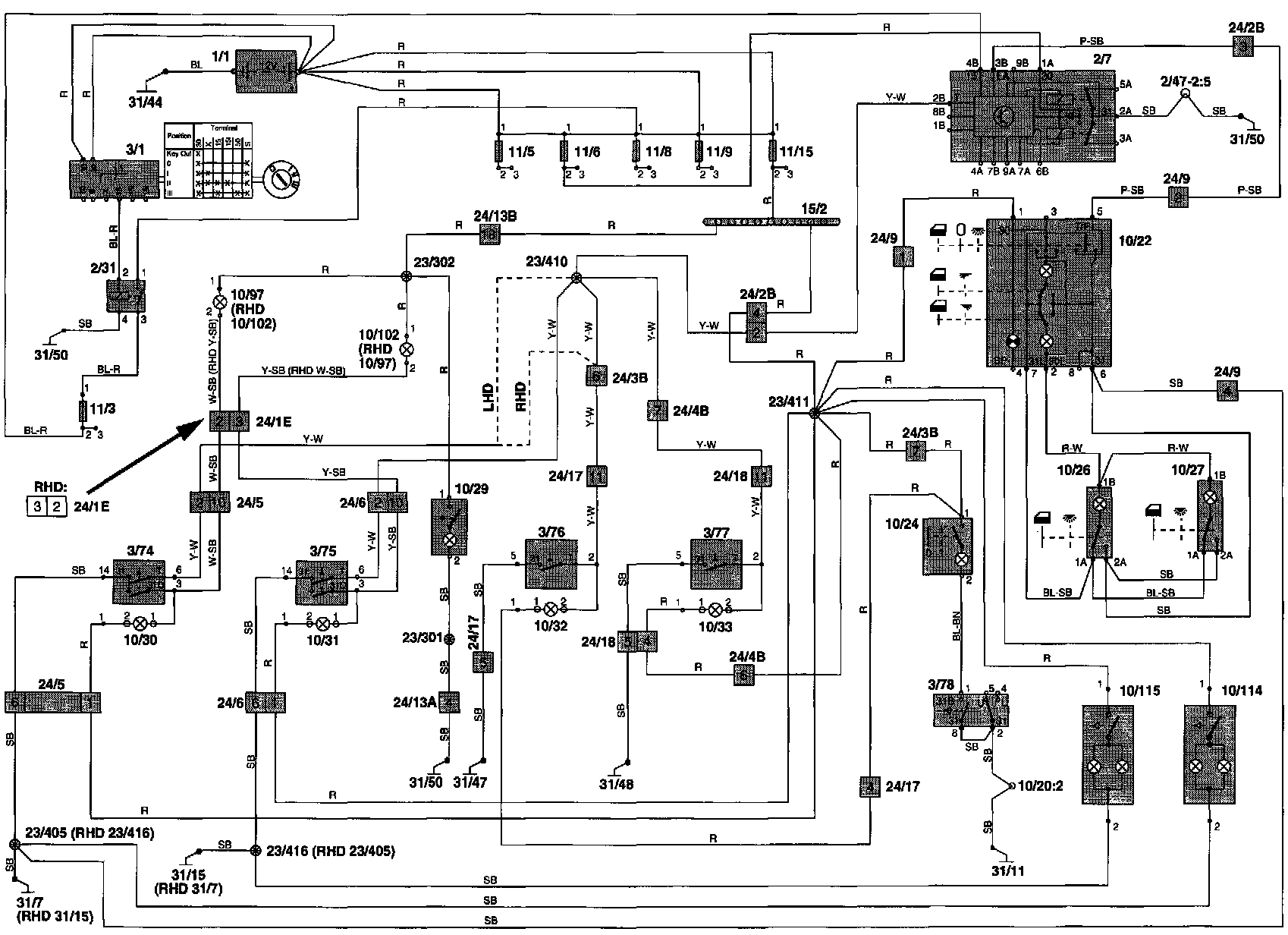

4-Door:

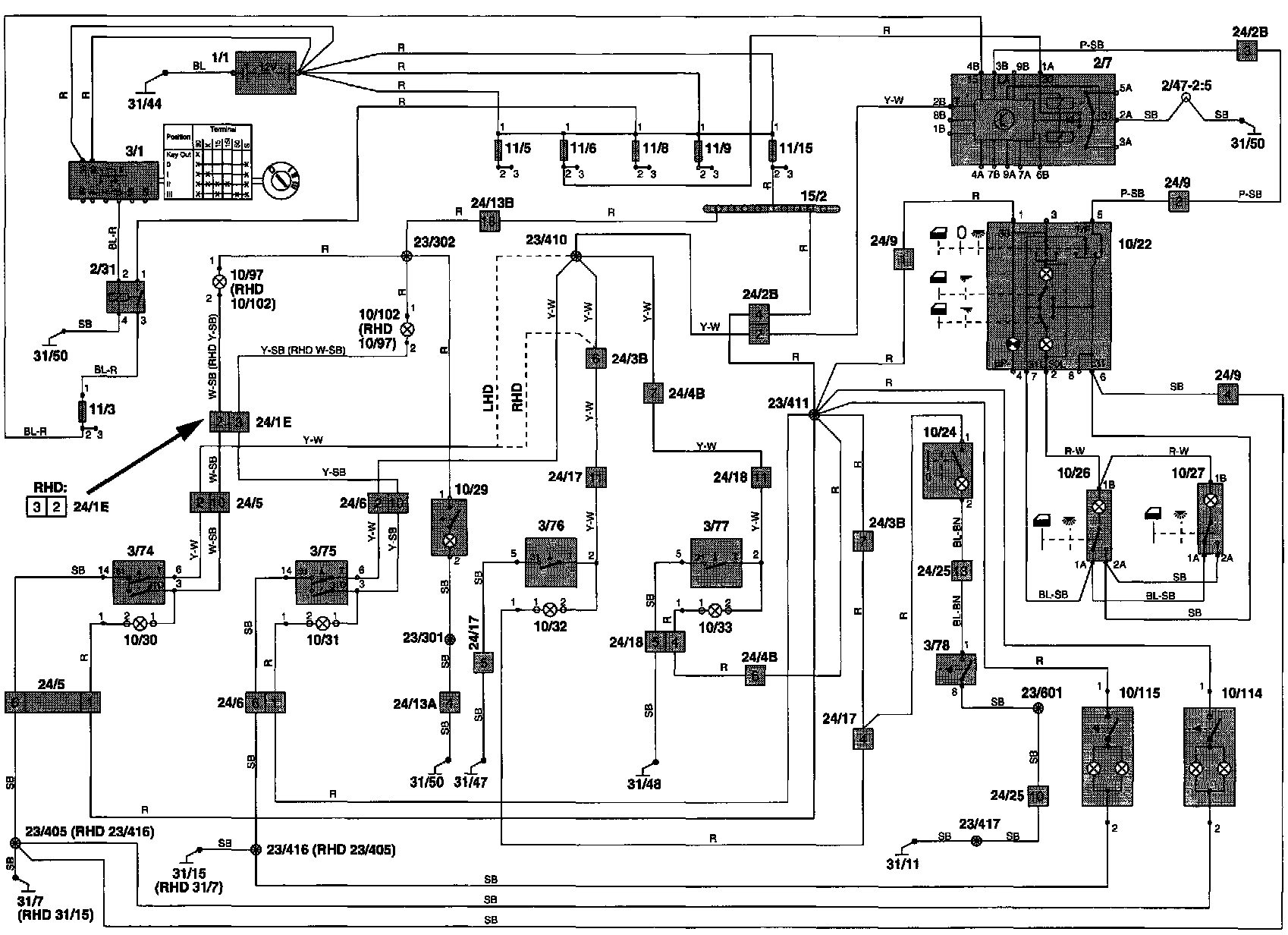

5 Door:
Wiring Diagram
List of components
1/1 Battery
2/7 Central locking relay/interior lighting delay
2/31 Relief relay 15+
2/47-2 Relay, driver's door, 2-STEP central locking
3/1 Ignition
3/74 Locking module, left hand front
3/75 Locking module, right hand front
3/76 Locking module, left hand rear
3/77 Locking module, right hand rear
3/78 Locking module tailgate
10/20 Licenseplate light
10/22 Passenger compartment ceiling light
10/24 Luggage compartment lighting
10/26 Reading lamp, left hand rear
10/27 Reading lamp, right hand rear
10/29 Glove compartment light
10/30 Door warning light, left hand front
10/31 Door warning light, right hand front
10/32 Door warning light, left hand rear
10/33 Door warning light, right hand rear
10/97 Interior light, driver's side
10/102 interior light, passenger side
10/114 Vanity mirror light left hand side
10/115 Vanity mirror light right hand side
11/1-40 Fuses
15/2 30-bus in electrical control center
23/301
-601 Branching points
24/1 Connector, dashboard harness - center harness
24/2 Connector, center harness - engine compartment harness
24/3 Connector, center harness - left hand rocker panel harness
24/4 Connector, center harness - right hand rocker panel harness
24/5 Connector, 24-pin, center harness - left hand front door harness
24/6 Connector, 24-pin, center harness - right hand front door harness
24/9 Connector, 4-pin, center harness - ceiling harness
24/13 Connector, engine compartment harness - dashboard harness
24/17 Connector, 11-pin, left hand rocker panel harness - left hand rear door harness
24/18 Connector, 11-pin, right hand rocker panel harness - right hand rear door harness
24/25 Connector, 14-pin, left hand rocker panel harness - left hand rear door harness
31/7 Ground point, A-post, driver's side
31/11 Ground point, luggage compartment left hand side
31/15 Ground point, A-post, passenger side
31/44 Ground point, engine compartment (ground connection battery-body)
31/47 Ground point, left hand cross-member
31/48 Ground point, right hand cross-member
31/50 Ground point, electrical control center output ground
