Body - Outer Body Side Panel Requires Modification
SECTION8
GROUP
81
NO.
813
DATE
Apr.-97
Modifying outer body side, replacing
850
REFERENCE: TP 32395/2, SECTION 8(81,83) BODY AND GLASS; 850 1992-
Modifying outer body side, replacing
Background: Outer body side S70/V70 to be used as basis for 850. Certain adjustments are however necessary. Bumper mounting is changed on S70/V70, tour holes must be sealed if body side is to be used on 850. Sealing procedure shown in this bulletin.
B-post on S70/V70 has been strengthened with thicker panel. This means that longer bolts are to be used when mounting striker plate when body side for 850 is used.
Materials: Sealant 1 9170187-0
Bolt 2 980498-0
Sealing hole

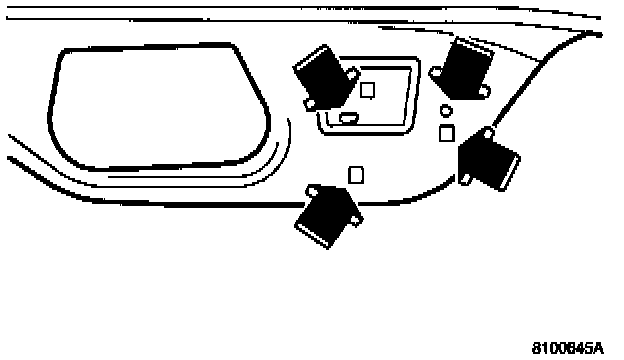

Seal the holes as marked in the illustration with sealant P/N 9170187-0.
Cut out appropriate sizes.
Rear bumper mounting - left-hand side.
Rear bumper mounting - right-hand side.
WARRANTY STATEMENT: Claims may be submitted under the New Car Limited Warranty when a manufacturing defect is present using claim type: 01
Operation No. Labor description Time allowance
81913-3 Body side outer adjustment 0.1 hr
