Fuel Line Cover Clip - Replacement

NO.
833

Group
23

SECTION
2

DATE
Apr. -97

Replacement of fuel line cover clip
850, S70/V70

REFERENCE: NONE

Replacement of fuel line cover clip

Background:
When working with the fuel lines under the car when the rail has been removed new clips should always be used when reinstalling.

Materials: P/N:

Service Kit 9445447-7

Method

Removing rail

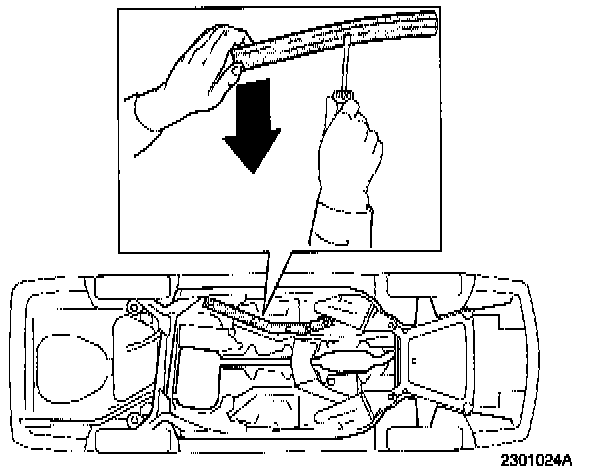

- Remove rail by carefully bending it down and screwing out the clip.

Installing rail





- Attach the new clips (A) and sleeves (B) to the rail. Firmly press the clips and sleeves together.

- Position the cables in the relevant duct in the rail.

- Press the clip into place on the bolt (C).

- Screw the clips into place (A).

WARRANTY STATEMENT:
Claims may be submitted under the New Car Limited Warranty when a manufacturing defect is present using claim type: 01

Operation No. Labor description Time allowance

23933-2 Replacing fuel line cover clips 0.2 hr
