Windshield - Upper Trim Strip Comes Loose
SECTION8
GROUP
84
NO.
817
DATE
Feb. -97
Corrective action if the upper trim strip on the windshield comes loose 850
REFERENCE:
TP 32395/2, SECTION 8 (81, 84) BODY AND GLASS; 850 1992-

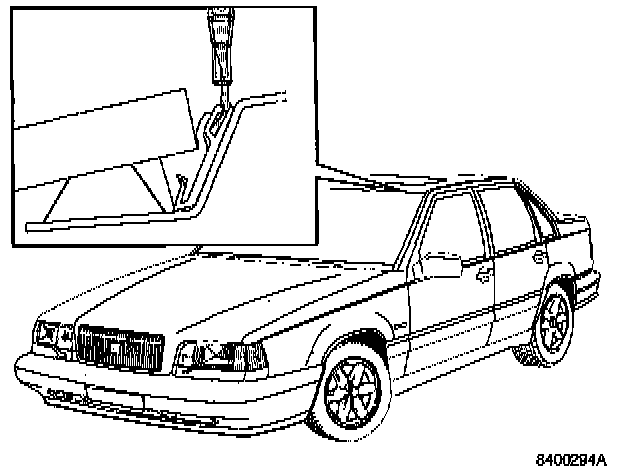

Corrective action if the upper trim strip on the windshield comes loose
Background: The upper trim Strip on the windshield can come loose. If there is a complaint from the customer, secure the trim strip as follows.
Materials: Adhesive 277062-6
Pipette 9511029-2
H Cleaner 1161436-9
Method
- Remove trim strip.
- Wipe trim strip and holder with cleaner H.
- Apply adhesive to the holder with a pipette.
- Install trim strip.
Remove adhesive residue with cleaner H.
WARRANTY STATEMENT: Claims may be submitted under the New Car Limited Warranty when a manufacturing defect is present using claim type: 01
Operation No. Labor description Time allowance
84917-2 Bonding upper trim Strip according 0.2 hr
