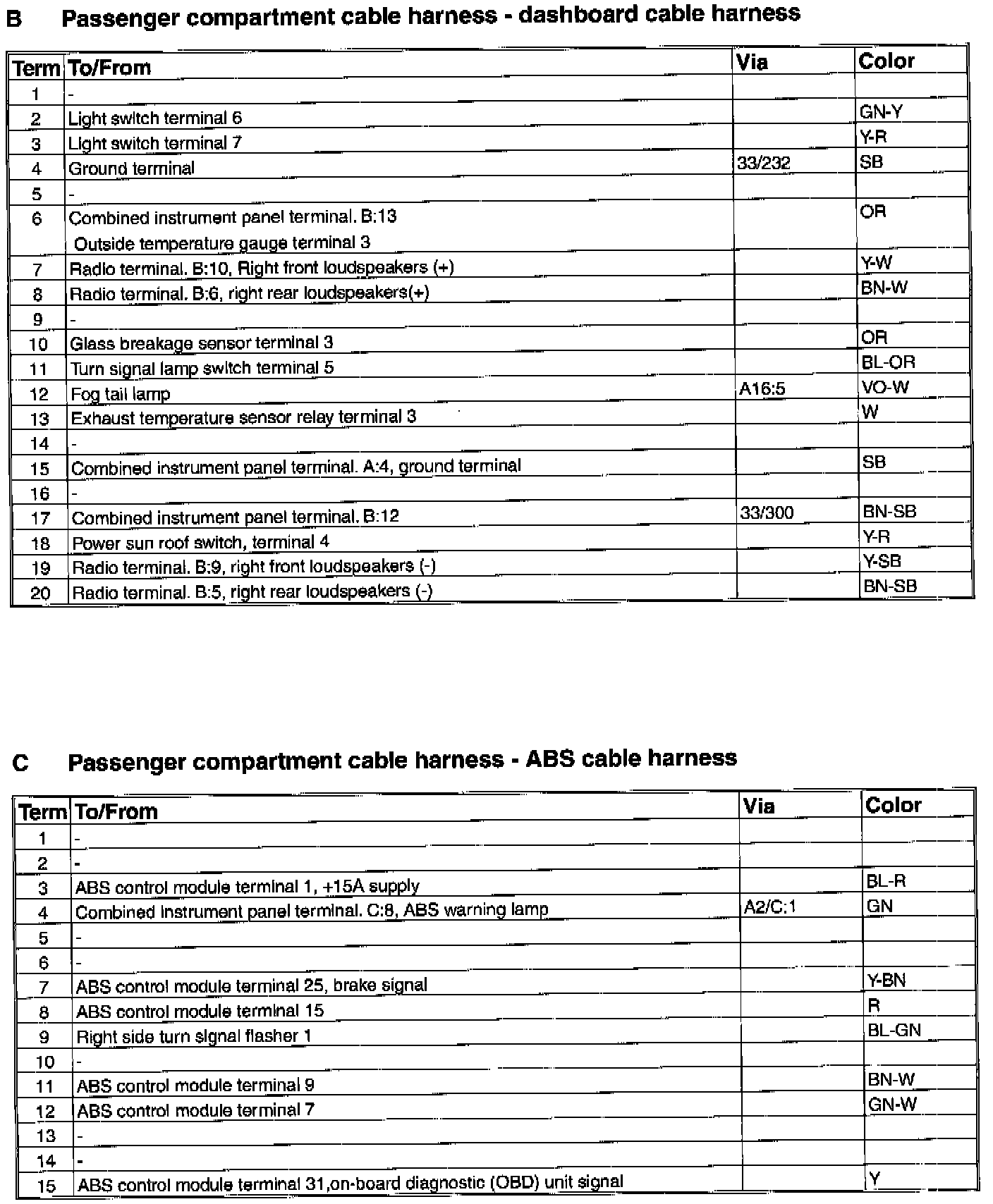

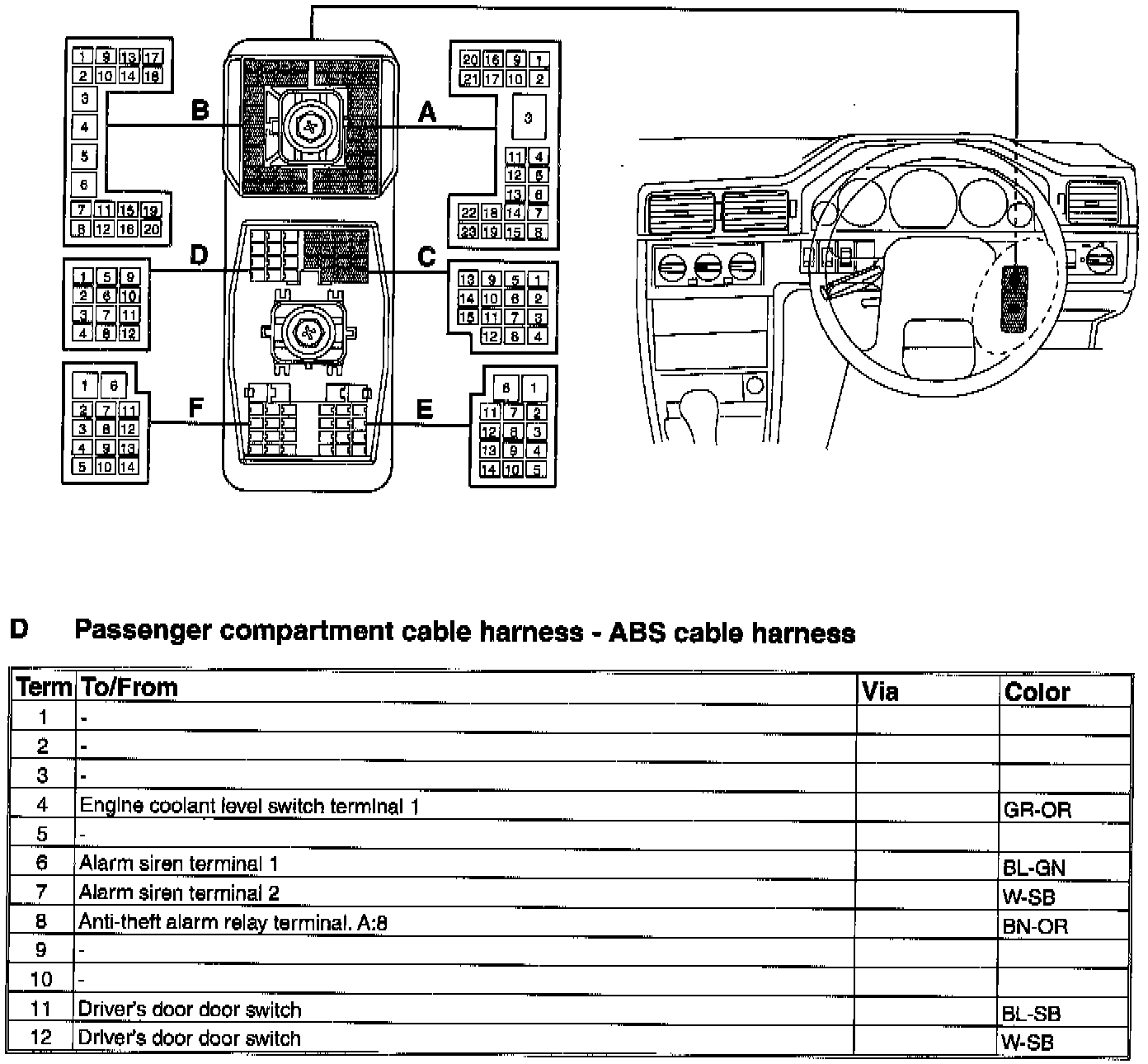

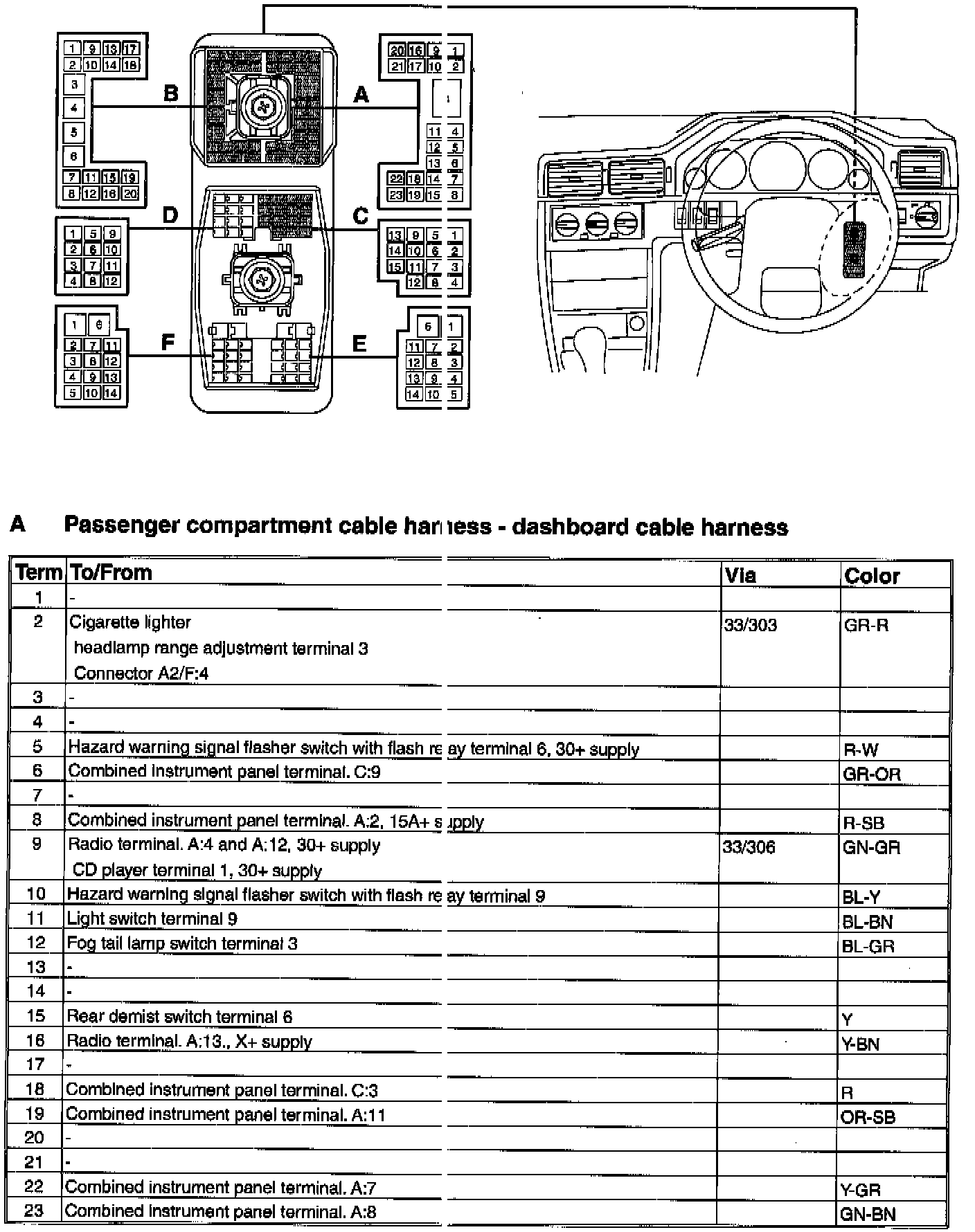

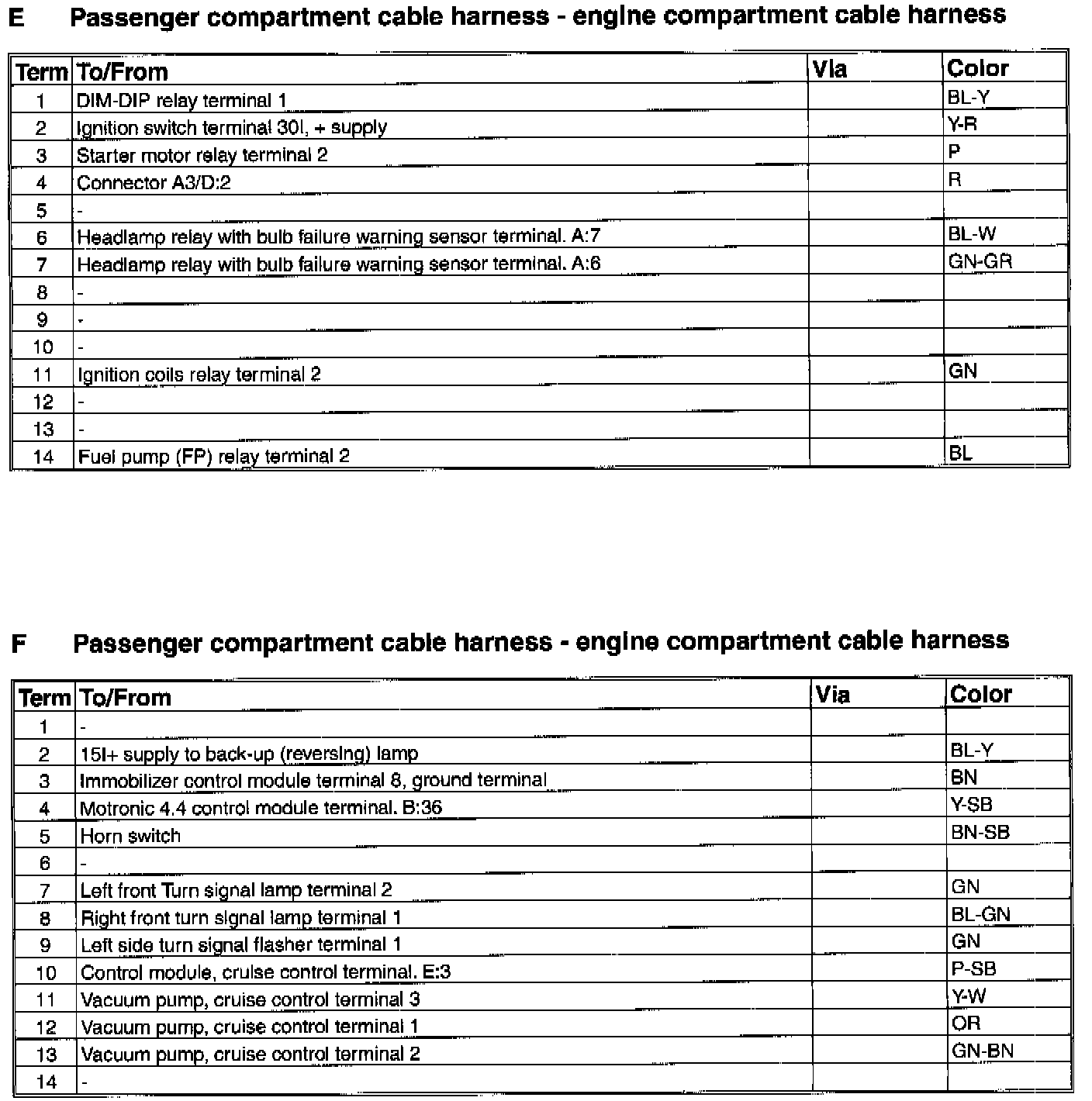

Connector A6 Under Dashboard, Right of Steering Column
Connector A6 Under Dashboard, Right of Steering Column
