Back-Up (Reversing) Lamps

Wiring Diagram

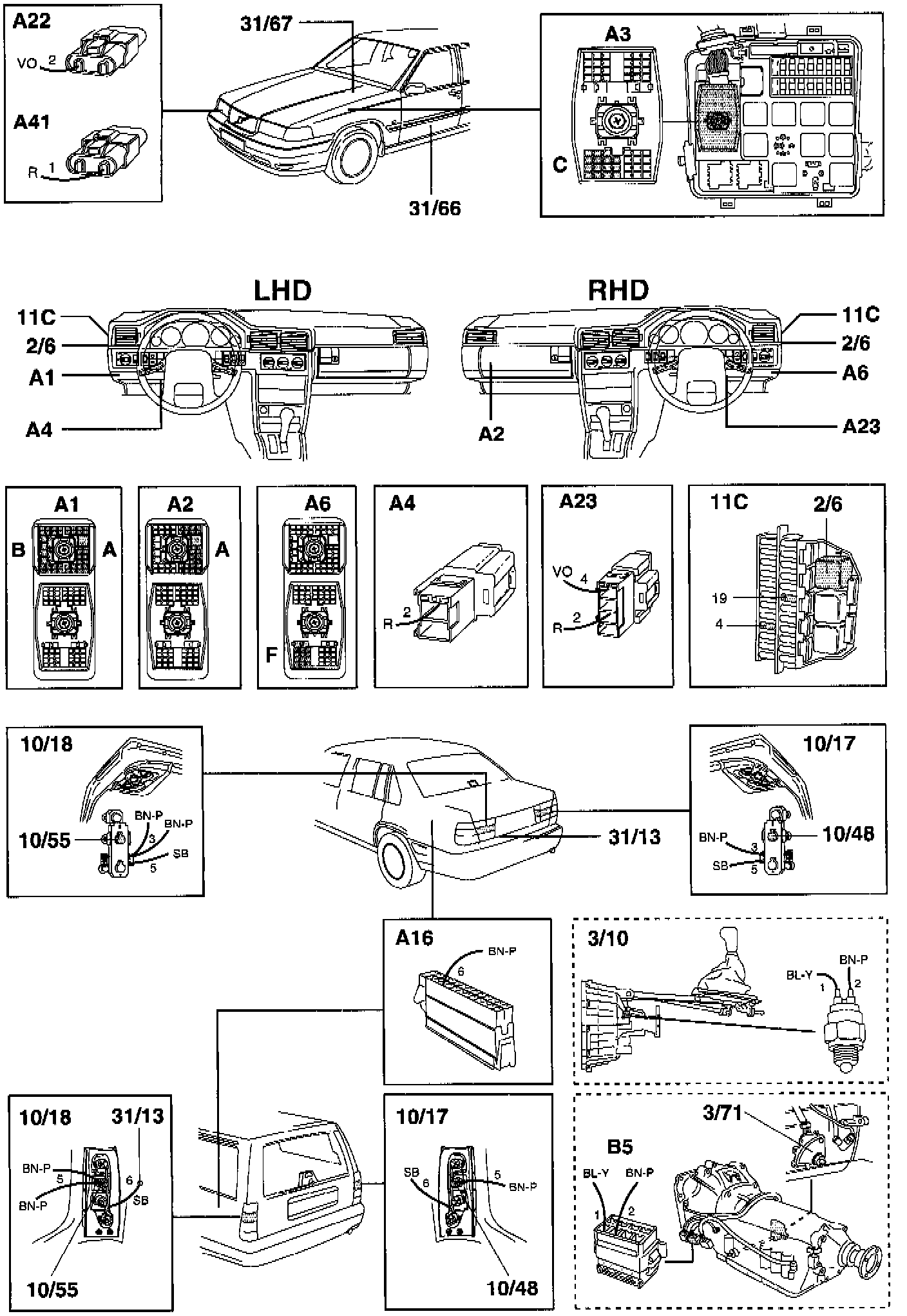

Component Location

Component I.D. List
A1 Multi-connector under dashboard at left A-post
A2 Multi connector under dashboard at left A pillar
A3 Multi-connector in relay/fusebox in engine compartment
A4 2-pin connector engine compartment harness - passenger compartment cable harness
A6 Multi-connector (under dashboard to right of steering column)
A16 Connector 24-pin passenger compartment harness -cargo compartment harness
A22 2-pin connector engine compartment harness - Anti-lock braking system ABS harness
A23 4-pin connector Passenger compartment harness - Anti-lock braking system ABS harness
A41 2-pin connector Anti-lock braking system ABS harness - engine compartment harness
B5 Connector 8-pin at automatic transmission
2/6 Overload relay +15I
3/10 Back-up (reversing) lamps switch
3/71 Gear position sensor
10/17 Right tail lamp unit
10/18 Left tail lamp unit
10/48 Right back-up (reversing) lamp
10/55 Left back-up (reversing) lamp
11C/1-24 Fuses in fusebox in passenger compartment
31/13 Ground terminal in cargo area
31/66 Ground point left seat support
31/67 Ground point right seat support
