High and Low Beams

Wiring Diagram

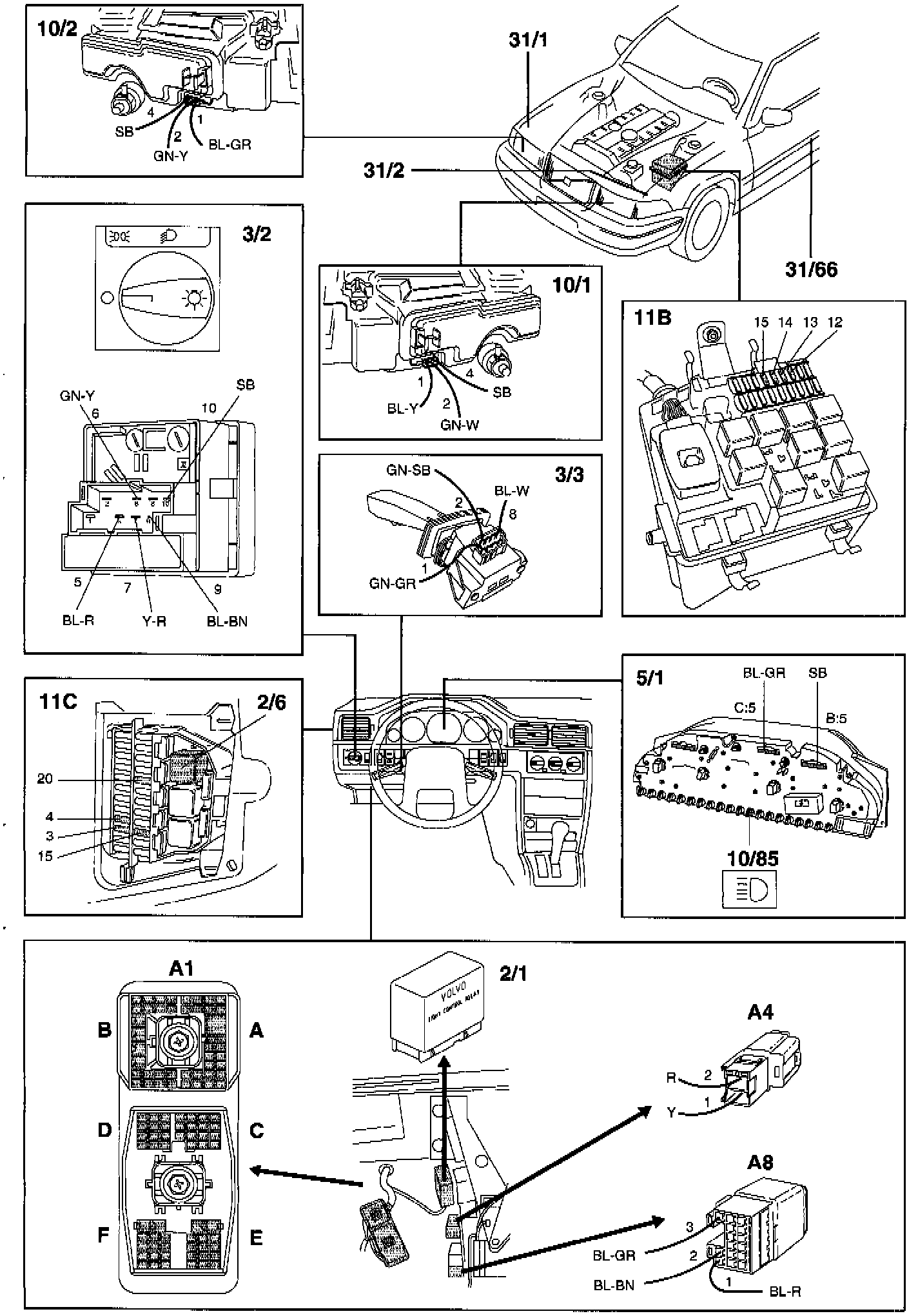

Component Location

Component I.D. List
A1 Multi-connector under dashboard at left A-post
A4 2-pin connector engine compartment harness - passenger compartment cable harness
2/1 Main headlamp relay with bulb failure warning sensor
2/6 Overload relay +15I
3/2 Light switch
3/3 Turn indicator/ DIM-DIP switch
5/1 Combined instrument panel
10/1 Left front lamp unit
10/2 Right front lamp unit
10/85 Indicator lamp high beam
11B/1-18 Fuses in relay/fusebox in engine compartment
11C/1-24 Fuses in fusebox in passenger compartment
31/1 Ground terminal right front wing
31/2 Ground terminal left front wing
31/66 Ground point left seat support
