Power Door Mirrors

Wiring Diagram

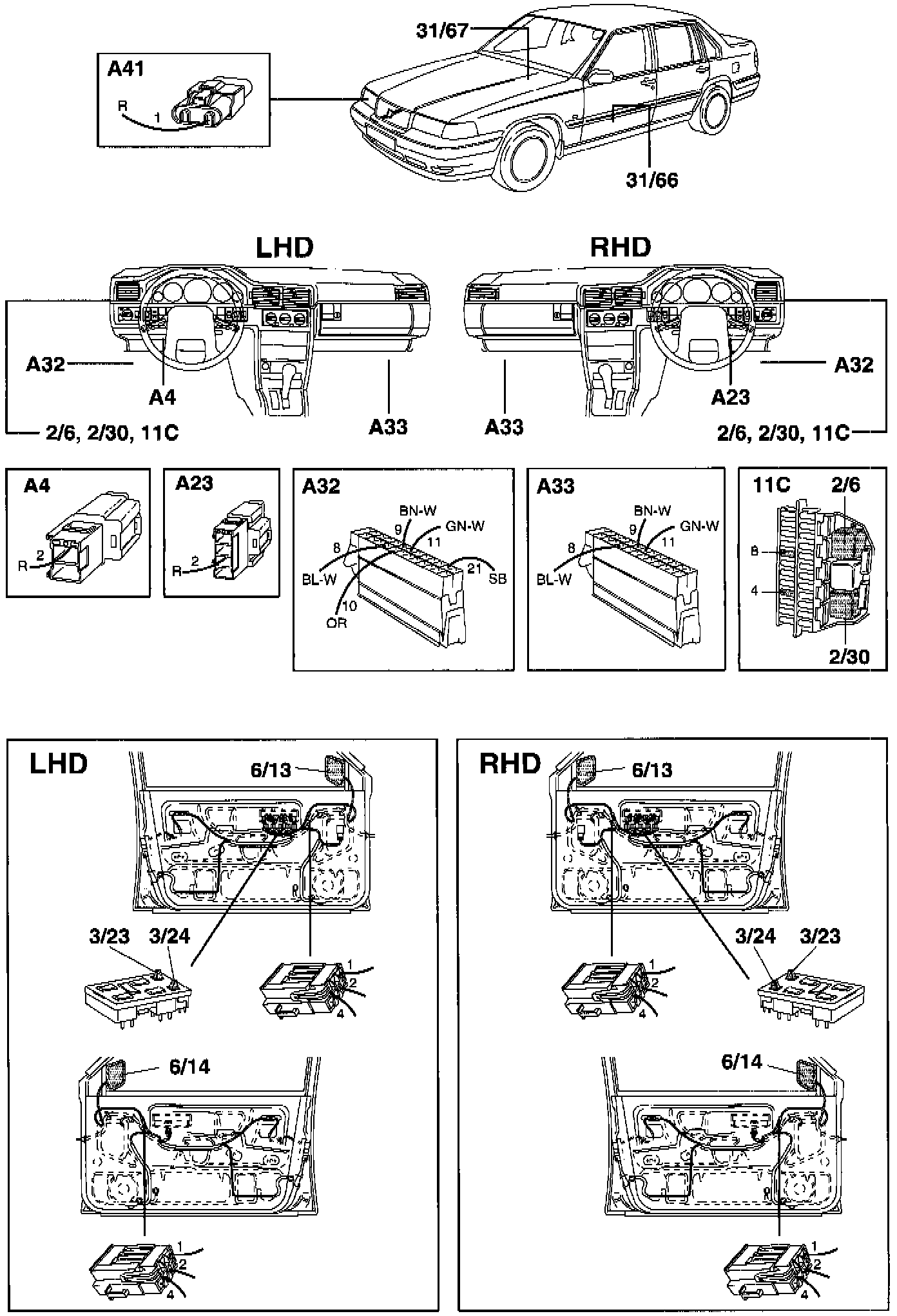

Component Location

Component I.D. List
A4 2-pin connector engine compartment harness - passenger compartment cable harness
A23 4-pin connector Passenger compartment harness - Anti-lock braking system ABS harness
A32 Connector 24-pin Passenger compartment harness - driver's door harness
A33 Connector 24-pin Passenger compartment harness - front passenger door harness
A41 2-pin connector Anti-lock braking system ABS harness - engine compartment harness
2/6 Overload relay +15I
2/30 Overload relay, +X
3/23 Driver's side power mirror switch
3/24 Passenger side power mirror switch
6/13 Driver's side power door mirror
6/14 Passenger side power door mirror
11C/1-24 Fuses in fusebox in passenger compartment
31/66 Ground point left seat support
31/67 Ground point right seat support
