Starter System

Wiring Diagram

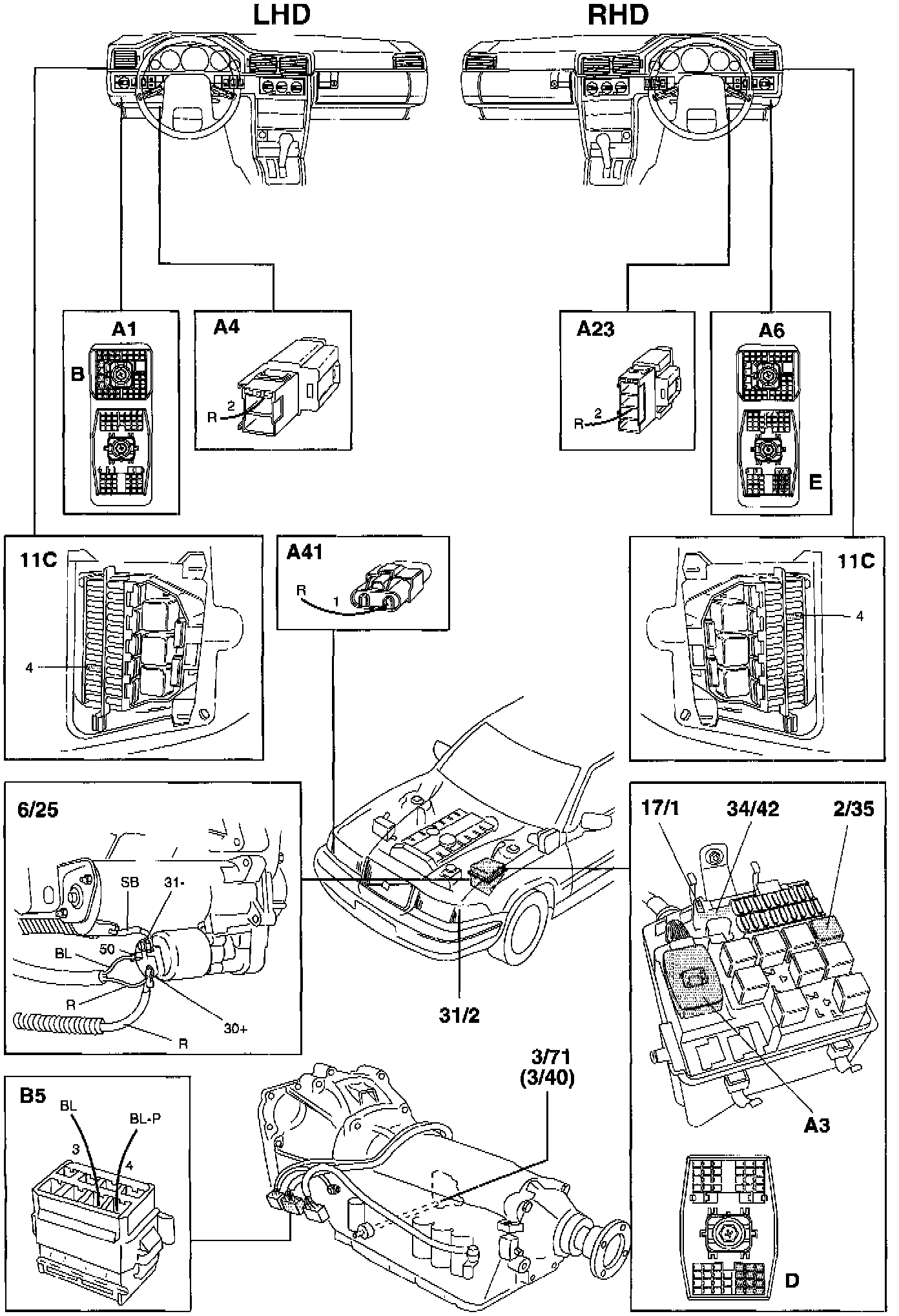

Component Location

Component I.D. List
A1 Multi-connector under dashboard at left A-post
A3 Multi-connector in relay/fusebox in engine compartment
A4 2-pin connector engine compartment harness - passenger compartment cable harness
A6 Multi-connector (under dashboard to right of steering column)
A23 4-pin connector Passenger compartment harness - Anti-lock braking system ABS harness
A41 2-pin connector Anti-lock braking system ABS harness - engine compartment harness
B5 Connector 8-pin at automatic transmission
2/35 Starter motor relay
3/40 Park/Neutral position (PNP) switch
3/71 Gear position sensor
6/25 Starter motor
11C/1-24 Fuses in fusebox in passenger compartment
17/1 Service socket for turning over starter motor
31/2 Ground terminal left front wing
34/42 Terminal block 22-pin: In relay/fusebox engine compartment
