Special Tools

Tool No. 999 1801-3 Standard handle, drifts





Tool No. 999 2520-8 Stand, for fixtures





Tool No. 999 2810-3 Lifting yoke, removal-/installation engine





Tool No. 999 5112-1 Gear sector, locking flywheel





Tool No. 999 5199-8 Counterhold, removal/installation camshaft pulley

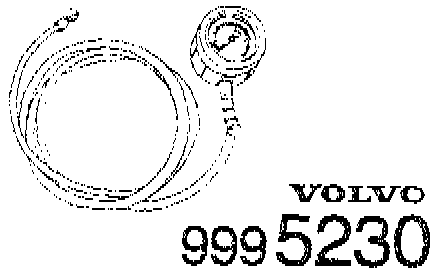

Tool No. 999 5230-1 Manometer, measuring boost pressure etc





Tool No. 999 5270-7 Oil pressure gauge





Tool No. 999 5297-0 Fixture, for engine stand 2520





Tool No. 999 5428-1 Lifting yoke, engine





Tool No. 999 5430-7 Assembly tool, installation rear sealing flange





Tool No. 999 5433-1 Counterhold, removal/installation vibration damper





Tool No. 999 5449-7 Drift, installation front camshaft seal





Tool No. 999 5450-5 Drift, installation rear camshaft seal





Tool No. 999 5451-3 Locking tool, crankshaft alignment





Tool No. 999 5452-1 Locking tool, camshafts alignment





Tool No. 999 5453-9 Holder, front camshafts





Tool No. 999 5454-7 Press tool, installation camshafts





Tool No. 999 5455-4 Drift, installation oil pump seal

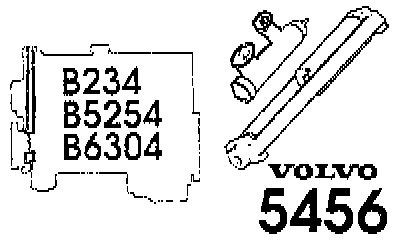

Tool No. 999 5456-2 Press tool, compressing belt tensioner





Tool No. 999 5458-8 Oil filter key, oil filter removal





Tool No. 999 5459-6 Lifting eyelet, rear of engine





Tool No. 999 5460-4 Lifting hook, lifting engine





Tool No. 999 5462-0 Extractor fork, removal drive shaft





Tool No. 999 5464-6 Lifting eyelet, lifting engine (exhaust manifold)





Tool No. 999 5474-5 Radiator support





Tool No. 999 5488-5 Sealing plug (1), when removing drive shafts





Tool No. 999 5533-8 Holder (5), removal/installation injectors





Tool No. 999 5843-1 Vacuum pump





Tool No. 99 9689-4 Compression tester


Tool No. 999 5539-5 Drift

Tool No. 999 5919-1 Extractor, replacement of crankshaft/camshaft seal used with hook 938 9733
