Alarm Components
Alarm components
Horn 16/19:
Location Of Components, Alarm Components (Horn 16/19):
On the cowl panel.
Siren 16/35:
Location Of Components, Alarm Components (Siren 16/35):
Located in the right fender liner
Ultrasonic sensors 7/96, 7/97:
Location Of Components, Alarm Components (Ultrasonic Sensors 7/96, 7/97):
Located in both B-posts.
Glass breakage sensor 7/101:
Location Of Components, Alarm Components (Glass Breakage Sensor):
Located under the dashboard by the passenger side loudspeaker.
Hood switch 3/62:
Location Of Components, Alarm Components (Hood switch 3/62):
Integrated into the left hood catch.
Central locking motor for opening the fuel tank filler cover 6/37:
Location Of Components, Alarm Components (Central Locking Motor for Opening the Fuel Tank Filler Cover 6/37):
Located by the fuel tank filler pipe.

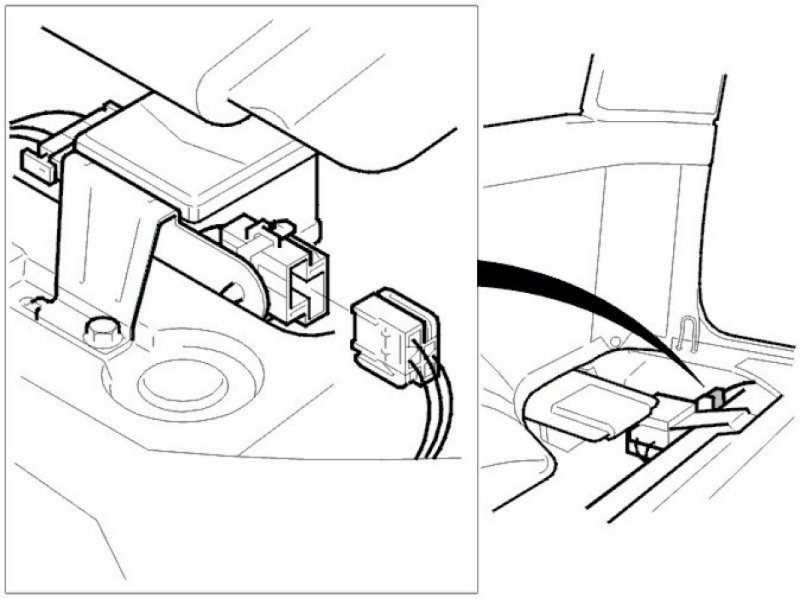

Tilt sensor 7/100:
Location Of Components, Alarm Components (Tilt Sensor 7/100):
Located in right wheel well (4-door)
Tilt sensor 7/100:
Location Of Components, Alarm Components (Tilt Sensor 7/100):
Located in right wheel well (5-door)
