Seat Control Panel

Removing

WARNING: Seats with SIPS bag must always have the transport safety device installed in order to avoid accidentally activating the system when working on the seat.

Preparations
- Make a note of radio code if anti-theft coded radio is installed.
- Remove battery negative lead.
- Cars with SIPS airbag: install the safety device for the SIPS bag in accordance with HHB1.
- Remove seat from car.

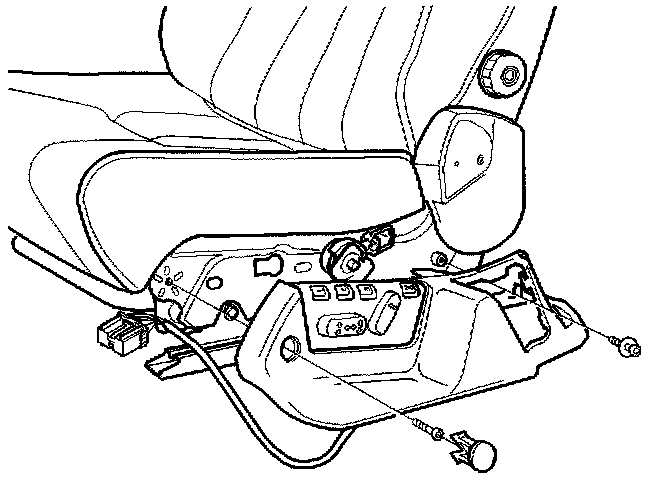

Removing the side compartment




Remove:
- The plug and the two screws for the side compartment.
- Side storage compartment from the seat.

Disconnection of the connectors

Seat with memory function:




- Disconnect 16-pin connector D from the control module.

Seat without memory function




- Separate the connectors to the backrest and seat motors.

HHD4 Removing the control panel




Remove:
- Screws on the rear of the side compartment.
- The control panel.

Reinstalling
Reinstall in reverse order.
- Reinstall the seat in accordance with HHB5.
- Cars with SIPS airbag: remove the safety device.
- Replace battery negative lead.
