S90 L6-2.9L VIN 96 B6304S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

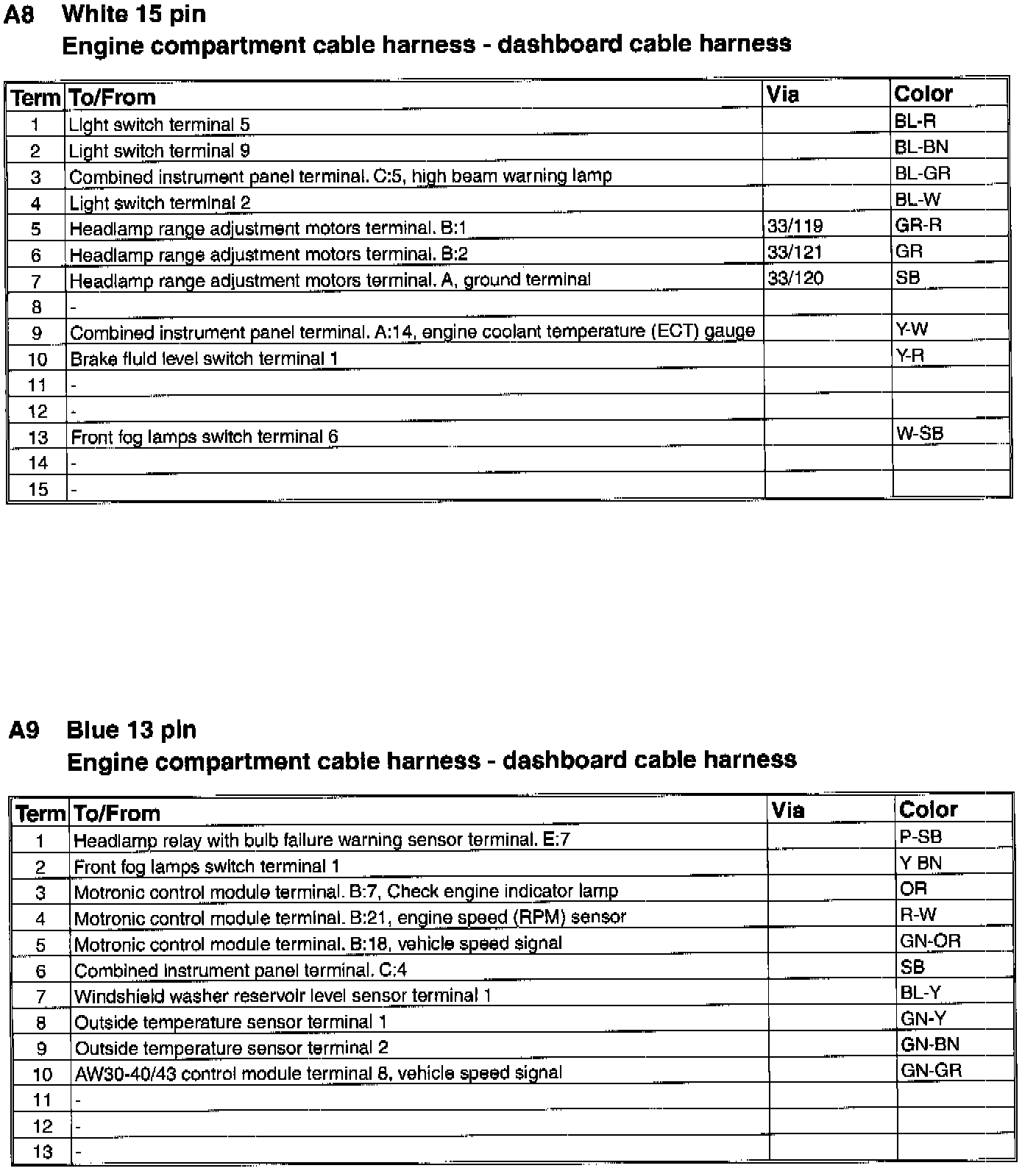

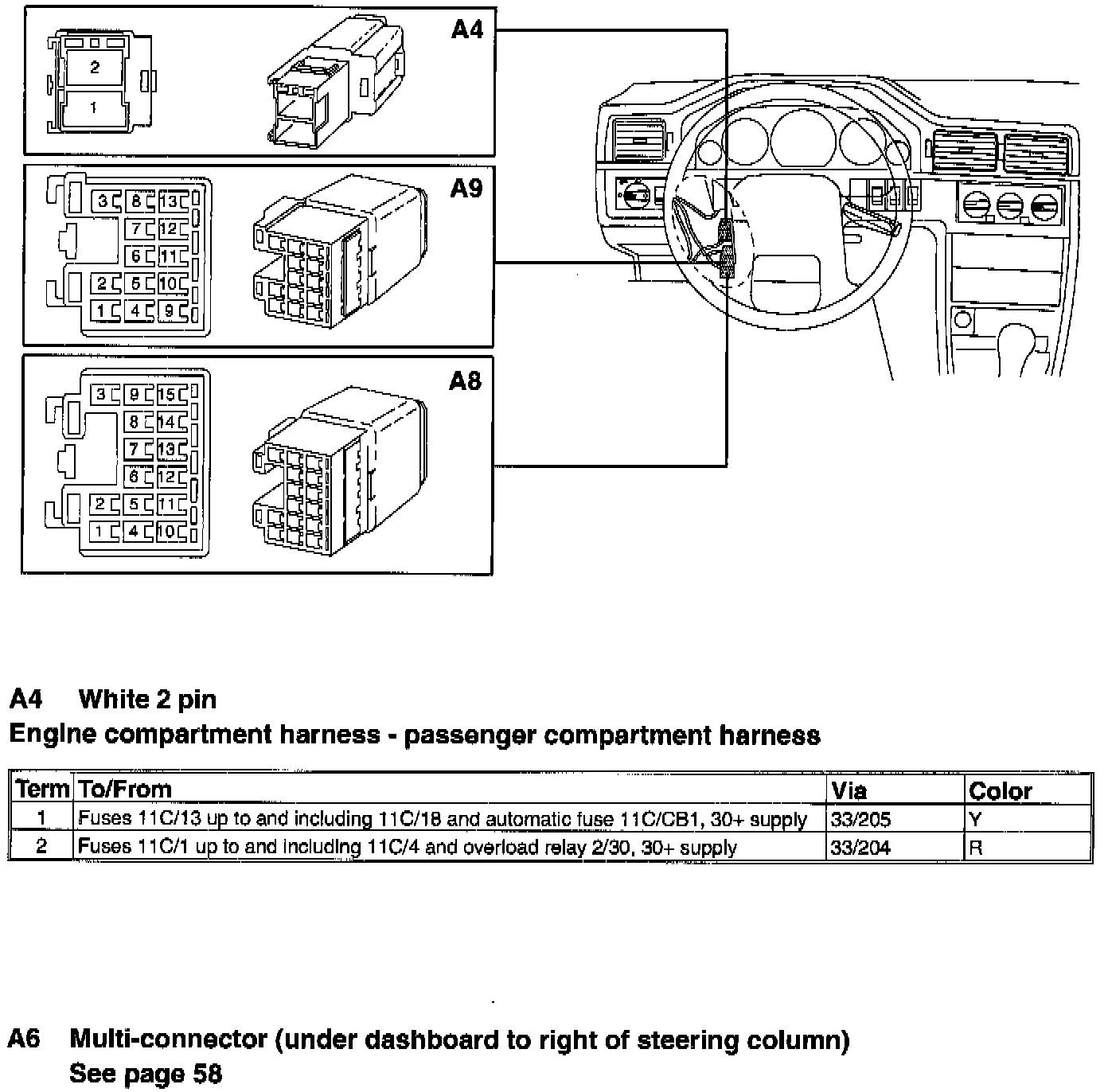

Connectors A4, A6, A8 and A9
Connectors A4, A6, A8 and A9
