System Diagram

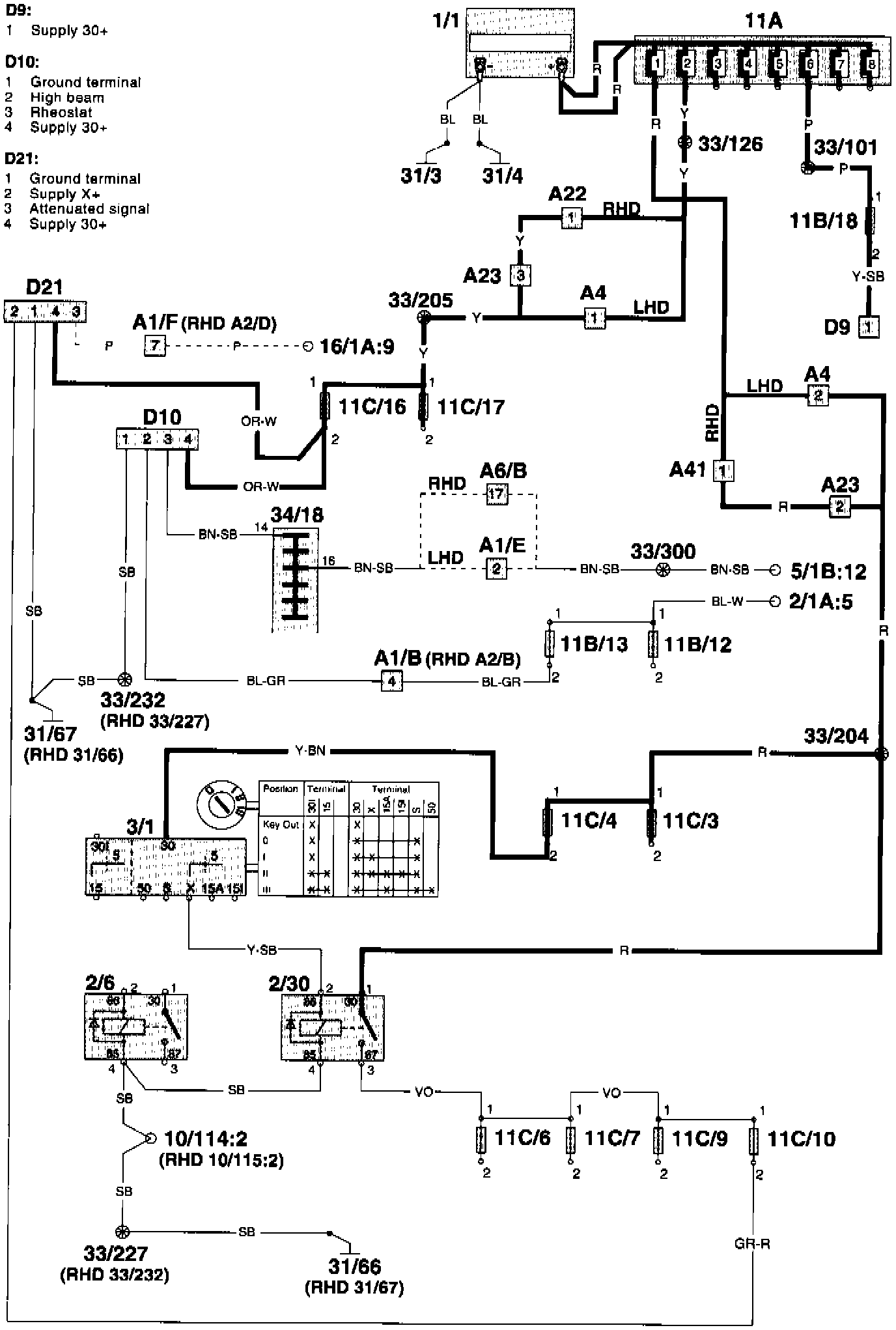

Wiring Diagram

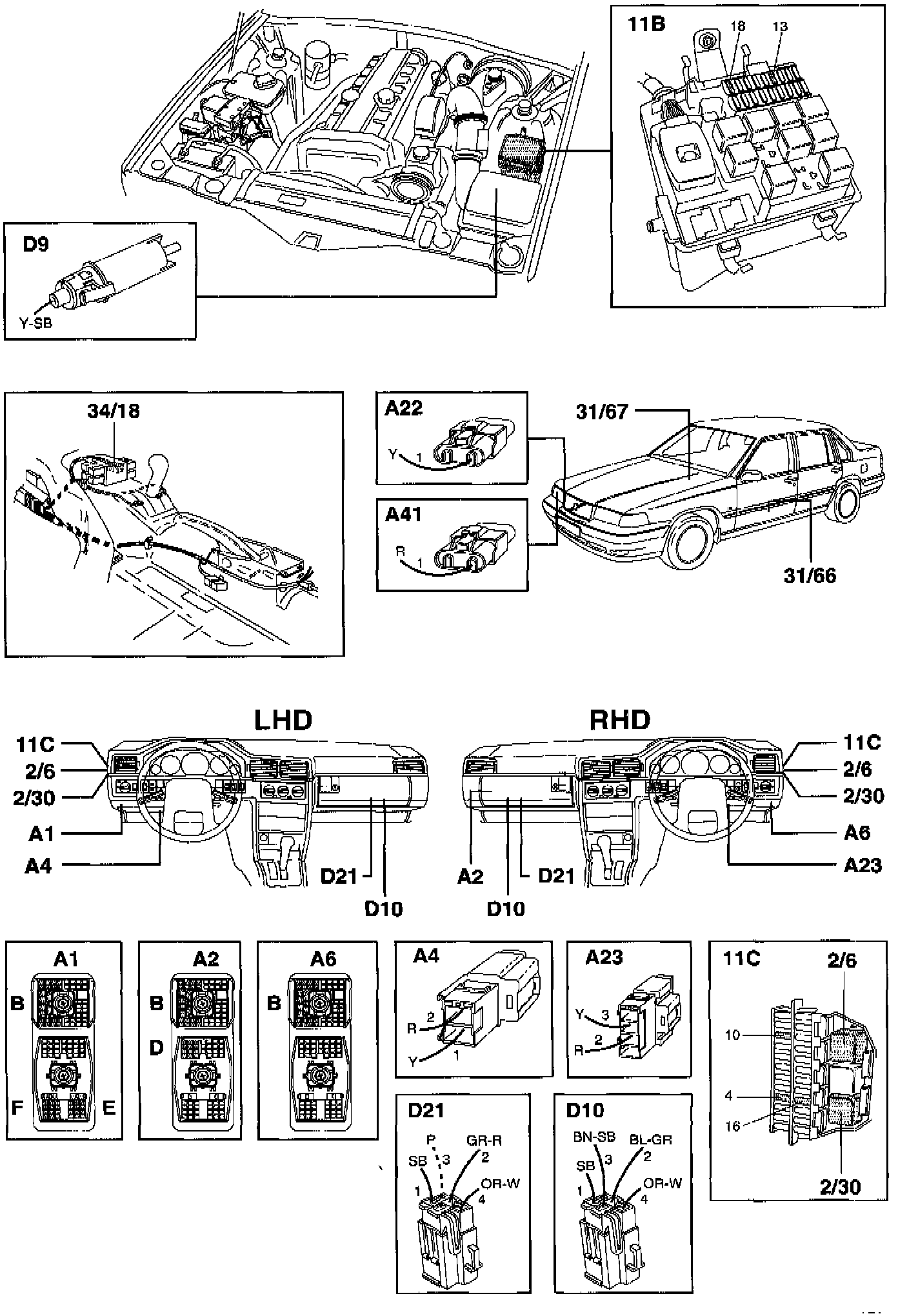

Component Location

Component I.D. List
A1 Multi-connector under dashboard at left A-post
A2 Multi connector under dashboard at left A pillar
A4 2-pin connector engine compartment harness - passenger compartment cable harness
A6 Multi-connector (under dashboard to right of steering column)
A22 2-pin connector engine compartment harness - Anti-lock braking system ABS harness
A23 4-pin connector Passenger compartment harness - Anti-lock braking system ABS harness
A41 2-pin connector Anti-lock braking system ABS harness - engine compartment harness
D9 Connector 1-pin, engine compartment harness - auxiliary lamps
D10 Connector 4-pin, passenger compartment harness - accessories (parking heater)
D21 Connector 4-pin Passenger compartment harness - accessories (Carphone)
2/6 Overload relay +15I
2/30 Overload relay, +X
11B/1-18 Fuses in relay/fusebox in engine compartment
11C/1-24 Fuses in fusebox in passenger compartment
31/66 Ground point left seat support
31/67 Ground point right seat support
34/42 Terminal block 22-pin: In relay/fusebox engine compartment
