Antilock Brakes / Traction Control Systems

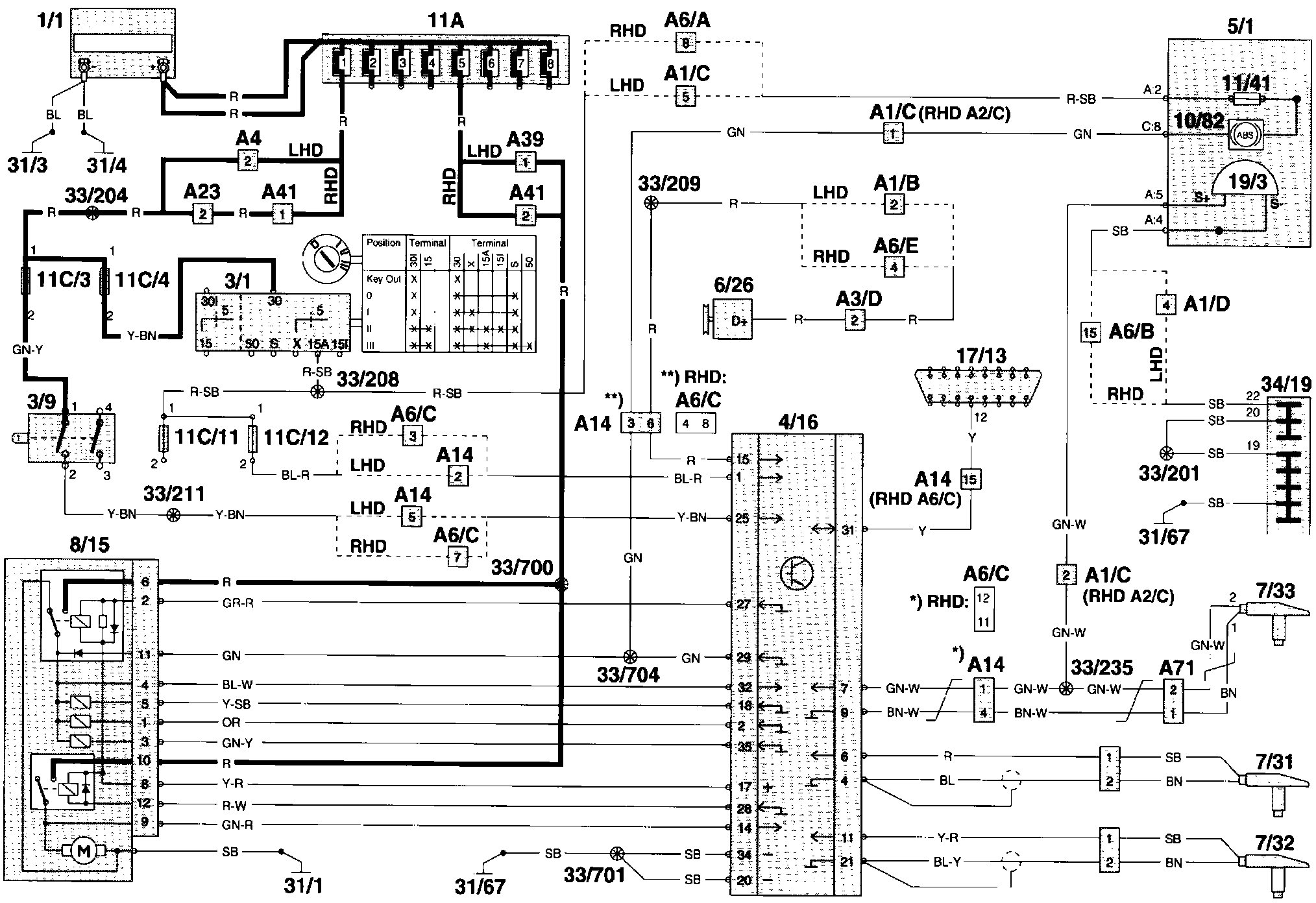

Wiring Diagram







Component Location

Component I.D. List
A1 Multi-connector under dashboard at left A-post
A2 Multi connector under dashboard at left A pillar
A3 Multi-connector in relay/fusebox in engine compartment
A4 2-pin connector engine compartment harness - passenger compartment cable harness
A6 Multi-connector (under dashboard to right of steering column)
A14 Connector 15-pin ABS harness - passenger compartment harness
A23 4-pin connector Passenger compartment harness - Anti-lock braking system ABS harness
A39 Connector 1-pin ABS harness - engine compartment harness
A41 2-pin connector Anti-lock braking system ABS harness - engine compartment harness
A71 Connector 2-pin Passenger compartment harness - rear axle sensor harness
3/9 Stop (brake) lamp switch
4/16 ABS control module
5/1 Combined instrument panel
6/26 Generator
7/31 ABS sensor, front left
7/32 ABS sensor, front right
7/33 Speedometer pick-up and ABS Anti-lock braking system
8/15 ABS modulator
10/82 Indicator lamp ABS
11C/1-24 Fuses in fusebox in passenger compartment
17/13 Data link connector DLC
31/1 Ground terminal right front wing
31/67 Ground point right seat support
34/19 Terminal block 22-pin: by parking brake bracket
