Home >> Volvo >> 1998 >> S90 L6-2.9L VIN 96 B6304S >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Backup Lamp >> Back-Up (Reversing) Lamps Function Diagram

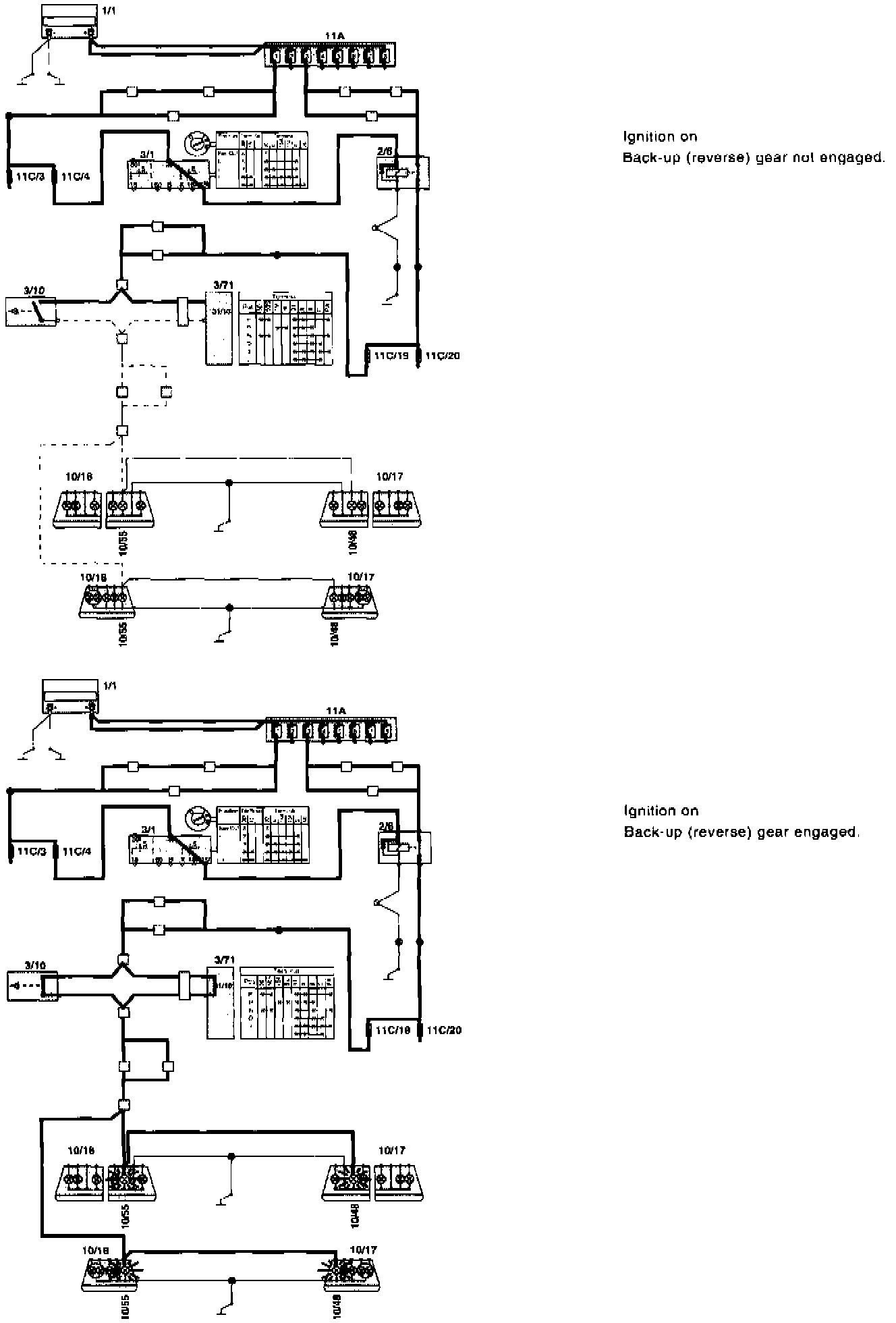

Back-Up (Reversing) Lamps Function Diagram
