Operation CHARM: Car repair manuals for everyone.
Home >> Volvo >> 1998 >> S90 L6-2.9L VIN 96 B6304S >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Headlamp >> High and Low Beams Function Diagram

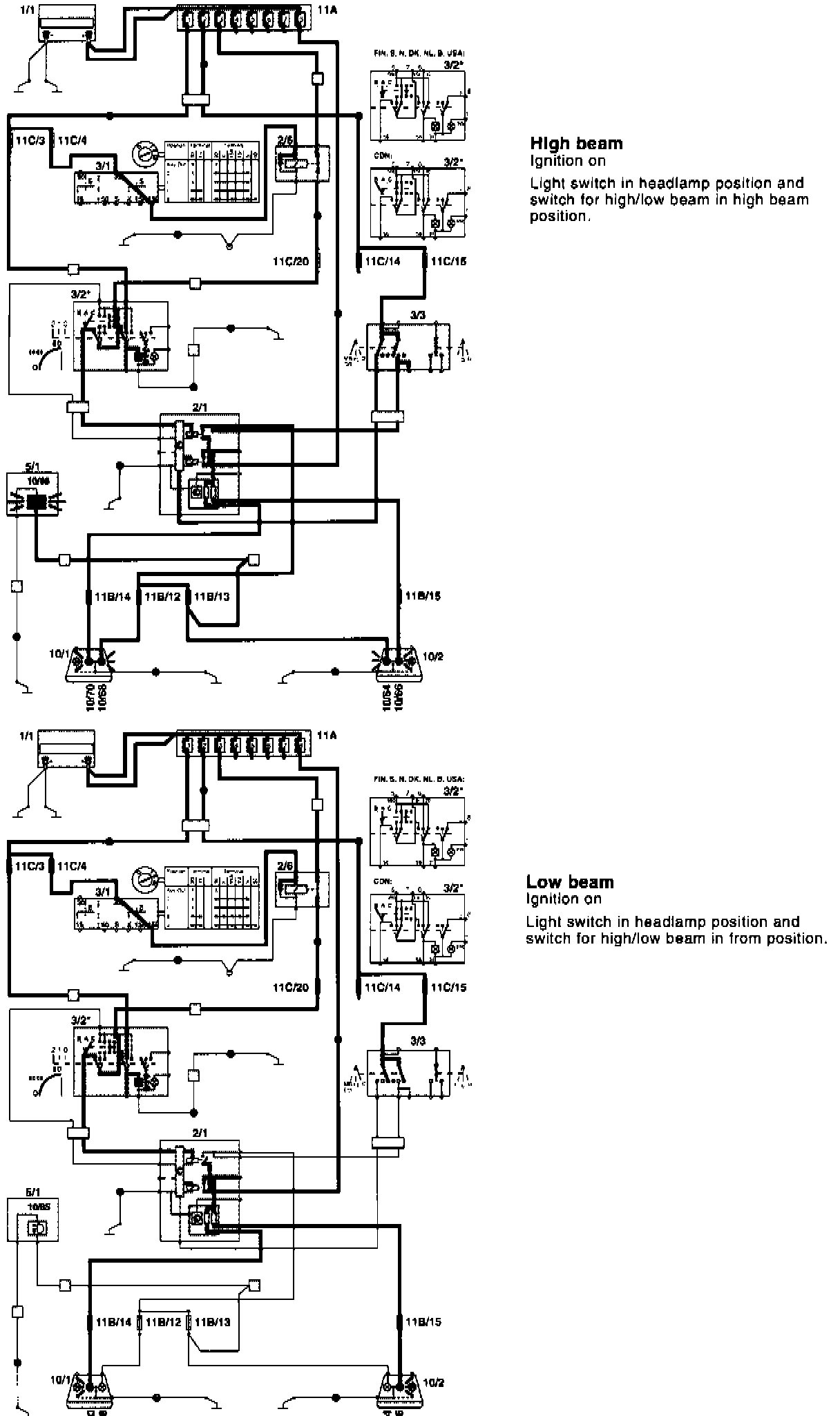

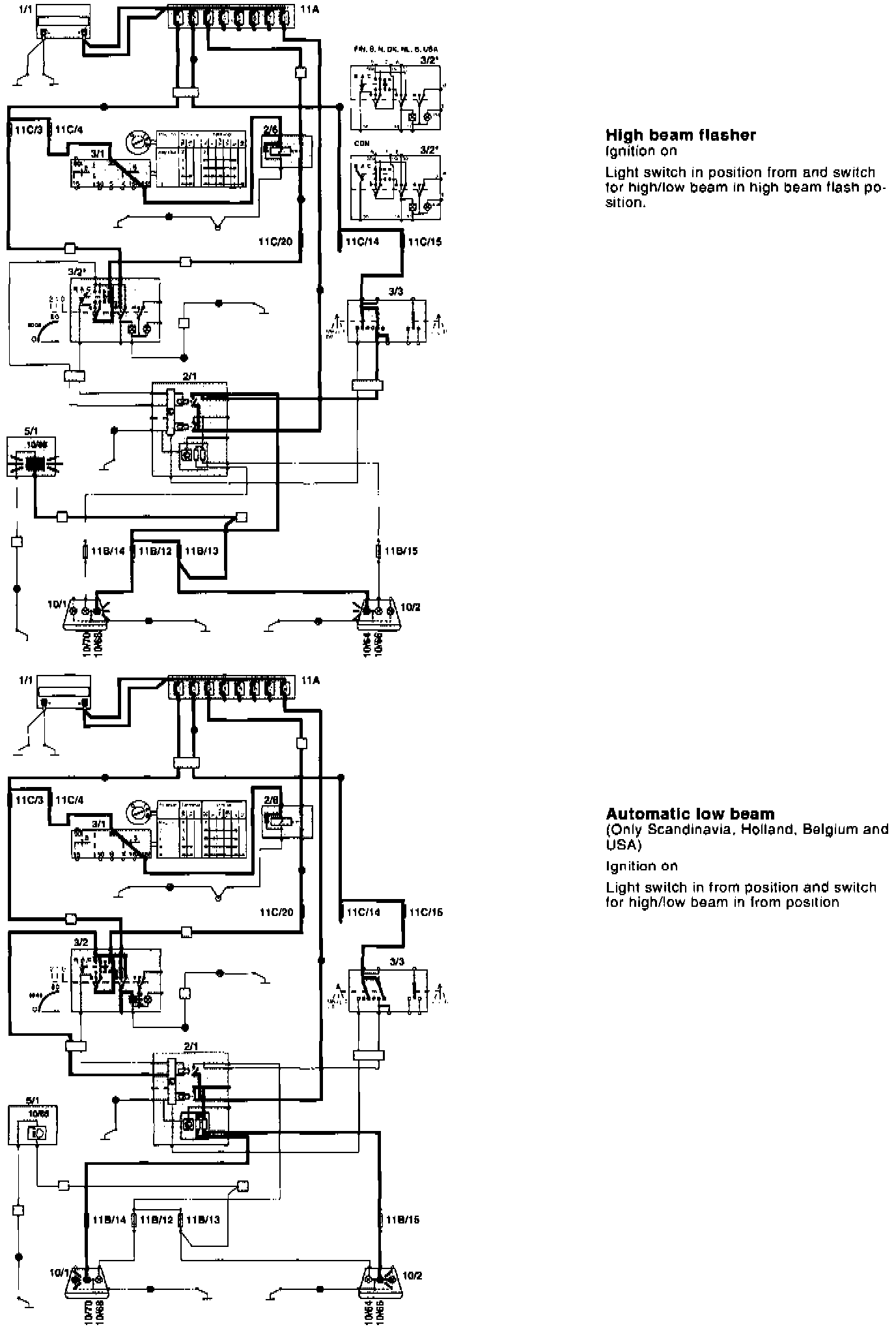

High and Low Beams Function Diagram

{׳k:
