Instrument Cluster / Carrier

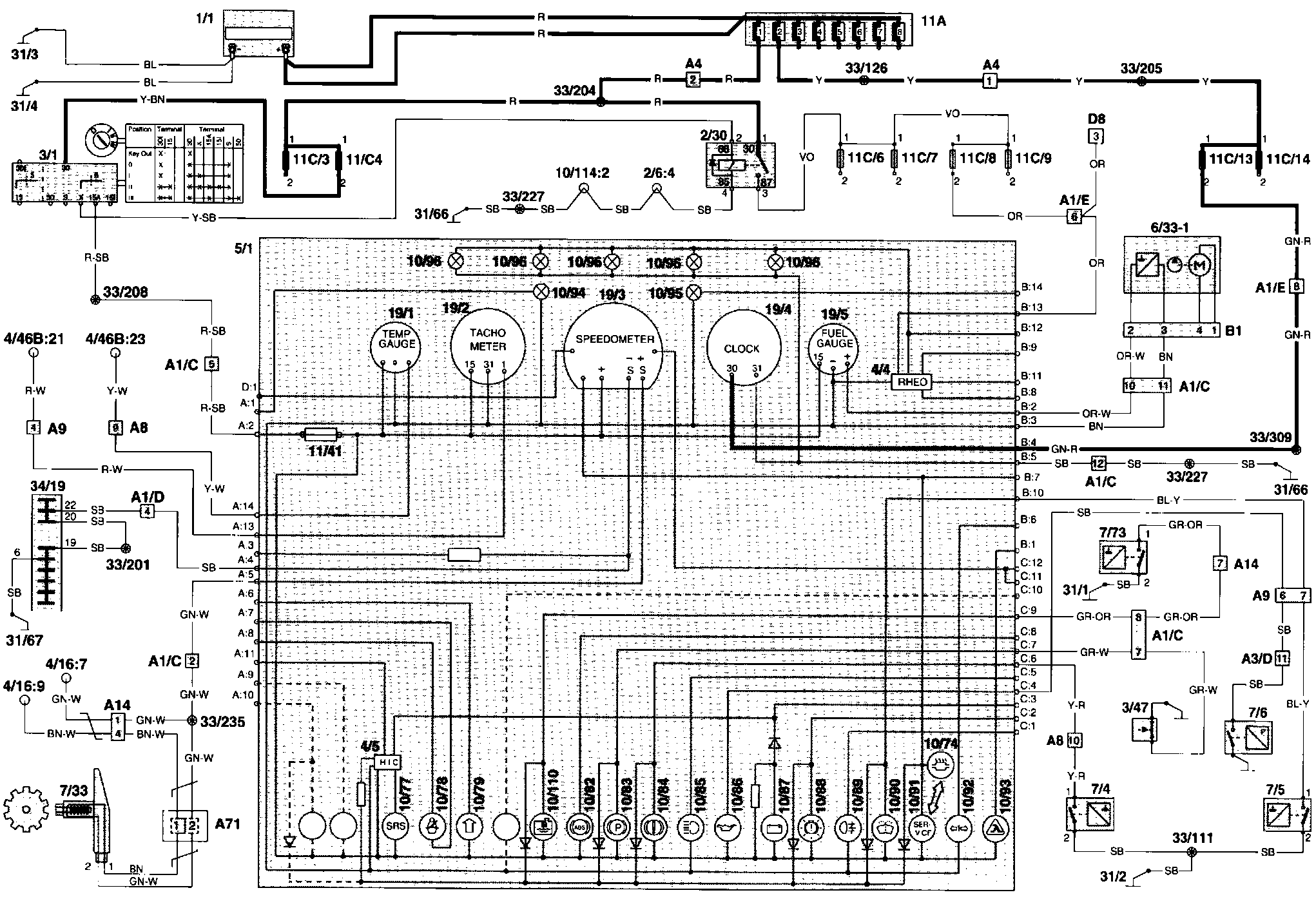

Wiring Diagram

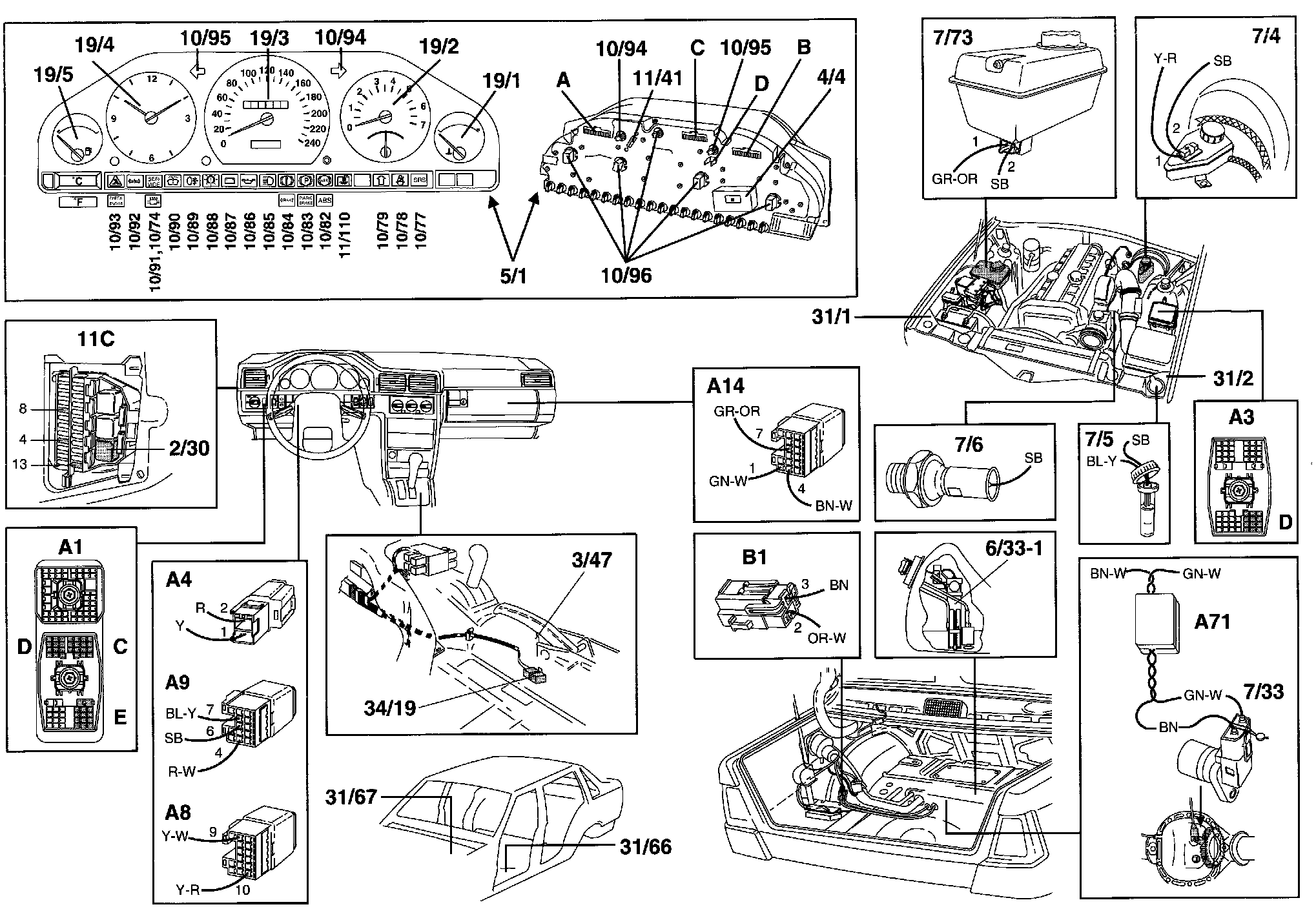

Component Location

Component I.D. List
A1 Multi-connector under dashboard at left A-post
A3 Multi-connector in relay/fusebox in engine compartment
A4 2-pin connector engine compartment harness - passenger compartment cable harness
A9 13-pin connector engine compartment harness - dashboard cable harness
A14 Connector 15-pin ABS harness - passenger compartment harness
A71 Connector 2-pin Passenger compartment harness - rear axle sensor harness
B1 Connector 4-pin passenger compartment harness - fuel tank unit
2/30 Overload relay, +X
3/47 Handbrake switch
4/4 Rheostat
5/1 Combined instrument panel
6/33-1 Fuel gauge sensor
7/4 Brake fluid level sensor
7/5 Washer fluid level sensor
7/6 Oil pressure switch
7/33 Speedometer pick-up and ABS Anti-lock braking system
7/73 Engine coolant level sensor
10/74 Indicator lamp exhaust temperature
10/77 Warning lamp, SRS
10/78 Seat belt indicator lamp
10/79 Shift indicator
10/82 Indicator lamp ABS
10/83 Indicator lamp handbrake
10/84 Brake warning indicator lamp
10/85 Indicator lamp high beam
10/86 Indicator lamp, oil pressure
10/87 Indicator lamp, charging
10/88 Bulb failure warning sensor indicator light
10/89 Indicator lamp, rear fog lights
10/90 Indicator lamp, washer fluid level
10/91 Service Reminder Lamp (SRL)
10/92 Indicator lamp, trailer
10/93 Indicator lamp, Check engine
10/94 Indicator lamp, right turn signal lamp
10/95 Indicator lamp left turn signal lamp
10/96 Instrument lighting
10/110 Indicator lamp, coolant level
11C/1-24 Fuses in fusebox in passenger compartment
11/41 Fuse combined instrument panel
19/1 Engine coolant temperature gauge
19/2 Tachometer
19/3 Speedometer
19/4 Clock
19/5 Fuel gauge
31/1 Ground terminal right front wing
31/2 Ground terminal left front wing
31/66 Ground point left seat support
31/67 Ground point right seat support
34/19 Terminal block 22-pin: by parking brake bracket

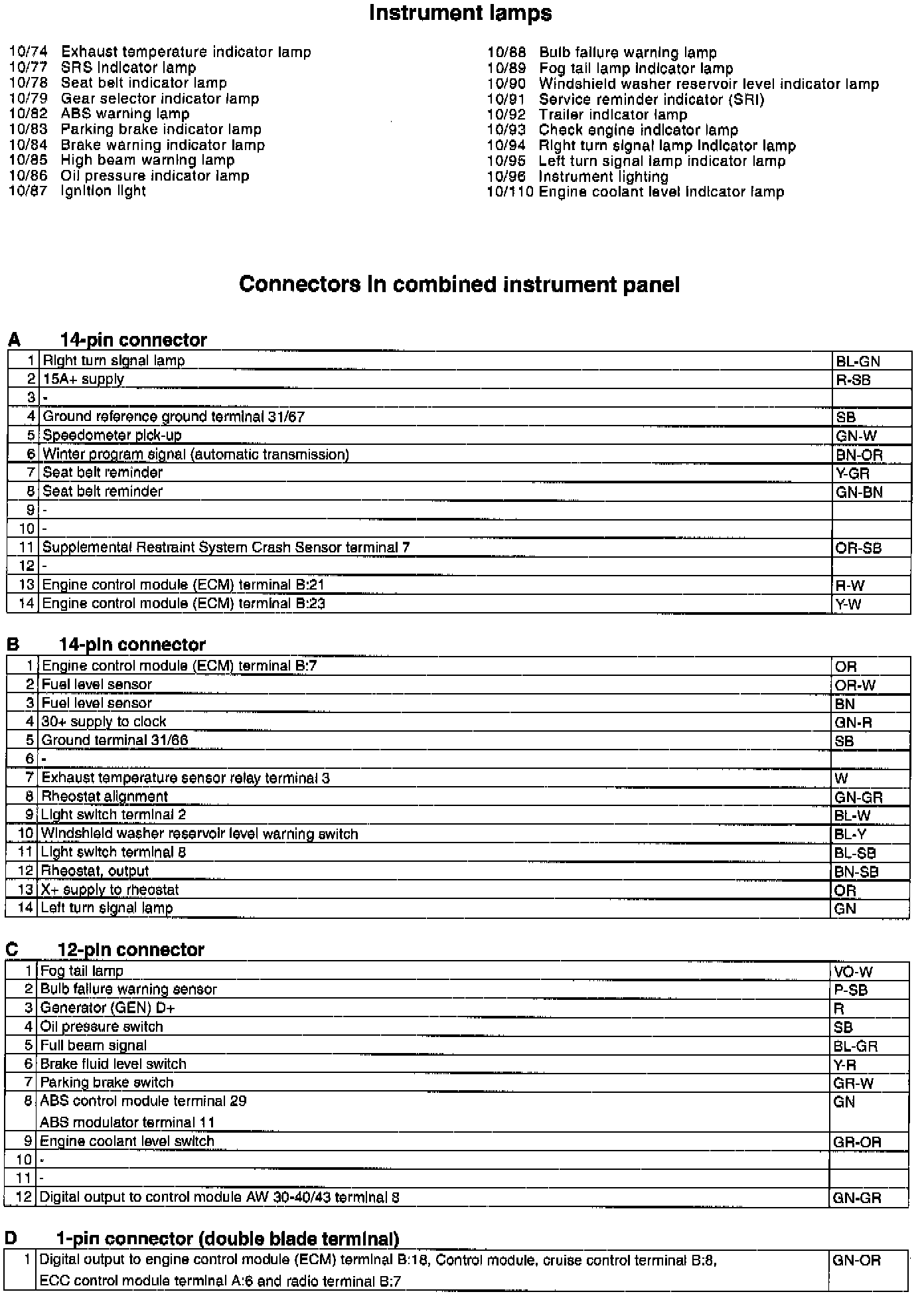

Component List







Component Location

Component I.D. List
10/74 Indicator lamp exhaust temperature
10/77 Warning lamp, SRS
10/78 Seat belt indicator lamp
10/79 Shift indicator
10/82 Indicator lamp ABS
10/83 Indicator lamp handbrake
10/84 Brake warning indicator lamp
10/85 Indicator lamp high beam
10/86 Indicator lamp, oil pressure
10/87 Indicator lamp, charging
10/88 Bulb failure warning sensor indicator light
10/89 Indicator lamp, rear fog lights
10/90 Indicator lamp, washer fluid level
10/91 Service Reminder Lamp (SRL)
10/92 Indicator lamp, trailer
10/93 Indicator lamp, Check engine
10/94 Indicator lamp, right turn signal lamp
10/95 Indicator lamp left turn signal lamp
10/110 Indicator lamp, coolant level
