Outside Temperature Display

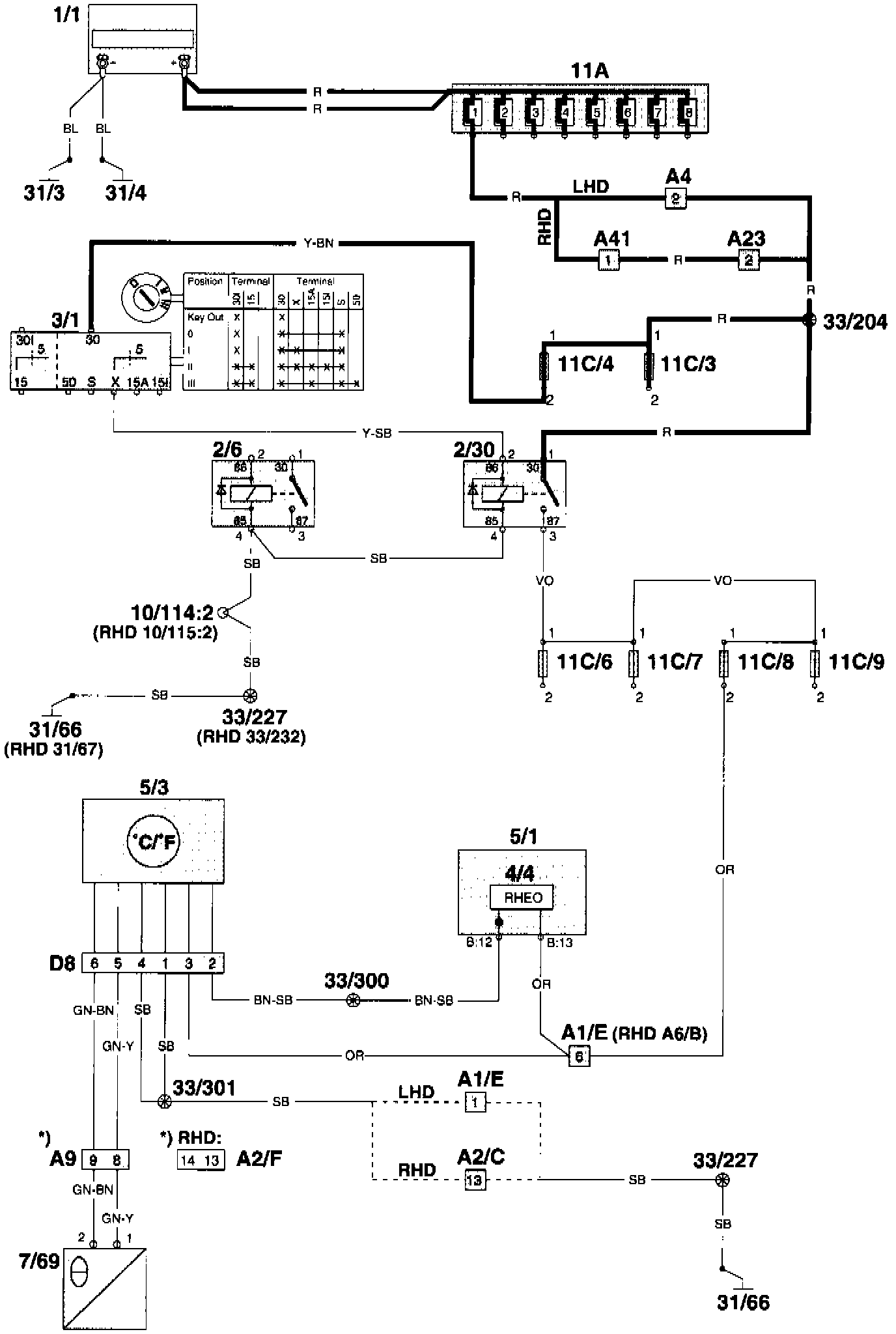

Wiring Diagram

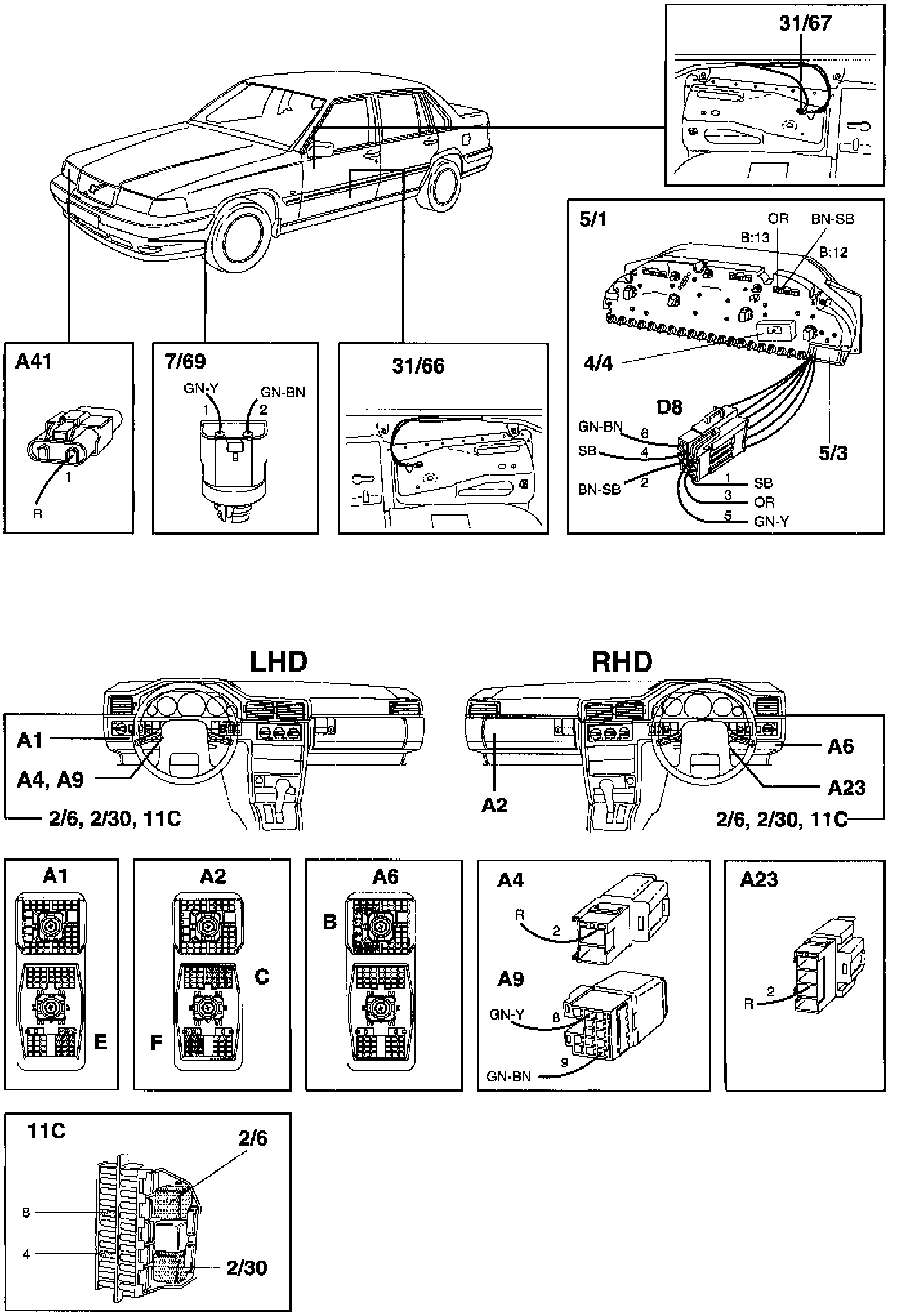

Component Location

Component I.D. List
A1 Multi-connector under dashboard at left A-post
A2 Multi connector under dashboard at left A pillar
A4 2-pin connector engine compartment harness - passenger compartment cable harness
A6 Multi-connector (under dashboard to right of steering column)
A9 13-pin connector engine compartment harness - dashboard cable harness
A23 4-pin connector Passenger compartment harness - Anti-lock braking system ABS harness
A41 2-pin connector Anti-lock braking system ABS harness - engine compartment harness
D8 Connector 8-pin Dashboard harness - outside temperature sensor
2/6 Overload relay +15I
2/30 Overload relay, +X
4/4 Rheostat
5/1 Combined instrument panel
5/3 Outside temperature gauge
7/69 Outside temperature sensor
11C/1-24 Fuses in fusebox in passenger compartment
31/66 Ground point left seat support
31/67 Ground point right seat support
