Lamp Out Sensor

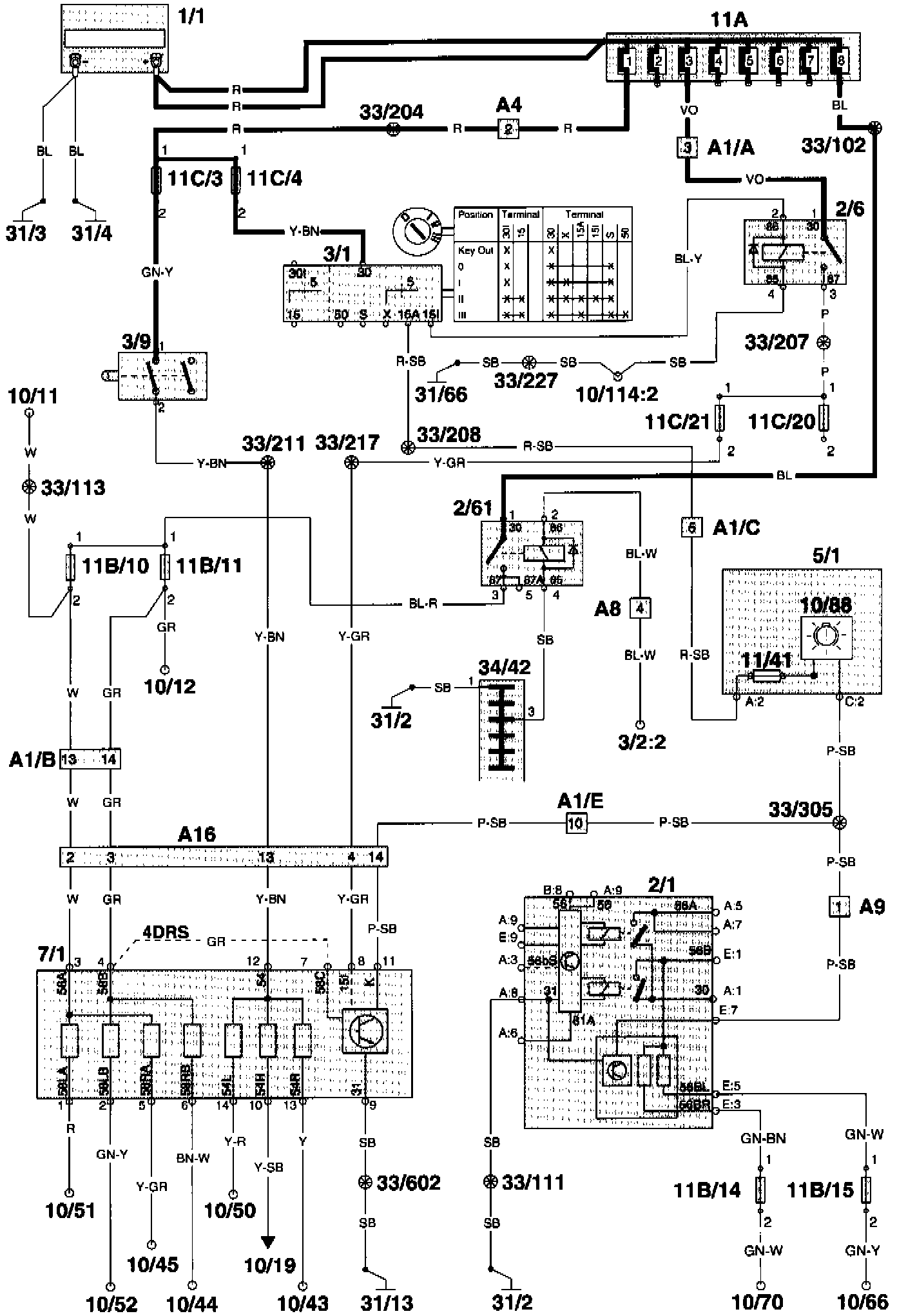

Wiring Diagram

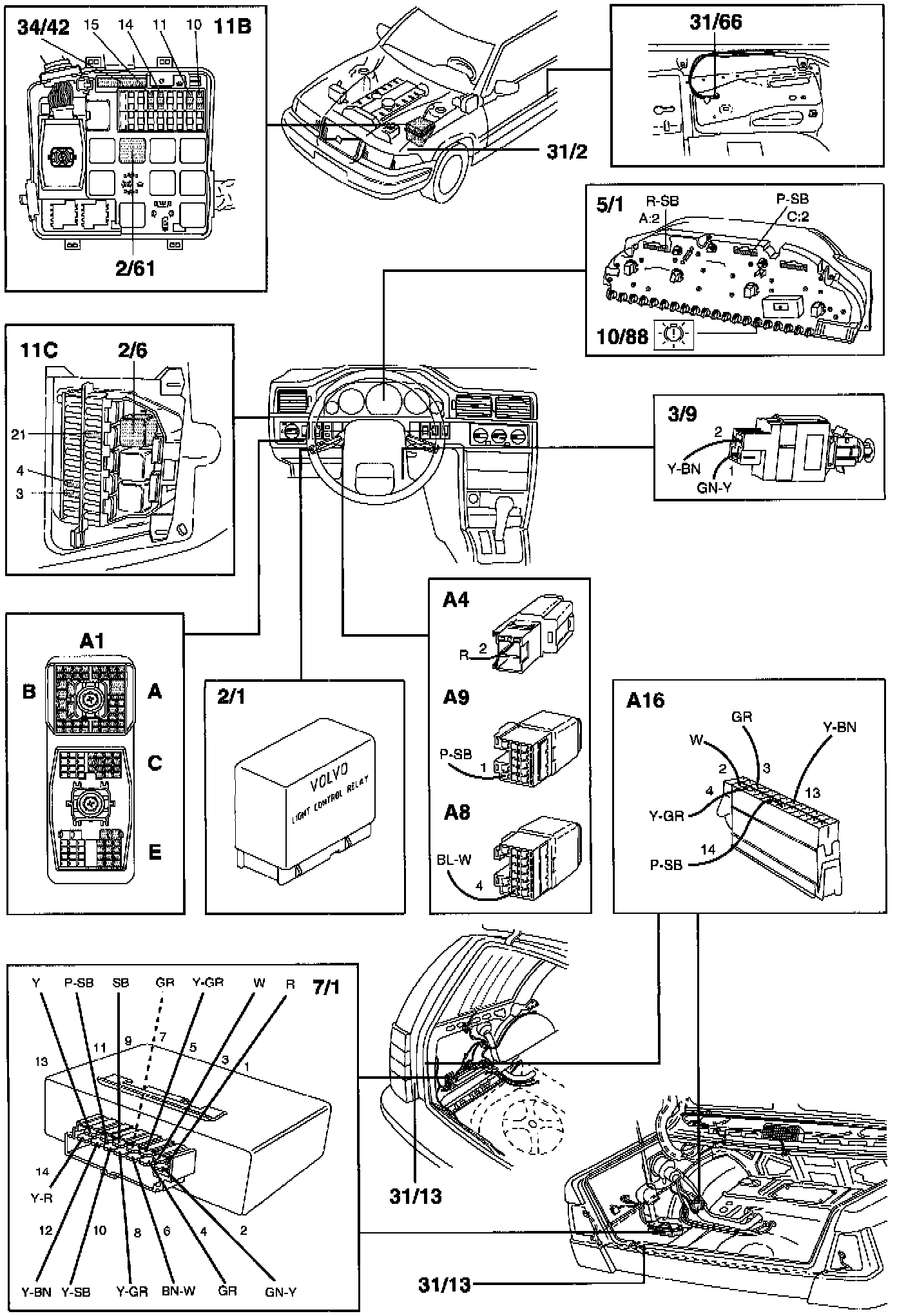

Component Location

Component I.D. List
A1 Multi-connector under dashboard at left A-post
A4 2-pin connector engine compartment harness - passenger compartment cable harness
A9 13-pin connector engine compartment harness - dashboard cable harness
A16 Connector 24-pin passenger compartment harness -cargo compartment harness
2/1 Main headlamp relay with bulb failure warning sensor
2/6 Overload relay +15I
2/61 Relay market/parking lights
3/9 Stop (brake) lamp switch
5/1 Combined instrument panel
7/1 Bulb failure warning sensor rear
10/88 Bulb failure warning sensor indicator light
11B/1-18 Fuses in relay/fusebox in engine compartment
11C/1-24 Fuses in fusebox in passenger compartment
31/2 Ground terminal left front wing
31/13 Ground terminal in cargo area
31/66 Ground point left seat support
34/42 Terminal block 22-pin: In relay/fusebox engine compartment
