Electrically Heated Seats

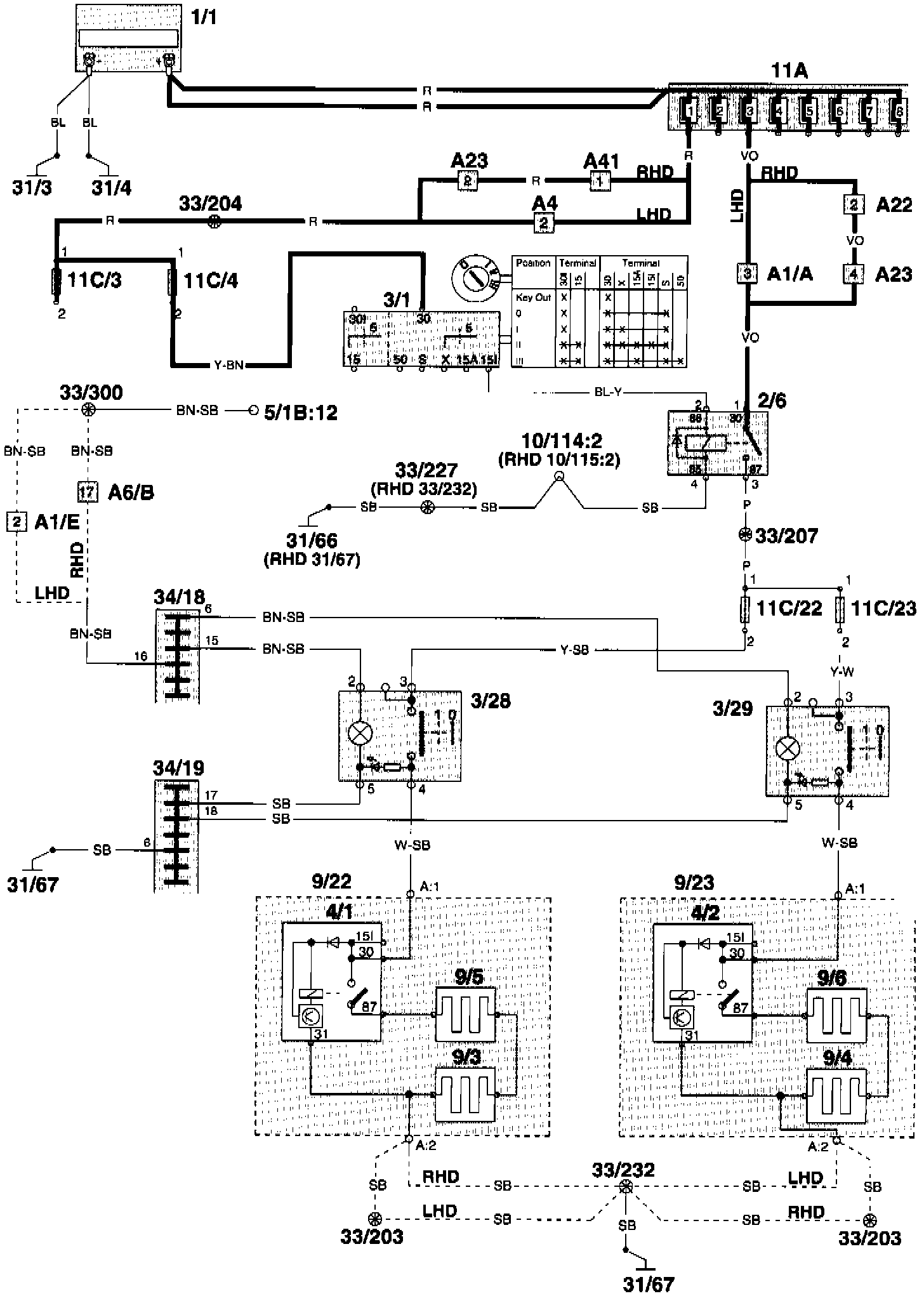

Wiring Diagram







Component Location

Component I.D. List
A1 Multi-connector under dashboard at left A-post
A4 2-pin connector engine compartment harness - passenger compartment cable harness
A6 Multi-connector (under dashboard to right of steering column)
A22 2-pin connector engine compartment harness - Anti-lock braking system ABS harness
A23 4-pin connector Passenger compartment harness - Anti-lock braking system ABS harness
A41 2-pin connector Anti-lock braking system ABS harness - engine compartment harness
2/6 Overload relay +15I
3/28 Heated seat switch left side
3/29 Heated seat switch right side
4/1 Overheating protection seat left side
4/2 Overheating protection seat right side
9/3 Heating pad backrest left side
9/4 Heating pad seatback right side
9/5 Heating pad, seat cushion left side
9/6 Heating pad, seat cushion right side
11C/1-24 Fuses in fusebox in passenger compartment
31/66 Ground point left seat support
31/67 Ground point right seat support
34/18 Terminal block 22-pin: in relay box passenger compartment
34/19 Terminal block 22-pin: by parking brake bracket
