Volvo
>>
1998
>>
S90 L6-2.9L VIN 96 B6304S
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>

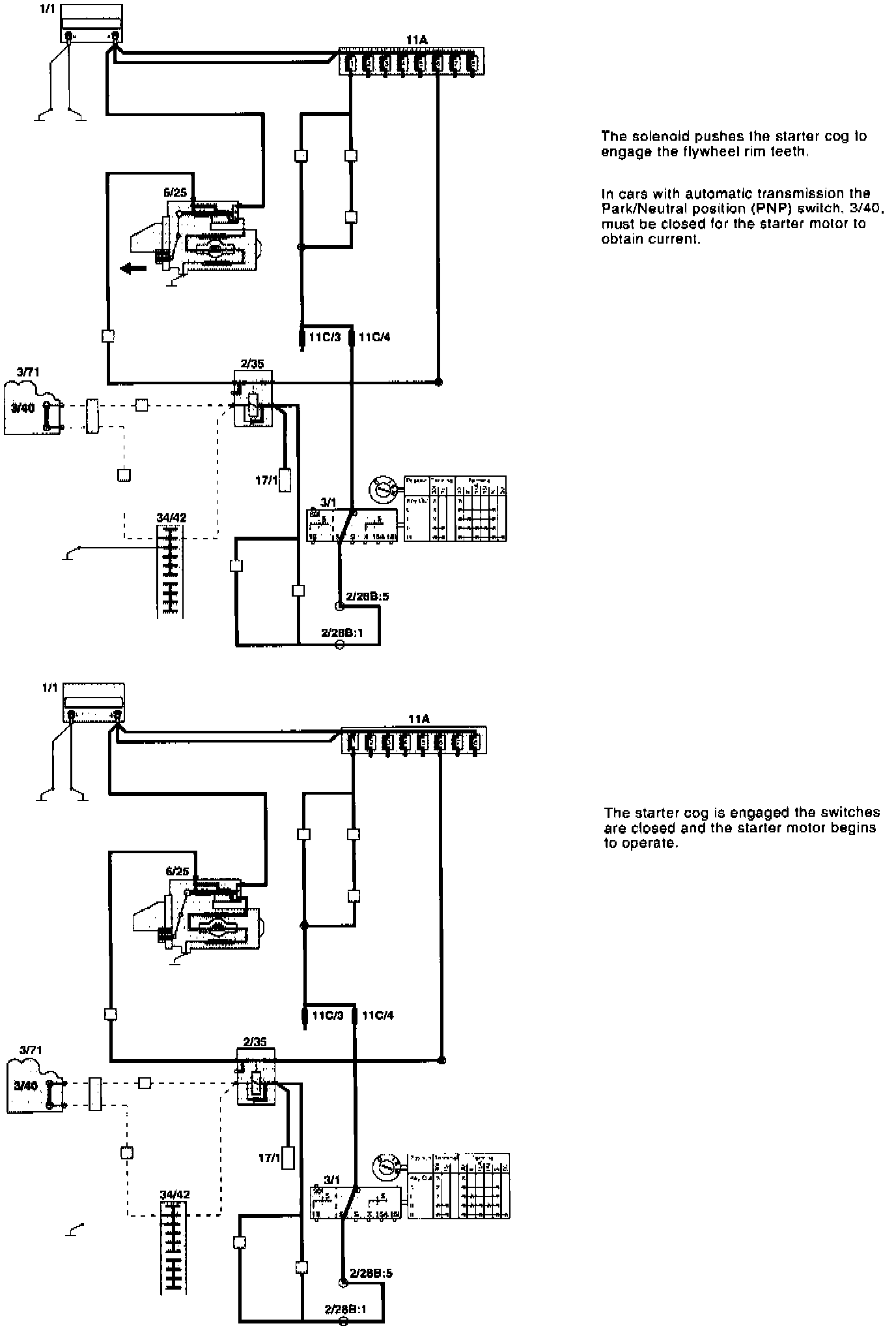

Starter System Function Diagram
Starter System Function Diagram
