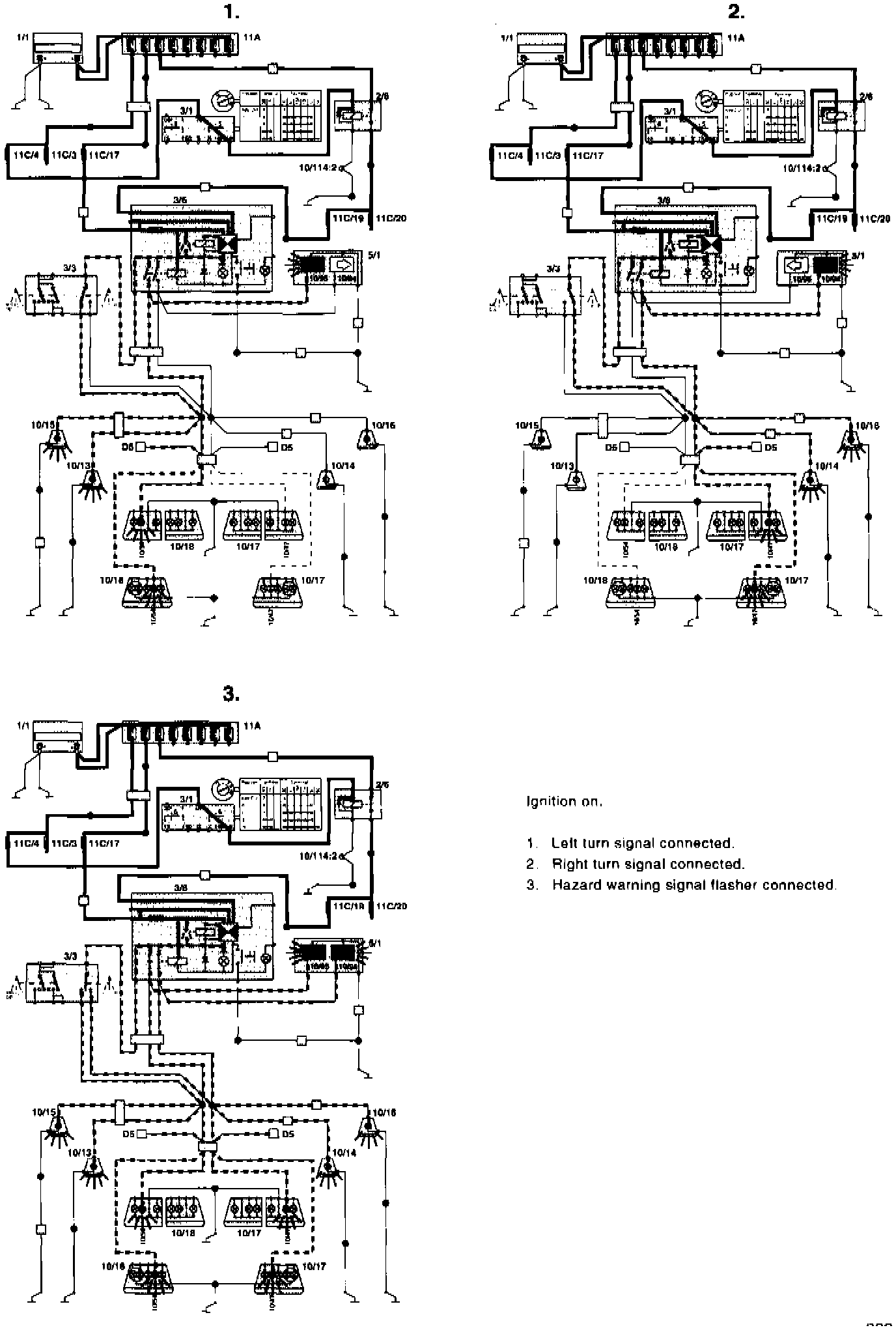

Turn Signal Lamp, Hazard Warning Flasher Function Diagram
Turn Signal Lamp, Hazard Warning Flasher Function Diagram
