Power Windows

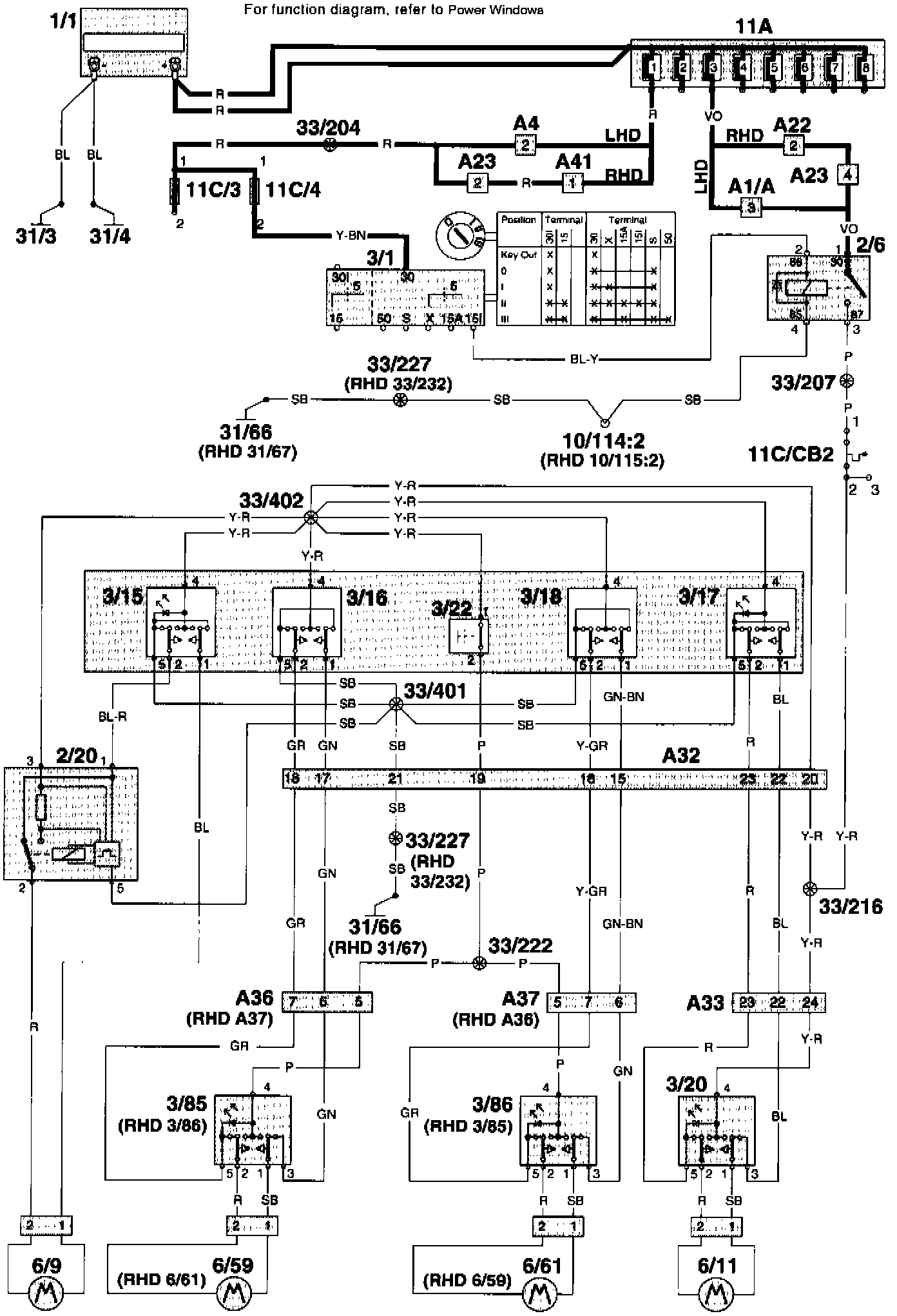

Wiring Diagram

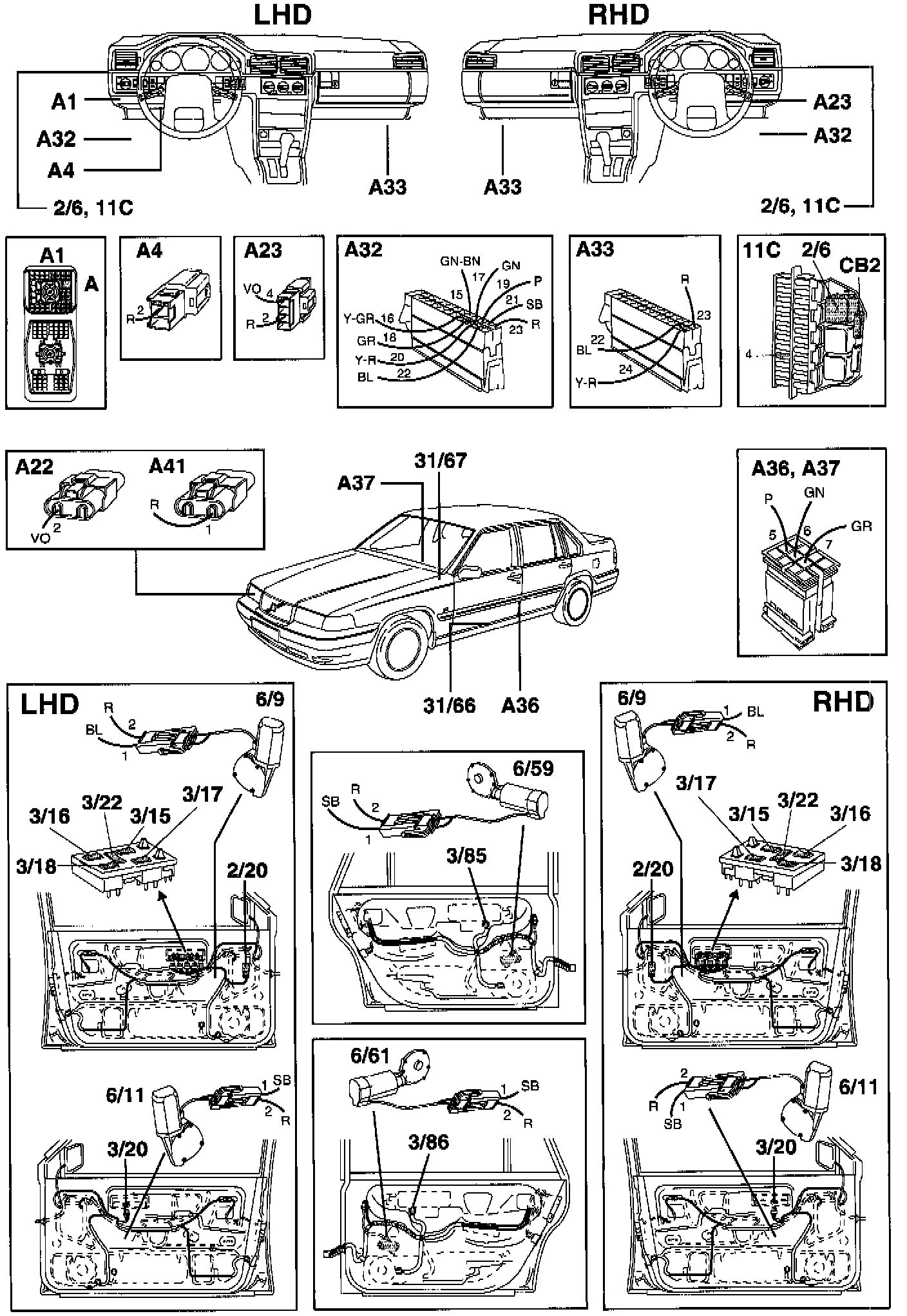

Component Location

Component I.D. List
A1 Multi-connector under dashboard at left A-post
A4 2-pin connector engine compartment harness - passenger compartment cable harness
A22 2-pin connector engine compartment harness - Anti-lock braking system ABS harness
A23 4-pin connector Passenger compartment harness - Anti-lock braking system ABS harness
A32 Connector 24-pin Passenger compartment harness - driver's door harness
A33 Connector 24-pin Passenger compartment harness - front passenger door harness
A36 Connector 11-pin Passenger compartment harness - left rear door harness
A37 Connector 11-pin passenger compartment harness - right rear door harness
A41 2-pin connector Anti-lock braking system ABS harness - engine compartment harness
2/6 Overload relay +15I
2/20 Relay auto-down power window
3/15 Power window switch driver's door for driver's door
3/16 Power window switch driver's door for driver's side rear door
3/17 Power window switch driver's door for front passenger side door
3/18 Power window switch driver's door for rear passenger side door
3/20 Power window switch front passenger side door
3/22 Contact breaker for rear power windows
3/85 Power window switch left rear door
3/86 Power window switch right rear door
6/9 Power window motor driver's door
6/11 Power window motor passenger side front
6/59 Power window motor left rear
6/61 Power window motor right rear
11C/CB2 Automatic fuse in fusebox in the car
31/66 Ground point left seat support
31/67 Ground point right seat support
