Home >> Volvo >> 1998 >> S90 L6-2.9L VIN 96 B6304S >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> Power Windows Function Diagram

Power Windows Function Diagram

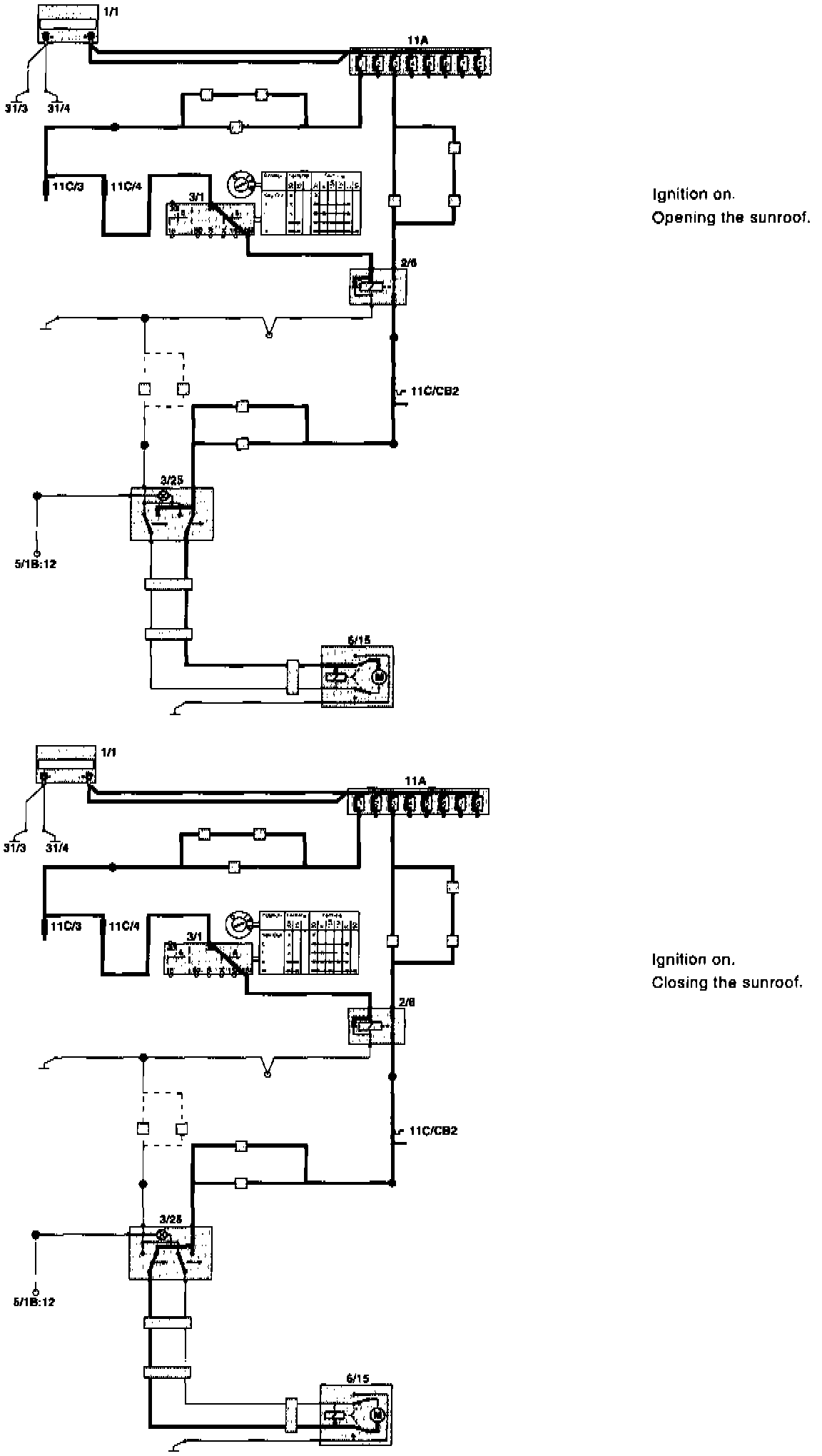

Part 1 Of 5:

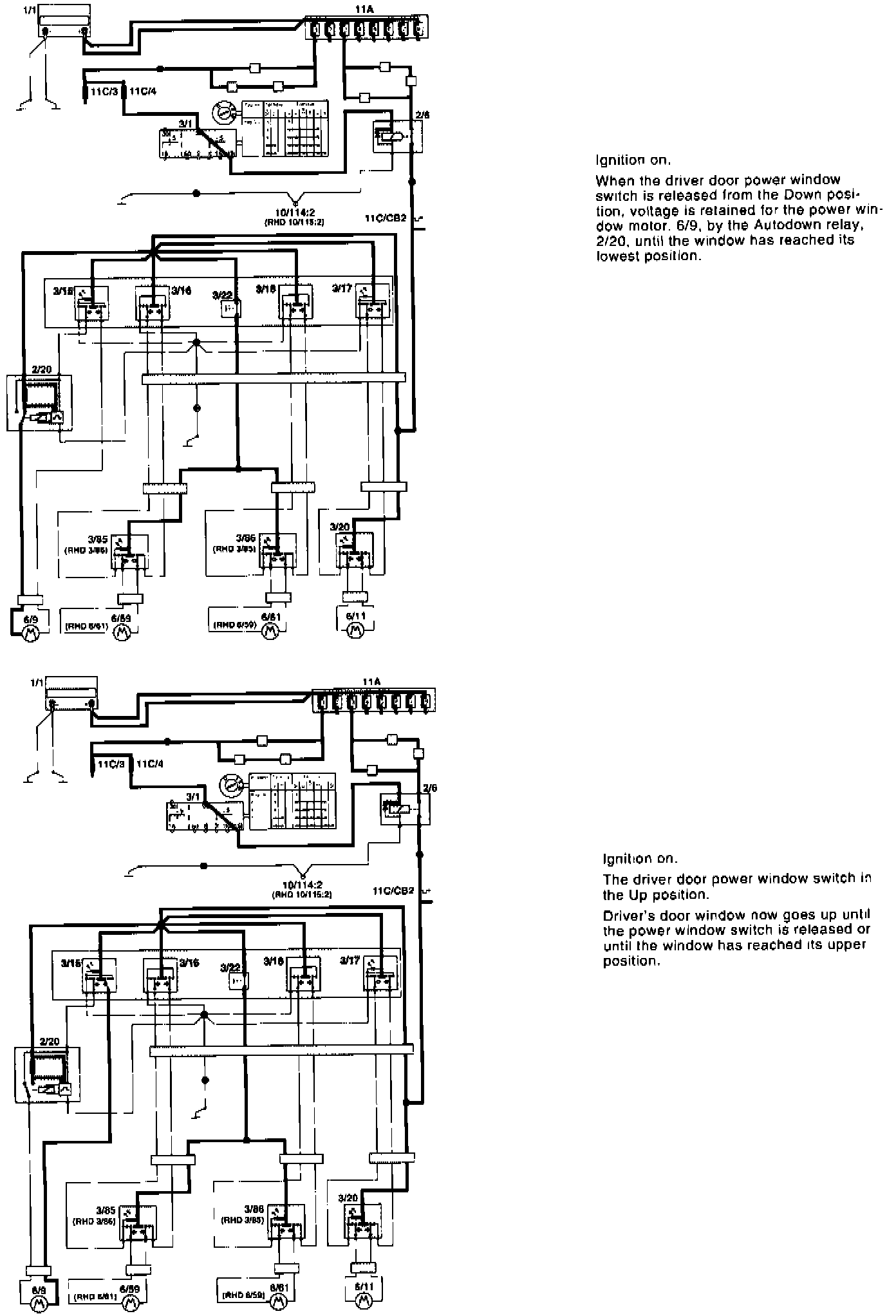

Part 2 Of 5:






Part 3 Of 5:






Part 4 Of 5:






Part 5 Of 5:
