Volvo
>>
1998
>>
S90 L6-2.9L VIN 96 B6304S
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>

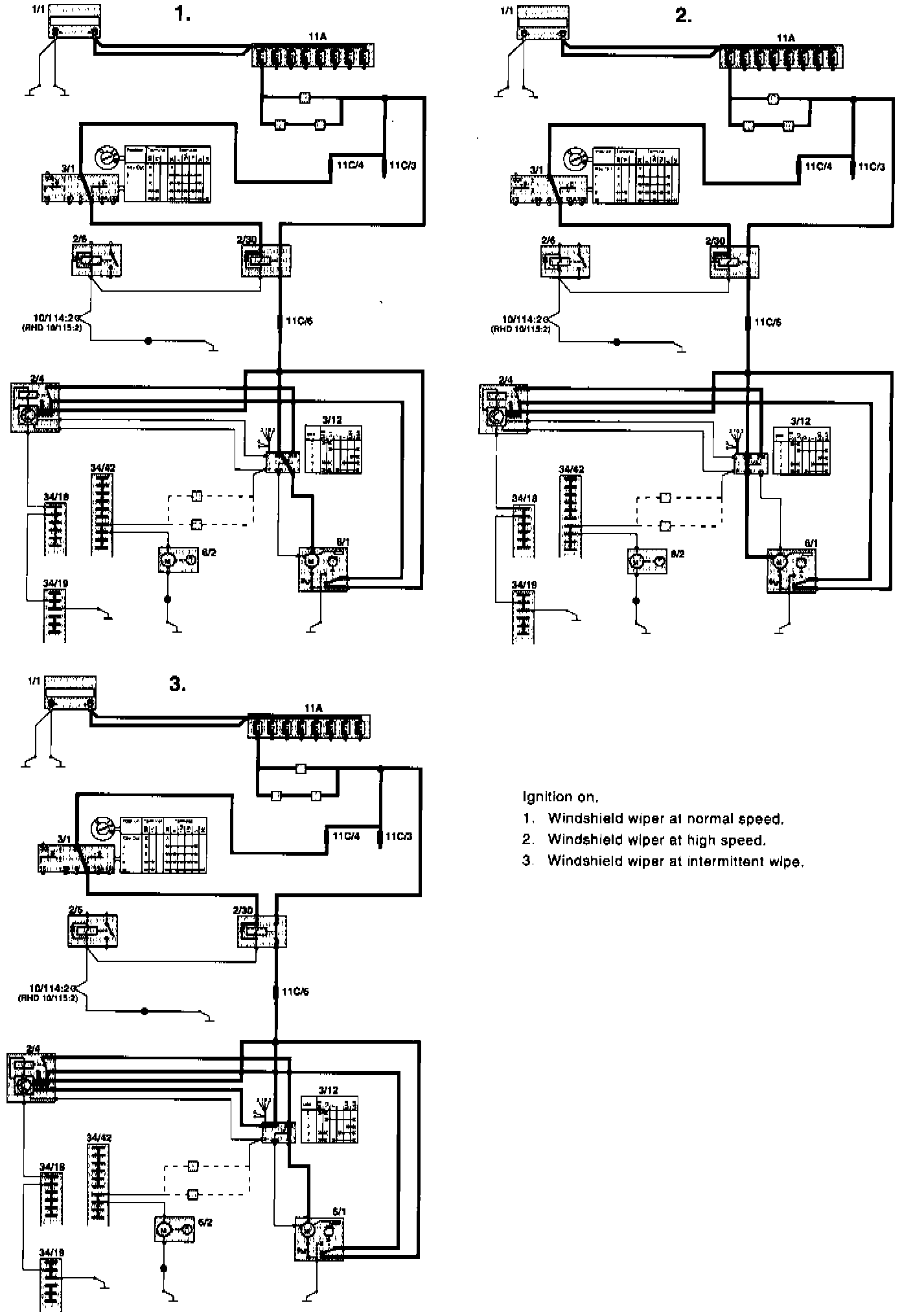

Windshield Wash/Wipe Function Diagram
Windshield Wash/Wipe Function Diagram
