Windshield Wash/Wipe Rear Windshield

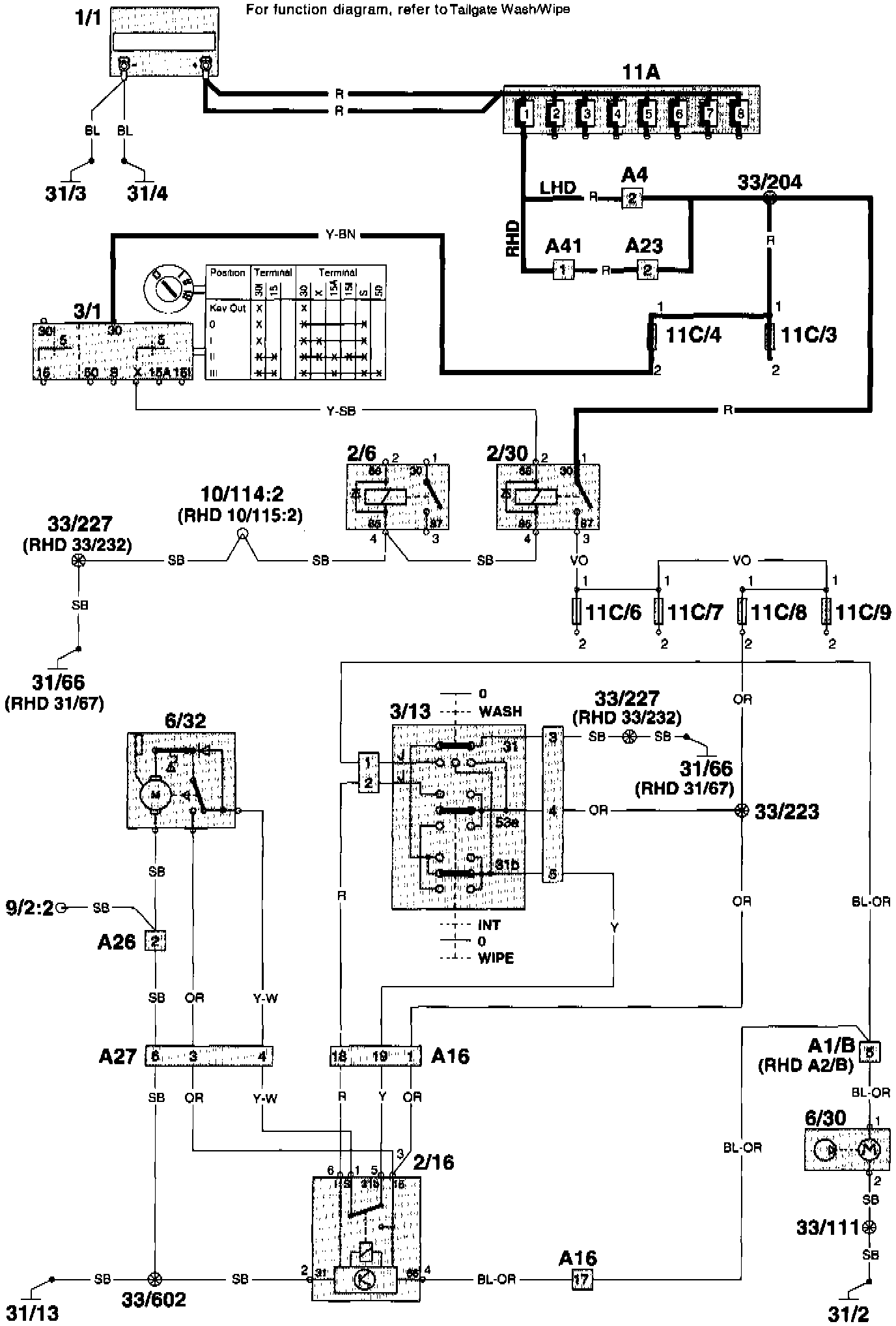

Wiring Diagram

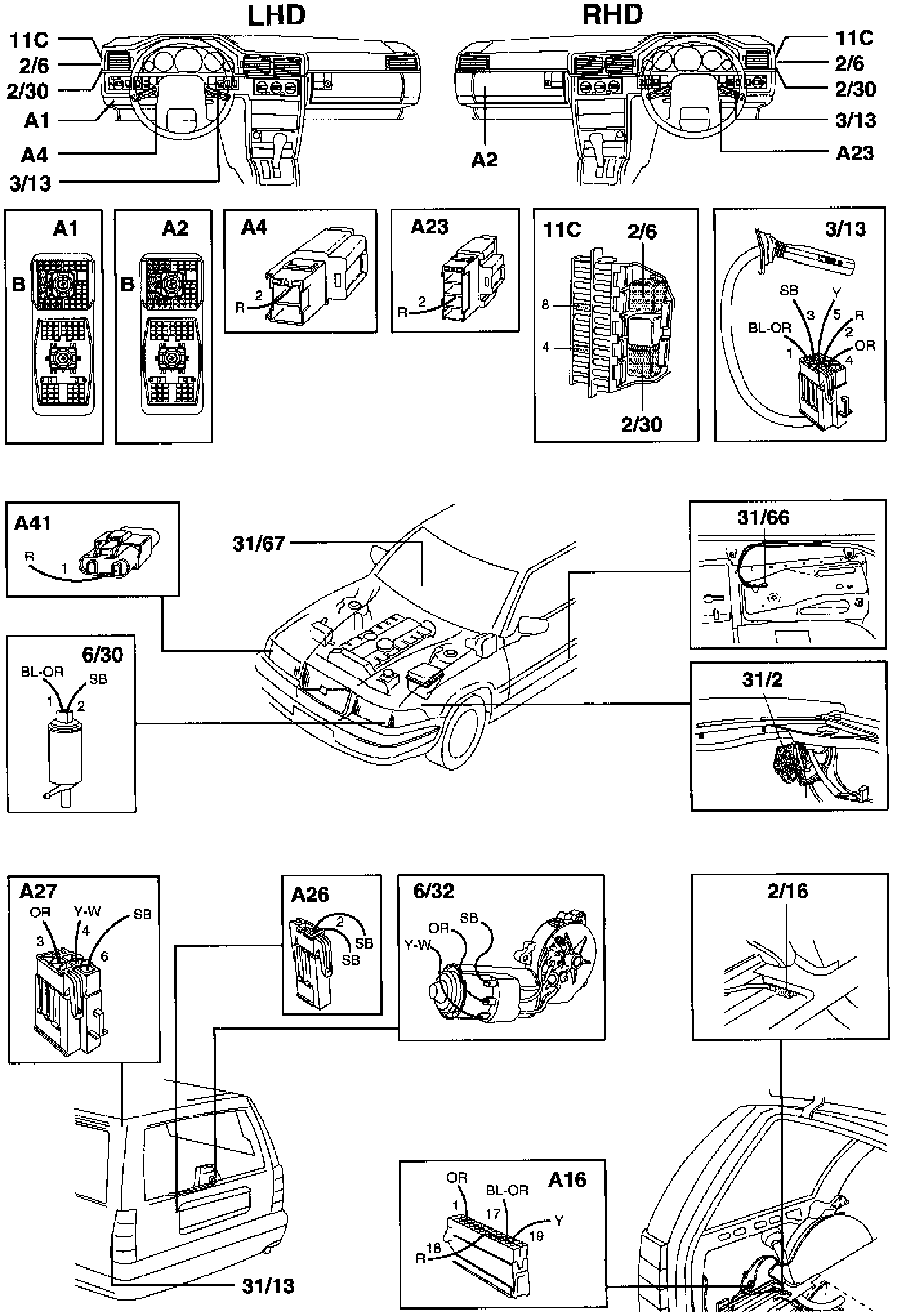

Component Location

Component I.D. List
A1 Multi-connector under dashboard at left A-post
A2 Multi connector under dashboard at left A pillar
A4 2-pin connector engine compartment harness - passenger compartment cable harness
A16 Connector 24-pin passenger compartment harness -cargo compartment harness
A23 4-pin connector Passenger compartment harness - Anti-lock braking system ABS harness
A26 Connector 2-pin High-level brake light harness - tailgate harness
A27 Connector 2-pin rear harness - tailgate harness
A41 2-pin connector Anti-lock braking system ABS harness - engine compartment harness
2/6 Overload relay +15I
2/16 Intermittent tailgate wiper relay
2/30 Overload relay, +X
3/13 Tailgate wipe/-washer switch
6/30 Washer motor rear windshield
6/32 Tailgate wiper motor
11C/1-24 Fuses in fusebox in passenger compartment
31/2 Ground terminal left front wing
31/13 Ground terminal in cargo area
31/66 Ground point left seat support
31/67 Ground point right seat support
