Cooling System: Locations

COOLANT TEMPRTATURE SENSORS

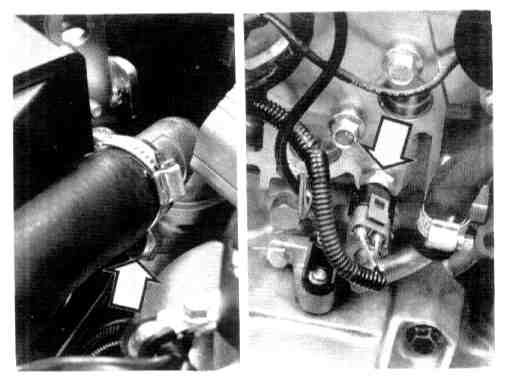

1. Location
- Sensors are located in rear of cylinder head and in thermostat housing.
- Cylinder head sensor supplies signal to ignition and fuel injection systems.
- Thermostat housing sensor is connected to temperature gauge in combined instrument.
