Making a Compressor Oil Dipstick
Making a Compressor Oil Dipstick

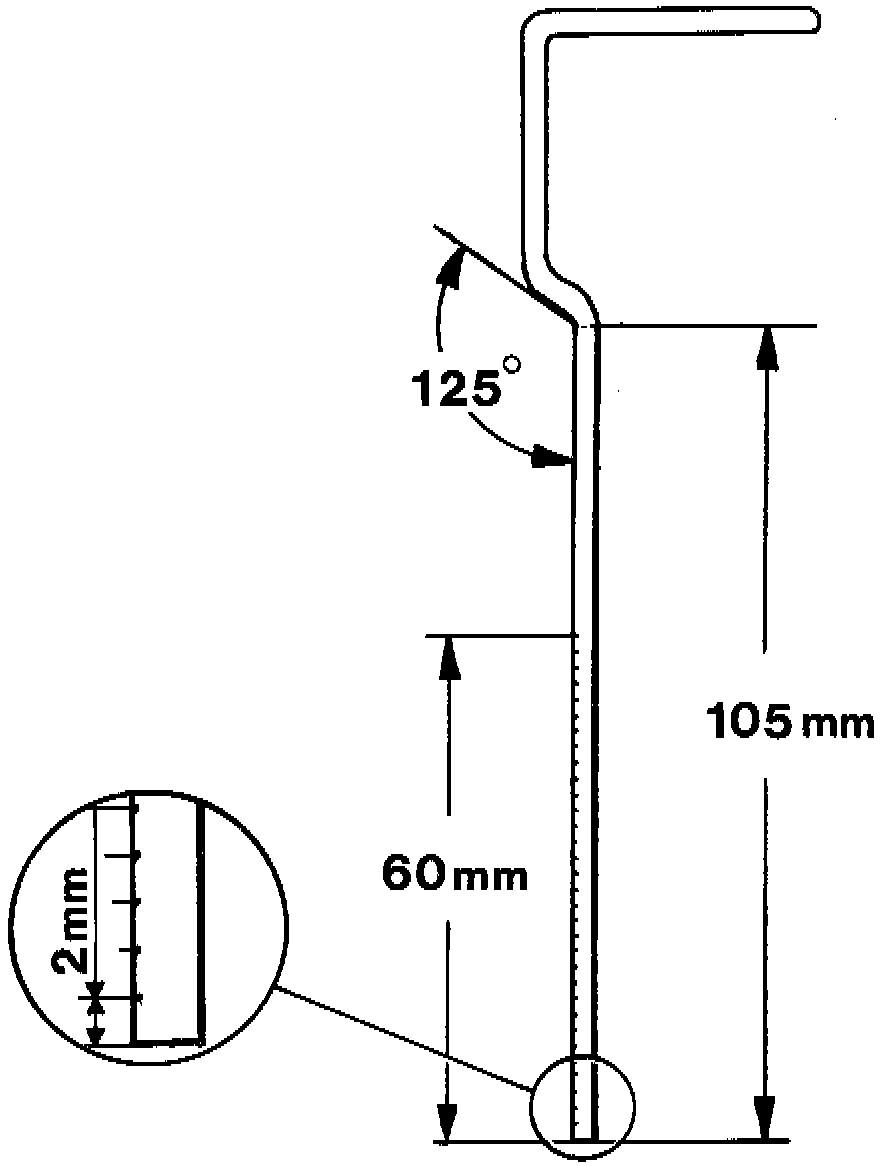

A compressor oil dipstick is made with the dimensions shown in illustration.
