Cigarette Lighter: Service and Repair

Cigarette Lighter Replacement




- Disconnect battery negative lead.
- Pull out cigarette lighter.
- Remove ashtray.

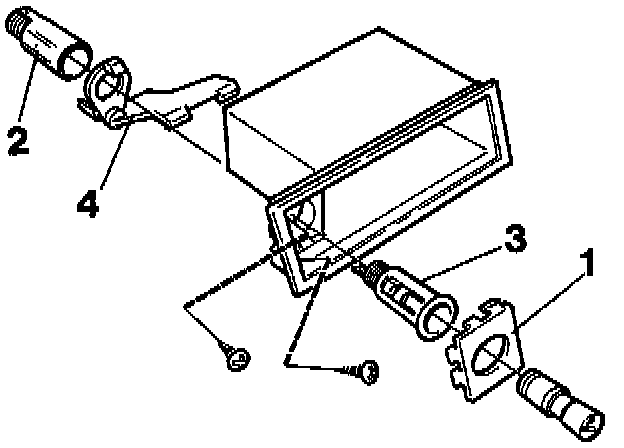

- Remove cover panel (1).
- Unscrew casing retaining screws.
- Remove casing.
- Disconnect wiring from the cigarette lighter.
- Remove inner sleeve (3) and bracket (4).
- Fit new unit.
- Reassemble in reverse order.
Make sure that bracket (4) is correctly positioned.
Hook on right side of casing before tightening screws.
- Test.
