Fuel Gauge: Service and Repair

Fuel Gauge Replacement

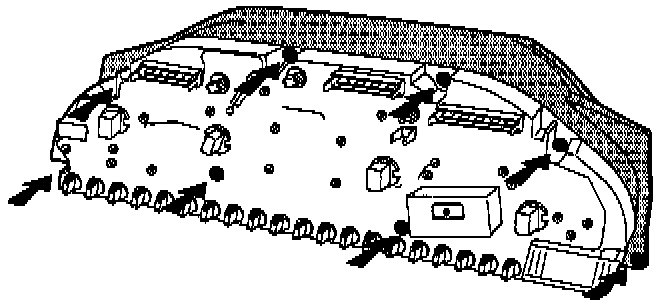

- Remove backing plate from housing by removing the 8 screws.
- Work on a clean bench. Do not touch either pointers or dials with the fingers. Blow any dust away with dry compressed air.




- Remove the 3 screws retaining the gauge.
- Fit new unit.
- Reassemble in reverse order.
